用于制造多层多孔增塑聚氯乙烯凝胶人工肌肉的碳纳米管掺杂3D打印硅胶电极。

Carbon Nanotube-Doped 3D-Printed Silicone Electrode for Manufacturing Multilayer Porous Plasticized Polyvinyl Chloride Gel Artificial Muscles.

作者信息

Luo Bin, Lu Hanjing, Zhong Yiding, Zhu Kejun, Wang Yanjie

机构信息

School of Mechanics and Materials, Hohai University, Nanjing 211100, China.

School of Mechanical and Energy Engineering, Shaoyang University, Shaoyang 422000, China.

出版信息

Gels. 2024 Jun 24;10(7):416. doi: 10.3390/gels10070416.

DOI:10.3390/gels10070416
PMID:39057440
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11275437/
Abstract

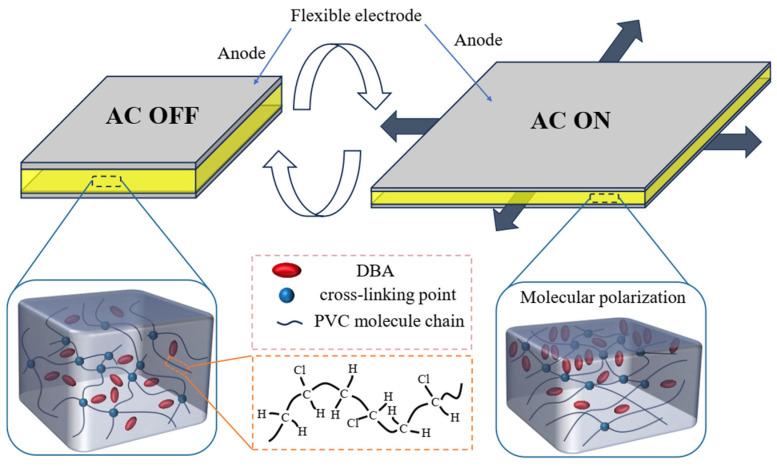

Plasticized polyvinyl chloride (PVC) gel has large deformation under an applied external electrical field and high driving stability in air and is a candidate artificial muscle material for manufacturing a flexible actuator. A porous PVC gel actuator consists of a mesh positive pole, a planar negative pole, and a PVC gel core layer. The current casting method is only suitable for manufacturing simple 2D structures, and it is difficult to produce multilayer porous structures. This study investigated the feasibility of a 3D-printed carbon nanotube-doped silicone electrode for manufacturing multilayer porous PVC gel artificial muscle. Carbon nanotube-doped silicone (CNT-PDMS) composite inks were developed for printing electrode layers of PVC gel artificial muscles. The parameters for the printing plane and mesh electrodes were explored theoretically and experimentally. We produced a CNT-PDMS electrode and PVC gel via integrated printing to manufacture multilayer porous PVC artificial muscle and verified its good performance.

摘要

增塑聚氯乙烯（PVC）凝胶在外部施加电场下具有较大变形，且在空气中具有较高的驱动稳定性，是制造柔性致动器的候选人工肌肉材料。多孔PVC凝胶致动器由网状正极、平面负极和PVC凝胶芯层组成。目前的浇铸方法仅适用于制造简单的二维结构，难以生产多层多孔结构。本研究探讨了3D打印碳纳米管掺杂硅电极用于制造多层多孔PVC凝胶人工肌肉的可行性。开发了碳纳米管掺杂硅（CNT-PDMS）复合油墨用于打印PVC凝胶人工肌肉的电极层。从理论和实验上探索了打印平面电极和网状电极的参数。我们通过集成打印制备了CNT-PDMS电极和PVC凝胶，以制造多层多孔PVC人工肌肉，并验证了其良好性能。
