Research on positioning control strategy of hydraulic support pushing system based on multistage speed control valve.

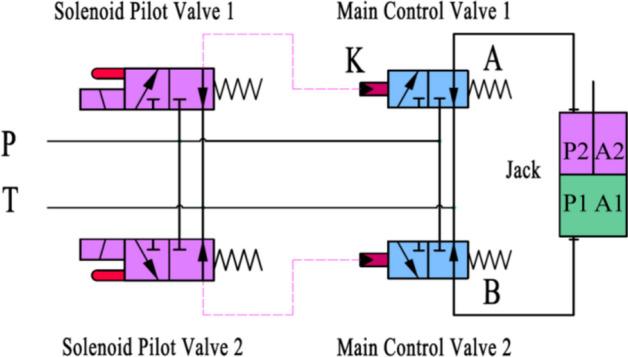

The precise position control of the hydraulic support pushing system in the coal mining face is a key technical support for intelligent coal mining. At present, the hydraulic support pushing system uses the electro-hydraulic directional valve as the control element. However, the electro-hydraulic directional valve has problems such as discrete input values, low switching frequency, delay, inability to adjust flow, and large flow fluctuations during the switching process, which results in relatively low positioning control accuracy of the hydraulic support pushing system. Therefore, this study introduces a multi-stage speed control valve that is suitable for underground coal mine conditions and can achieve flow regulation. At the same time, a segmented control strategy combining Bang-Bang control and online predictive control is proposed. Bang-bang control is used for fast propulsion with large flow rate, large range, and short time. Online predictive control method is used to achieve precise positioning control with small flow rate and small range, thereby solving the problem of low positioning control accuracy caused by the imperfect characteristics of electro-hydraulic directional valves. Finally, this study verified the effectiveness of the proposed scheme through simulation and experiments. The results showed that compared with existing logic positioning control methods based on electro-hydraulic directional valves, the proposed scheme can improve the accuracy of single cylinder positioning control from 62 mm to within 10 mm.
