Demonstrating the Efficacy of Dual Energy Computer Tomography with Gemstone Spectral Imaging Software to Determine Mixed and Single Composition ex vivo Urolithiasis.

OBJECTIVE

To assess the capability of determining the mixed chemical composition of urinary stones using spectral imaging properties of Dual Energy Computed Tomography (DECT) Gemstone Spectral Imaging (GSI) software.

MATERIAL AND METHODS

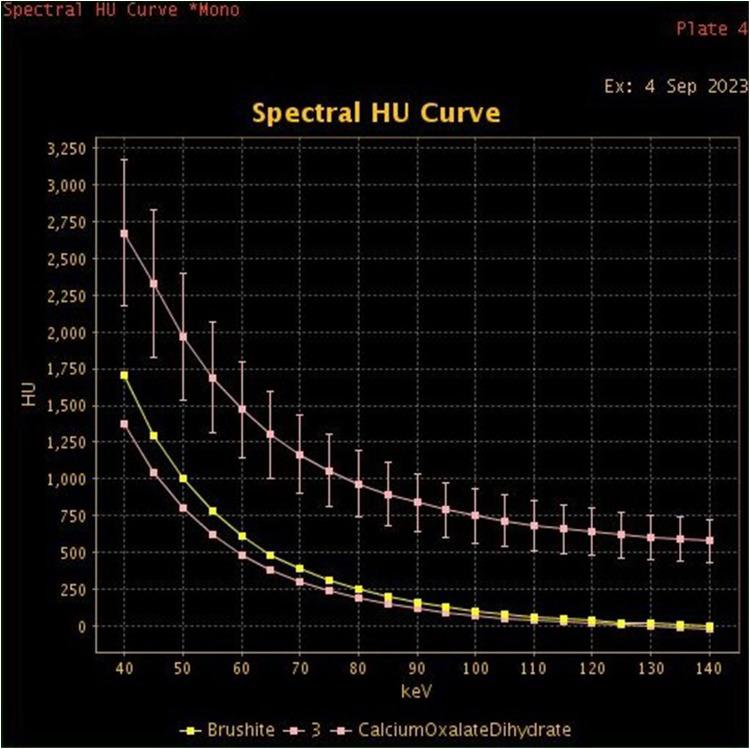

Twenty-six single and 24 mixed composition ex vivo urinary stones with known chemical composition determined by Fourier-transform infrared spectroscopy (FTIR) prior to this project were scanned with DECT imaging and GSI in vitro. The major components of the stones included Uric Acid (UA), Calcium Oxalate (CaOx), Calcium Phosphate (CaP), Magnesium Ammonium Phosphate (MAP), and Cystine (Cys). A histogram to display the distribution of the effective atomic number (Z-eff) of each pixel of the tested area, spectral curve (40-140 keV, with 10 keV interval) and Hounsfield Units (HU) of each stone scanned was provided with analysis of monochromatic images at 140 keV in the axial plane.

RESULTS

The overall pooled sensitivity, specificity, and accuracy of DECT for identifying major stone composition were 0.802, 0.831, and 0.807, respectively, with a 95% confidence interval. Accuracy was 100% for identifying UA and Cys stones.

CONCLUSION

DECT is a superior imaging modality when compared to low dose computed tomography kidney ureter bladder scans. It allows for improved characterization of major components of urinary stones, in an accurate, non-invasive approach to pre-treatment. This can translate to urologists having greater confidence in determining patient suitability for medical or surgical management of their renal stones, in clinical practice.
