Study on the Influence of Thermoplastic Microcapsules on the Sulfate Resistance and Self-Healing Performance of Limestone Calcined Clay Cement Concrete.

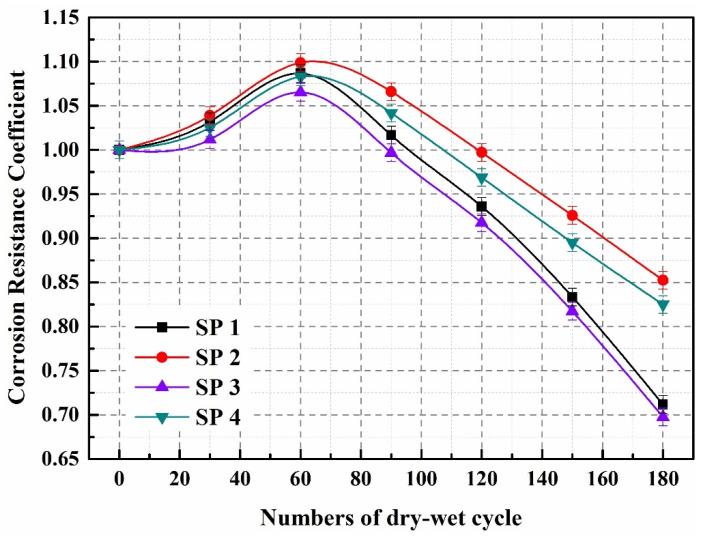

Limestone calcined clay cement (LC3), enhanced through reactions with volcanic ash and the interaction between limestone and clay, significantly improves the performance of cementitious materials. It has the potential to cut CO emissions by up to 30% and energy consumption in cement manufacture by 15% to 20%, providing a promising prospect for the large-scale production of low-carbon cement with a lower environmental effect. To effectively manufacture LC3 concrete, this study utilized limestone (15%), calcined clay (30%), and gypsum (5%) as supplementary cementitious materials (SCMs), replacing 50% of ordinary Portland cement (OPC). However, in regions abundant in sulfate, sulfate attack can cause interior cracking of concrete, reducing the longevity of the building. To address this issue, microcapsules containing microcrystalline wax, ceresine wax, and nano-CaCO encapsulated in epoxy resin were prepared and successfully incorporated into LC3 concrete. Sulfate resistance tests were conducted through sulfate dry-wet cycles, comparing samples with and without microcapsules. The findings revealed that the initial mechanical and permeability properties of LC3 concrete did not significantly differ from OPC concrete. LC3 concrete with added microcapsules (SP4) exhibited enhanced resistance to sulfate attack, reducing mass loss and compressive strength degradation. SEM images displayed a mesh-like structure of repair products in SP4. After 14 days of self-repair, SP4 exhibited a 44.2% harmful pore ratio, 98.1% compressive strength retention, 88.7% chloride ion diffusion coefficient retention, 91.12 mV maximum amplitude, and 9.14 mV maximum frequency amplitude. The experimental results indicate that the presence of microcapsules enhances the sulfate attack self-healing performance of LC3 concrete.
