Graduate School of Engineering, Tohoku University, 6-6-01 Aramaki-Aza-Aoba, Aoba-ku, Sendai, 980-8579, Miyagi, Japan.
Institute of Biomedical Engineering, University of Toronto, Toronto, ON, Canada.
Sci Rep. 2024 Nov 28;14(1):29617. doi: 10.1038/s41598-024-81361-7.

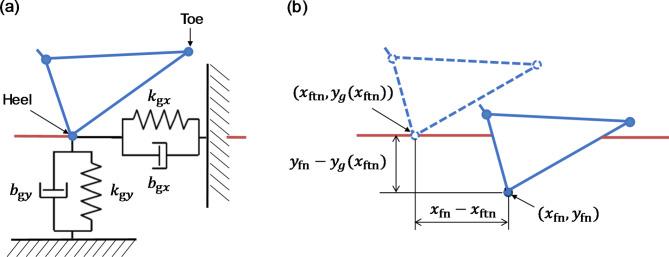

We used a neuromusculoskeletal model of bipedal walking to examine the effects of foot-ground friction conditions and gait patterns on slip- and trip-induced falls. We developed three two-dimensional neuro-musculoskeletal models in a self-organized manner representing young adults, elderly non-fallers, and elderly fallers. We simulated walking under different foot-ground friction conditions. The static friction coefficient between the foot and the ground was varied from 0.05 to 2.0. Under low friction conditions, the three gait models demonstrated slip-induced falls. The elderly faller model experienced the most slip. This is because the RCOF was higher in the elderly faller model due to its short stride length but much smaller foot clearance. Under high friction conditions, only the elderly faller model demonstrated trip-induced falls. Based on the analysis using the margin of stability, the forward postural stability of the model gradually decreased under high-friction conditions, with the toe of the swing foot contacting the ground and subsequently falling forward. These results imply that there is an optimal coefficient of friction for the ground to prevent slip- and trip-induced falls by people with less stable gaits, which may provide new insights into the design of shoes and floor surfaces for the elderly.
我们使用双足行走的神经肌肉骨骼模型来研究地面摩擦条件和步态模式对滑倒和绊倒导致的跌倒的影响。我们以自组织的方式开发了三个二维神经肌肉骨骼模型,分别代表年轻人、非跌倒的老年人和跌倒的老年人。我们模拟了不同地面摩擦条件下的行走。脚与地面之间的静摩擦系数从 0.05 变化到 2.0。在低摩擦条件下,三个步态模型都出现了滑倒导致的跌倒。跌倒的老年人模型滑倒的情况最为严重。这是因为由于步长较短但足廓清较小,跌倒的老年人模型的 RCOF 较高。在高摩擦条件下,只有跌倒的老年人模型出现了绊倒导致的跌倒。基于使用稳定裕度的分析,在高摩擦条件下,模型的前向姿势稳定性逐渐降低,摆动脚的脚趾接触地面并随后向前跌倒。这些结果表明,对于步态不太稳定的人来说,地面存在一个最佳的摩擦系数,可以防止滑倒和绊倒导致的跌倒,这可能为老年人的鞋子和地板表面设计提供新的思路。
