基于视觉与传感技术的铁观音乌龙茶发酵程度预测模型

The Fermentation Degree Prediction Model for Tieguanyin Oolong Tea Based on Visual and Sensing Technologies.

作者信息

Huang Yuyan, Zhao Jian, Zheng Chengxu, Li Chuanhui, Wang Tao, Xiao Liangde, Chen Yongkuai

机构信息

Institute of Digital Agriculture, Fujian Academy of Agricultural Sciences, Fuzhou 350003, China.

Fujian Zhi Cha Intelligent Technology Co., Anxi 362400, China.

出版信息

Foods. 2025 Mar 13;14(6):983. doi: 10.3390/foods14060983.

DOI:10.3390/foods14060983
PMID:40231982
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11941101/
Abstract

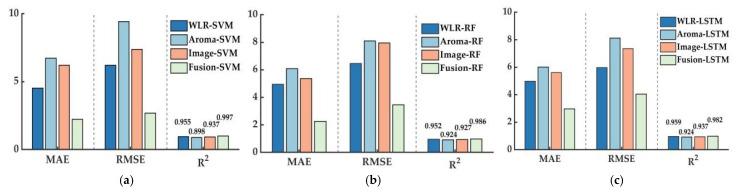

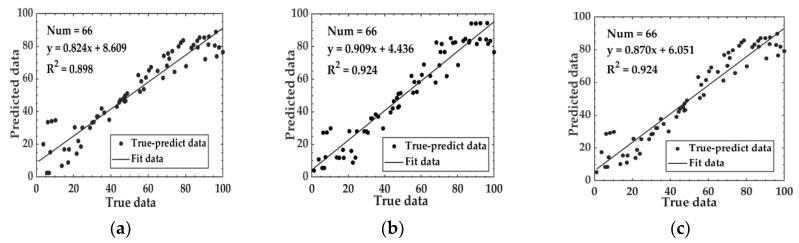

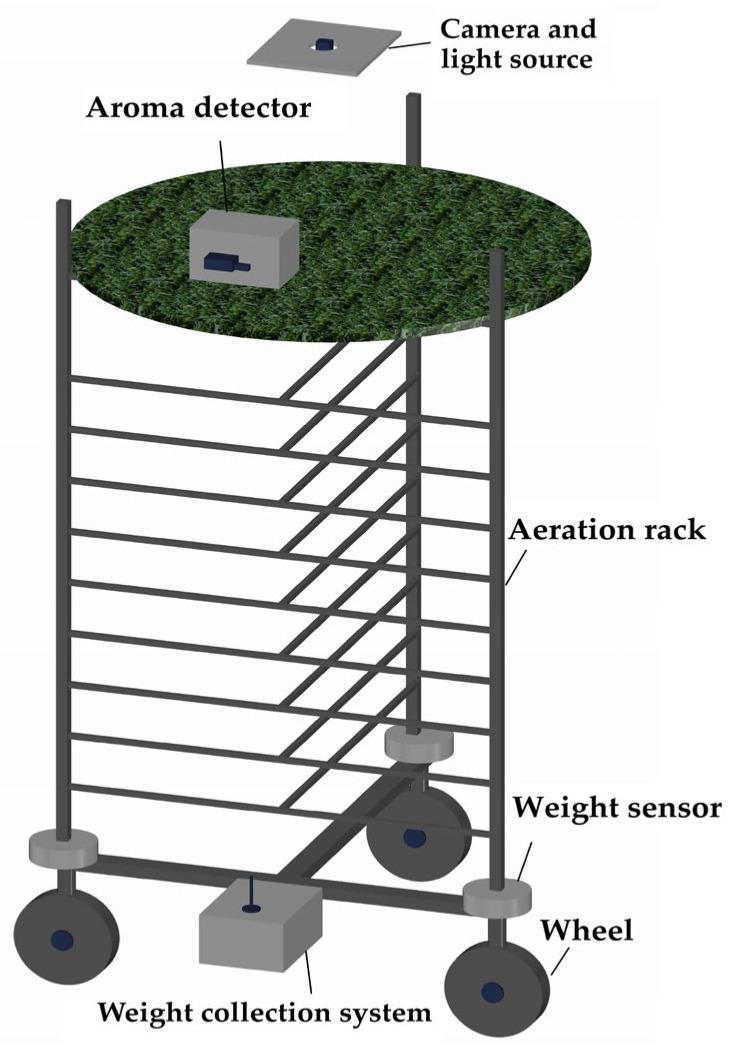

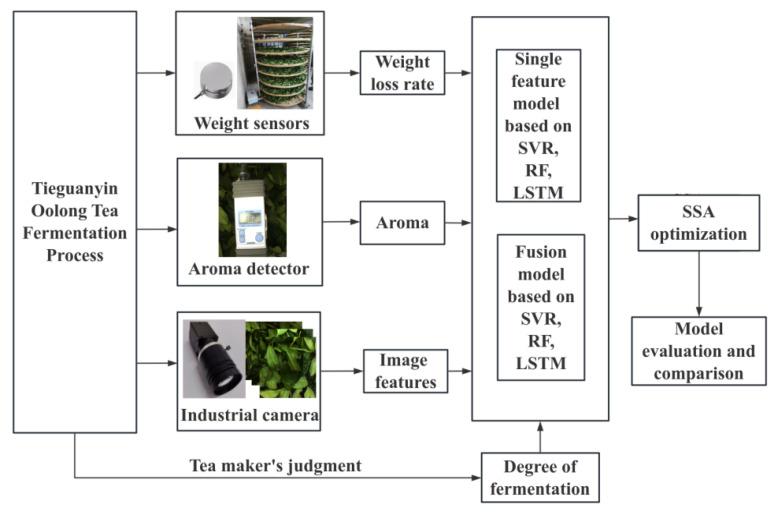

The fermentation of oolong tea is a critical process that determines its quality and flavor. Current fermentation control relies on tea makers' sensory experience, which is labor-intensive and time-consuming. In this study, using Tieguanyin oolong tea as the research object, features including the tea water loss rate, aroma, image color, and texture were obtained using weight sensors, a tin oxide-type gas sensor, and a visual acquisition system. Support vector regression (SVR), random forest (RF) machine learning, and long short-term memory (LSTM) deep learning algorithms were employed to establish models for assessing the fermentation degree based on both single features and fused multi-source features, respectively. The results showed that in the test set of the fermentation degree models based on single features, the mean absolute error (MAE) ranged from 4.537 to 6.732, the root mean square error (RMSE) ranged from 5.980 to 9.416, and the coefficient of determination (R) values varied between 0.898 and 0.959. In contrast, the data fusion models demonstrated superior performance, with the MAE reduced to 2.232-2.783, the RMSE reduced to 2.693-3.969, and R increased to 0.982-0.991, confirming that feature fusion enhanced characterization accuracy. Finally, the Sparrow Search Algorithm (SSA) was applied to optimize the data fusion models. After optimization, the models exhibited a MAE ranging from 1.703 to 2.078, a RMSE from 2.258 to 3.230, and R values between 0.988 and 0.994 on the test set. The application of the SSA further enhanced model accuracy, with the Fusion-SSA-LSTM model demonstrating the best performance. The research results enable online real-time monitoring of the fermentation degree of Tieguanyin oolong tea, which contributes to the automated production of Tieguanyin oolong tea.

摘要

乌龙茶的发酵是决定其品质和风味的关键过程。目前的发酵控制依赖于制茶者的感官经验,既耗费人力又耗时。在本研究中,以铁观音乌龙茶为研究对象,利用重量传感器、氧化锡型气体传感器和视觉采集系统获取了包括茶水损失率、香气、图像颜色和质地等特征。分别采用支持向量回归(SVR)、随机森林(RF)机器学习和长短期记忆(LSTM)深度学习算法,基于单一特征和融合多源特征建立了评估发酵程度的模型。结果表明,在基于单一特征的发酵程度模型测试集中,平均绝对误差(MAE)在4.537至6.732之间,均方根误差(RMSE)在5.980至9.416之间,决定系数(R)值在0.898至0.959之间。相比之下,数据融合模型表现出更好的性能,MAE降至2.232 - 2.783,RMSE降至2.693 - 3.969,R升至0.982 - 0.991,证实特征融合提高了表征精度。最后,应用麻雀搜索算法(SSA)对数据融合模型进行优化。优化后,模型在测试集上的MAE在1.703至2.078之间,RMSE在2.258至3.230之间,R值在0.988至0.994之间。SSA的应用进一步提高了模型精度,其中Fusion - SSA - LSTM模型性能最佳。研究结果实现了对铁观音乌龙茶发酵程度的在线实时监测,有助于铁观音乌龙茶的自动化生产。
