Miedzianowska-Masłowska Justyna, Masłowski Marcin, Strzelec Krzysztof
Institute of Polymer and Dye Technology, Lodz University of Technology, Stefanowskiego 16, 90-537 Lodz, Poland.
Materials (Basel). 2025 Apr 4;18(7):1659. doi: 10.3390/ma18071659.

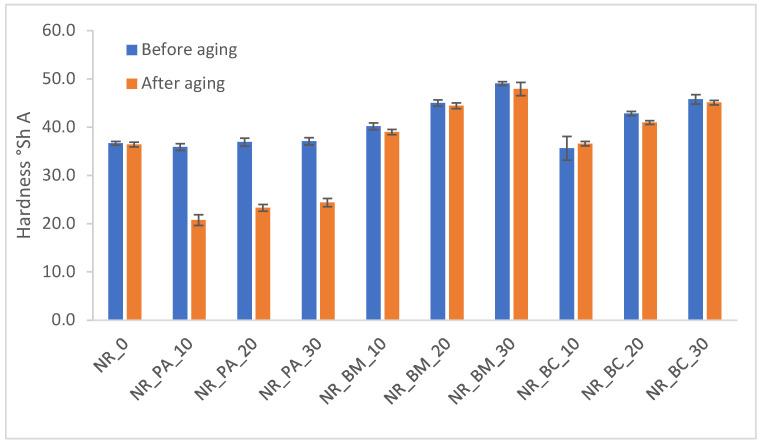

The growing interest in renewable resource-based materials has driven efforts to develop elastomeric biocomposites using biomass, phyto-ash, and biochar as fillers. These bio-additives, derived from beech wood through various processing methods, were incorporated into natural rubber (NR) at varying weight ratios. The primary objective of this study was to assess how the type and content of each bio-filler influence the structural, processing, and performance properties of the biocomposites. Mechanical properties, including tensile strength and hardness, were evaluated, while crosslink density of the vulcanizates was determined using equilibrium swelling in solvents. Additionally, the composites underwent thermogravimetric analysis (TGA) to determine the decomposition temperature of individual components within the polymer matrix. Bio-fillers influenced rheological and mechanical properties, with phyto-ash reducing viscosity and cross-linking density, and biochar and biomass increasing stiffness and maximum torque. Biochar extended curing time due to the absorption of curing agents, whereas phyto-ash accelerated vulcanization. Mechanical tests showed that all bio-filled composites were stiffer than the reference, with biochar and biomass (30 phr) exhibiting the highest hardness (45.8 °ShA and 49.1 °ShA, respectively) and cross-link density (2.68 × 10 mol/cm and 2.77 × 10 mol/cm, respectively), contributing to improved tensile strength, in particular in the case of biochar, where the TS was 17.6 MPa. The study also examined the effects of thermal-oxidative aging on the samples, providing insights into the changes in the mechanical properties of the biocomposites under simulated aging conditions.
对基于可再生资源的材料日益增长的兴趣推动了人们努力开发以生物质、植物灰和生物炭为填料的弹性体生物复合材料。这些通过各种加工方法从山毛榉木中提取的生物添加剂,以不同的重量比掺入天然橡胶(NR)中。本研究的主要目的是评估每种生物填料的类型和含量如何影响生物复合材料的结构、加工和性能特性。评估了包括拉伸强度和硬度在内的机械性能,同时使用溶剂中的平衡溶胀法测定了硫化胶的交联密度。此外,对复合材料进行了热重分析(TGA),以确定聚合物基体中各个组分的分解温度。生物填料影响流变学和机械性能,植物灰降低了粘度和交联密度,而生物炭和生物质增加了硬度和最大扭矩。由于固化剂的吸收,生物炭延长了固化时间,而植物灰加速了硫化。机械测试表明,所有生物填充复合材料都比参考材料更硬,生物炭和生物质(30 phr)表现出最高的硬度(分别为45.8 °ShA和49.1 °ShA)和交联密度(分别为2.68×10⁻³ mol/cm³和2.77×10⁻³ mol/cm³),有助于提高拉伸强度,特别是在生物炭的情况下,其拉伸强度为17.6 MPa。该研究还考察了热氧化老化对样品的影响,深入了解了模拟老化条件下生物复合材料机械性能的变化。
