Imabayashi Hiroki, Toyoda Takahide, Tanaka Kazuhisa, Sata Yuki, Inage Terunaga, Tamura Hajime, Chiyo Masako, Matsui Yukiko, Suzuki Hidemi
Department of General Thoracic Surgery, Chiba University Graduate School of Medicine, Chiba, Chiba, Japan.
Surg Case Rep. 2025;11(1). doi: 10.70352/scrj.cr.24-0013. Epub 2025 May 1.
Segmentectomy is being accepted as a valid operative procedure for small peripheral non-small cell lung cancer. Understanding pulmonary artery (PA) variations is essential to ensure safe and reliable surgeries. Herein, we report a case of left S3 and S8 segmentectomy involving a complete interlobar branch of the left A3, a relatively rare anomaly reported in less than 0.56% of cases in previous studies.

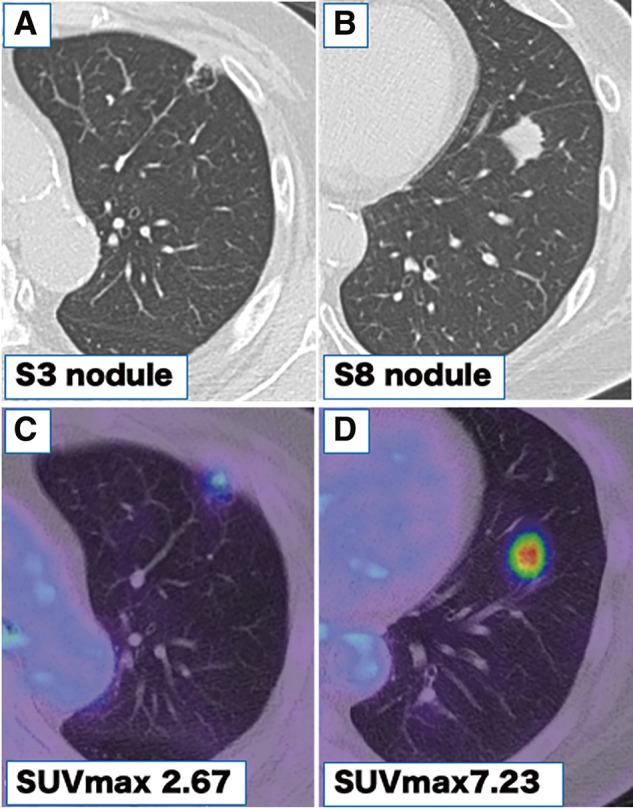

A woman in her sixties was referred to our hospital with two nodules in the left upper lobe anterior segment (S3, 1.1 × 0.8 cm) and the lower lobe anterior basal segment (S8, 1.8 × 1.7 cm), suggestive of double primary lung cancer. Preoperative thin-slice computed tomography (CT) and three-dimensional CT revealed a vascular anomaly in which the entire left A3 branched from the interlobar PA. Left S3 and S8 segmentectomies were performed via thoracotomy. The interlobar A3 branched at nearly the same level as the A6. After cutting the V3b and V3c veins, the intersegmental plane and the interlobar A3 were sequentially divided using staplers. To prevent torsion of the remaining lung, the edges of the apico-posterior segment (S1+2) and the lingular segment were loosely secured with silk sutures. The operative times were 4 h and 8 min with minimal blood loss. Pathological examination revealed that both nodules were squamous cell carcinomas of the lungs (pT1bN0M0, pStage IA2). The patient remained recurrence-free for over 1 year.
Complete interlobar branching of the left A3 is uncommon. During left S3 segmentectomy in cases involving an interlobar A3, the S1+2 and lingular segments may become solitary blocks, necessitating measures to prevent torsion.
肺段切除术正被公认为是治疗小的外周型非小细胞肺癌的一种有效手术方式。了解肺动脉(PA)变异对于确保安全可靠的手术至关重要。在此,我们报告一例左S3和S8肺段切除术,该病例涉及左A3的一个完整叶间分支,这是一种相对罕见的异常情况,在以往研究中报道的病例不到0.56%。
一名60多岁的女性因左肺上叶前段(S3,1.1×0.8 cm)和下叶前基底段(S8,1.8×1.7 cm)有两个结节被转诊至我院,提示双原发性肺癌。术前薄层计算机断层扫描(CT)和三维CT显示一种血管异常,即整个左A3从叶间肺动脉分支。通过开胸手术进行了左S3和S8肺段切除术。叶间A3在与A6几乎相同的水平分支。切断V3b和V3c静脉后,使用吻合器依次分离段间平面和叶间A3。为防止剩余肺组织扭转,用丝线将尖后段(S1+2)和舌段边缘松散固定。手术时间为4小时8分钟,失血极少。病理检查显示两个结节均为肺鳞状细胞癌(pT1bN0M0,p分期IA2)。患者术后1年多未复发。
左A3的完整叶间分支并不常见。在涉及叶间A3的病例中进行左S3肺段切除术时,S1+2和舌段可能会成为孤立的肺块,需要采取措施防止扭转。
