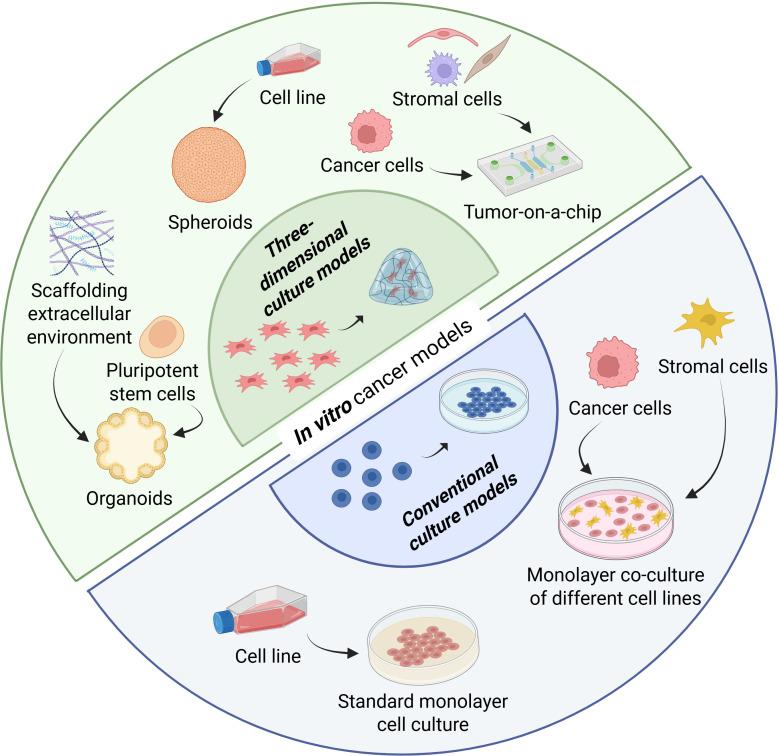

The prognosis for patients diagnosed with cholangiocarcinoma (CCA) is dismal, with an overall 5-year-mortality rate of 80%. Therapeutic approaches for this cancer are very limited and the only curative treatment is total surgical resection despite recent advancements in CCA research. However, only a minority of patients are eligible for surgery due to late-stage diagnosis. Therefore, there is an urgent need to gain a deeper understanding of CCA and to discover new treatments, which can be achieved by utilization and optimization of 3D tumor models. Traditional 2D cell culture is still undeniably important in cancer research, especially for the discovery of biomarkers and drug screening. However, classical 2D tumor models do not represent the tumor biology in its full complexity as they lack the vital interactions between cancer cells, angiogenesis, and tumor microenvironment. In recent years, 3D models, including spheroids, 3D co-culture systems, organoids, tumors-on-a-chip, and the chorioallantoic membrane (CAM) model, have been used for CCA research. These models enable the study of the tumor microenvironment, investigation of metastases, drug development and testing, cholangiocarcinogenesis and personalized therapy. This review summarizes the applications of the different 3D tumor models that have been used for the investigation of CCA. Moreover, the advantages and disadvantages of the different 3D tumor models are discussed, and suggestions for future research possibilities are described. By optimizing 3D models, the gap between basic research findings and clinical applications can be bridged, enabling the discovery of more effective therapies for CCA and other cancers.
