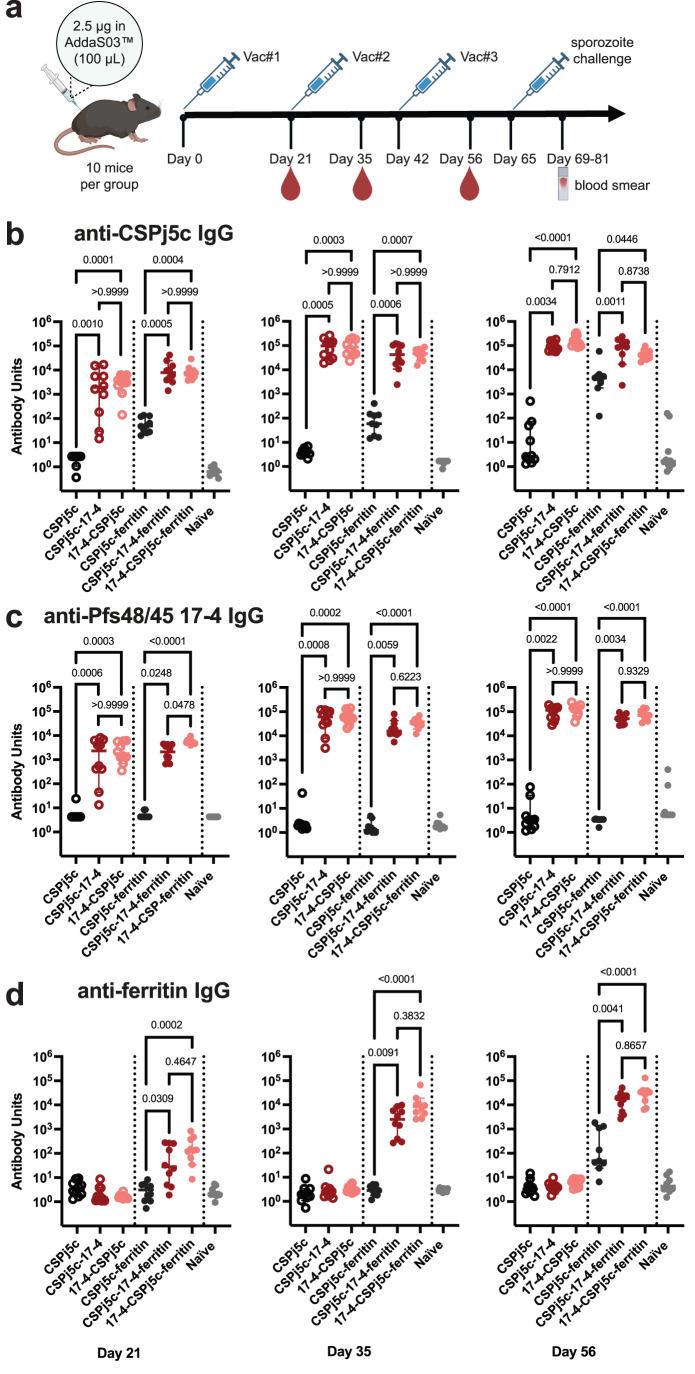

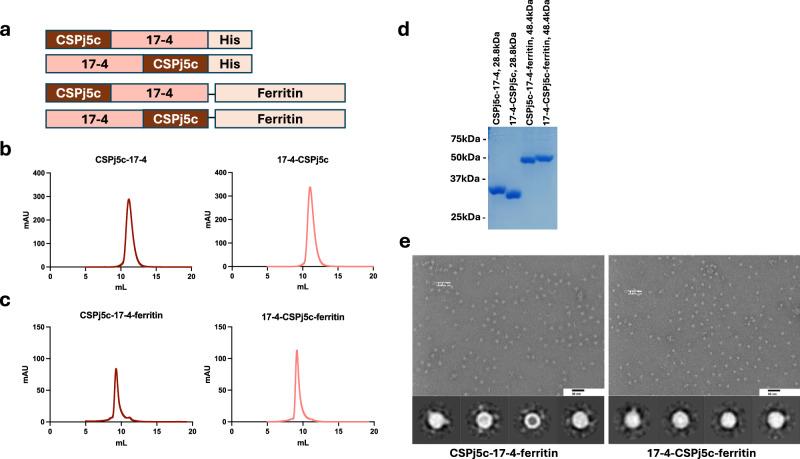

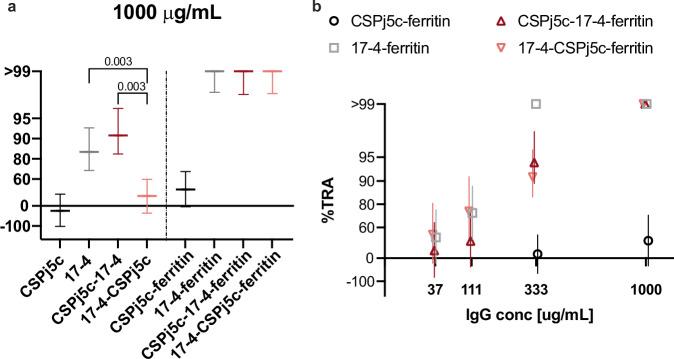

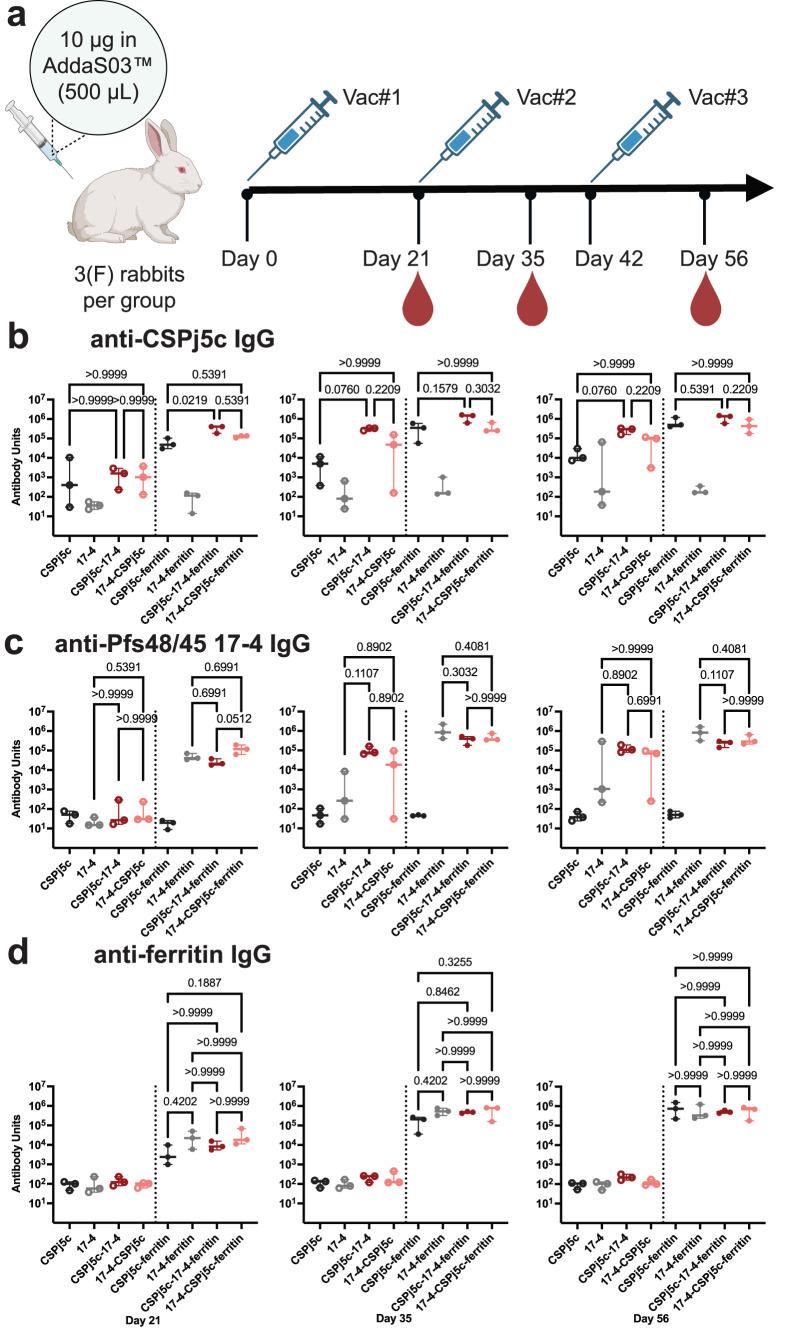

The multiple stages of the malaria parasite life cycle hampers vaccine development. Combining a pre-erythrocytic antigen with a transmission-blocking antigen would target two independent stages of the life cycle for disease control, resulting in a multistage vaccine that can prevent infection and disease transmission simultaneously. Here, we generated a self-assembled ferritin nanoparticle vaccine that simultaneously presents designed immunogens CSPj5c and 17-4 from the infection-blocking circumsporozoite and the transmission-blocking Pfs48/45 antigens. These immunogens were designed, through structure-based approaches, to retain protective epitopes and confer protection upon vaccination. Immunization with CSPj5c-17-4-ferritin nanoparticles conferred protection against challenge with transgenic sporozoites expressing Plasmodium falciparum CSP in mice, and purified IgGs from immunized rabbits elicited potent transmission-reducing activity. Addition of the engineered 17-4 improved the immune responses to CSPj5c and protection from sporozoite challenge. CSPj5c-17-4-ferritin is therefore a promising multistage malaria vaccine with a potential role in malaria control.
