Jeżak Piotr, Seweryn Aleksandra, Klepka Marcin, Mroczyński Robert
Warsaw University of Technology, Institute of Microelectronics and Optoelectronics, Koszykowa 75, 00-662 Warsaw, Poland.
Warsaw University of Technology, Center of Advanced Materials and Technology CEZAMAT, Poleczki 19, 02-822 Warsaw, Poland.
Materials (Basel). 2025 Aug 22;18(17):3940. doi: 10.3390/ma18173940.

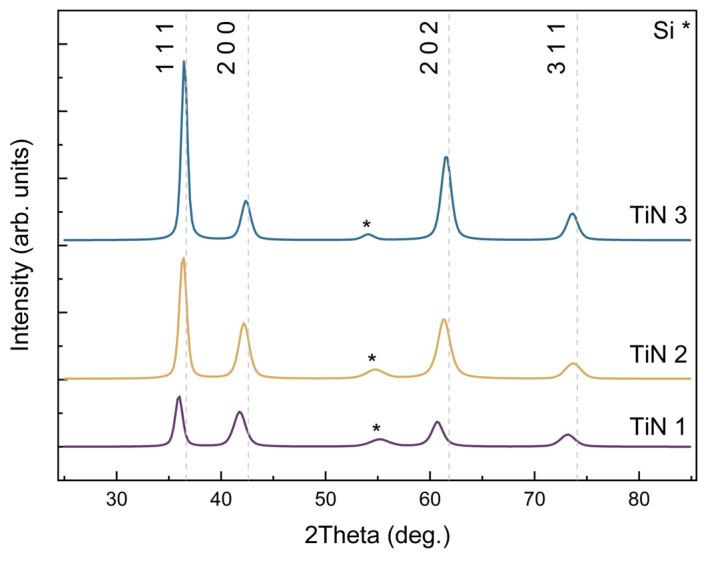

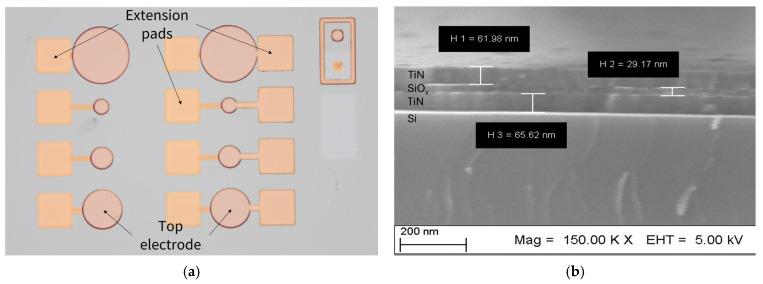

Resistive switching (RS) phenomena are nowadays one of the most studied topics in the area of microelectronics. It can be observed in Metal-Insulator-Metal (MIM) structures that are the basis of resistive switching random-access memories (RRAMs). In the case of commercial use of RRAMs, it is beneficial that the applied materials would have to be compatible with Complementary Metal-Oxide-Semiconductor (CMOS) technology. Fabricating methods of these materials can determine their stoichiometry and structural composition, which can have a detrimental impact on the electrical performance of manufactured devices. In this study, we present the influence of the Ar/N ratio during reactive magnetron sputtering of titanium nitride (TiN) electrodes on the resistive switching behavior of MIM devices. We used silicon oxide (SiOx) as a dielectric layer, which was characterized by the same properties in all fabricated MIM structures. The composition of TiN thin layers was controlled by tuning the Ar/N ratio during the deposition process. The fabricated conductive materials were characterized in terms of chemical and structural properties employing X-ray photoelectron spectroscopy (XPS) and X-ray diffraction (XRD) analysis. Structural characterization revealed that increasing the Ar content during the reactive sputtering process affects the crystallite size of the deposited TiN layer. The resulting crystallite sizes ranged from 8 Å to 757.4 Å. The I-V measurements of fabricated devices revealed that tuning the Ar/N ratio during the deposition of TiN electrodes affects the RS behavior. Our work shows the importance of controlling the stoichiometry and structural parameters of electrodes on resistive switching phenomena.
电阻开关(RS)现象如今是微电子领域研究最多的课题之一。在作为电阻开关随机存取存储器(RRAM)基础的金属-绝缘体-金属(MIM)结构中可以观察到这种现象。在RRAM商业应用的情况下,所应用的材料必须与互补金属氧化物半导体(CMOS)技术兼容,这是有益的。这些材料的制造方法可以决定其化学计量和结构组成,而这可能对制造器件的电学性能产生不利影响。在本研究中,我们展示了在氮化钛(TiN)电极的反应磁控溅射过程中,氩气与氮气(Ar/N)比例对MIM器件电阻开关行为的影响。我们使用氧化硅(SiOx)作为介电层,在所有制造的MIM结构中其特性相同。通过在沉积过程中调整Ar/N比例来控制TiN薄层的组成。采用X射线光电子能谱(XPS)和X射线衍射(XRD)分析对制造的导电材料的化学和结构性质进行了表征。结构表征表明,在反应溅射过程中增加氩气含量会影响沉积的TiN层的微晶尺寸。所得微晶尺寸范围为8 Å至757.4 Å。对制造器件的电流-电压(I-V)测量表明,在TiN电极沉积过程中调整Ar/N比例会影响电阻开关行为。我们的工作表明了控制电极的化学计量和结构参数对电阻开关现象的重要性。
