Synchrotron radiation computed laminography for polymer composite failure studies.

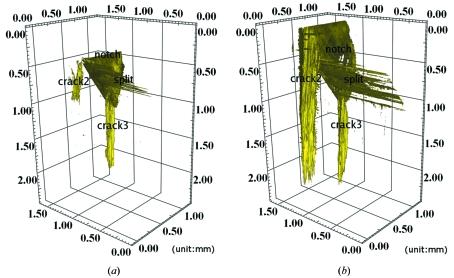

Synchrotron radiation computed laminography is applied to the three-dimensional micro-imaging of damage in large polymer composite plates with high spatial resolution. The influence of different experimental conditions is studied with respect to measurement time optimization, dose minimization and reduction of artefacts in the reconstructed images. Failures like delaminations, transverse ply cracks and splits are observed under in situ loads. The propagation of up to 2 mm-long cracks is non-destructively followed in situ and investigated in detail. By phase retrieval using a single detector distance, the failures can be easily visualized in three dimensions.
