Bis(guanidinium) bis-(4-hydroxy-pyridine-2,6-dicarboxyl-ato-κO,N,O)nickel-ate(II) dihydrate.

作者信息

Aghabozorg Hossein, Motyeian Elham, Attar Gharamaleki Jafar, Soleimannejad Janet, Ghadermazi Mohammad, Spey Sharon Elizabeth

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2007 Dec 12;64(Pt 1):m144-5. doi: 10.1107/S1600536807065026.

Abstract

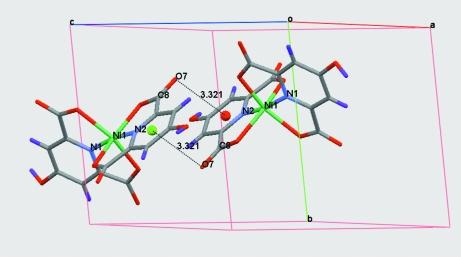

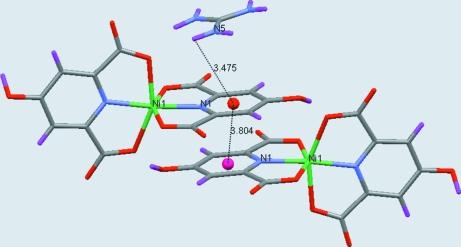

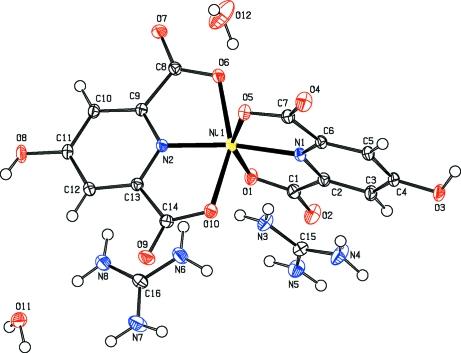

The reaction of nickel(II) nitrate hexa-hydrate, guanidine (G) and 4-hydroxy-pyridine-2,6-dicarboxylic acid (hypydcH(2)) in a 1:2:2 molar ratio in aqueous solution resulted in the formation of the title compound, (CH(6)N(3))(2)[Ni(C(7)H(3)NO(5))(2)]·2H(2)O or (GH)(2)[Ni(hypydc)(2)]·2H(2)O. The six donor atoms of the two 4-hydroxy-pyridine-2,6-dicarboxyl-ate or (hypydc)(2-) ligands form a distorted octa-hedral arrangement around the Ni(II) centre. Considerable C-O⋯π stacking inter-actions between the CO groups of carboxyl-ate fragments and the pyridine rings of (hypydc)(2-) with a distance of 3.3212 (8) Å are observed. In the crystal structure, a wide range of noncovalent inter-actions consisting of hydrogen bonding (of the types O-H⋯O and N-H⋯O), ion pairing, and π-π [centroid-centroid distance 3.8037 (5) Å], N-H⋯π and C-O⋯π stacking inter-actions connect the various components into a supra-molecular structure.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a818/2915088/d5ef539f9664/e-64-0m144-fig1.jpg
