Diethyl 2-[(1-methyl-1H-pyrrol-2-yl)methyl-ene-amino]-5-(2-thienylmethyl-ene-amino)thio-phene-3,4-dicarboxyl-ate.

作者信息

Dufresne Stéphane, Skene W G

机构信息

Department of Chemistry, University of Montreal, CP 6128, succ. Centre-ville, Montréal, Québec, Canada H3C 3J7.

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2008 Apr 2;64(Pt 5):o782. doi: 10.1107/S160053680800799X.

Abstract

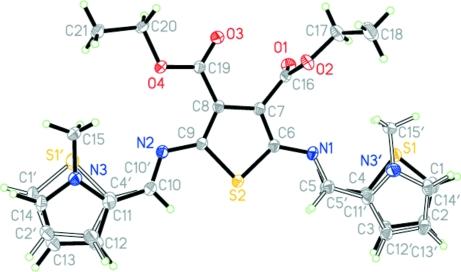

Both imine bonds of the title compound, C(21)H(21)N(3)O(4)S(2), were found to be in the E configuration. The terminal pyrrole and thio-phene rings are twisted by 2.5 (3) and 2.3 (2)°, respectively, from the mean plane of the central thio-phene to which they are attached. The structure is disordered by exchange of the terminal heterocyclic rings; the site occupancy factors are ca 0.8 and 0.2. The crystal packing involves some π-π stacking [3.449 (4) Å between pyrrole and terminal thio-phene rings].

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/ff46/2961309/861c6f320f33/e-64-0o782-fig1.jpg
