Department of Organic Chemistry, Faculty of Pharmacy, Medical University of Warsaw, Banacha 1, 02-097 Warsaw, Poland.
Molecules. 2011 May 5;16(5):3826-44. doi: 10.3390/molecules16053826.

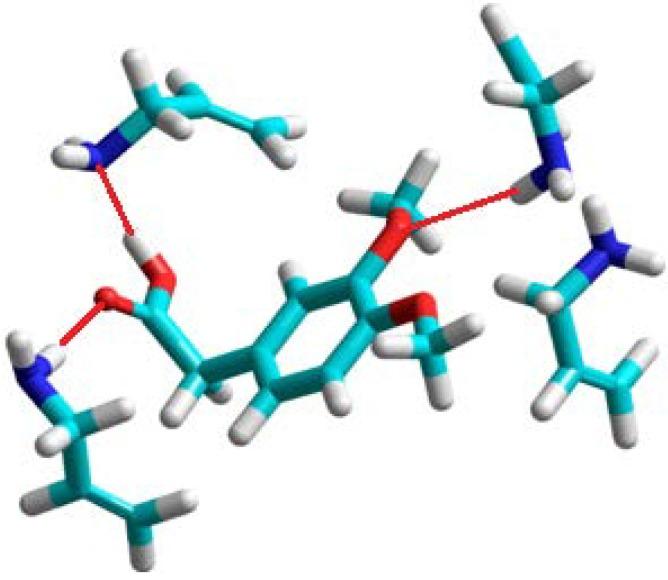

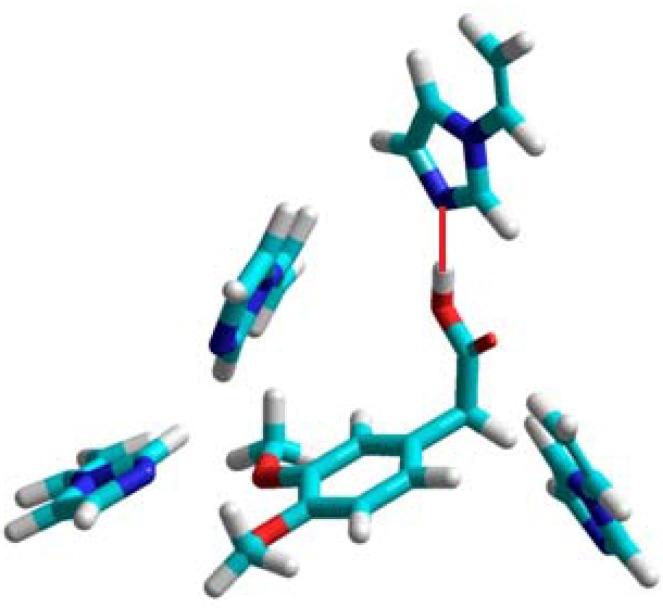

A bulk polymerization method was used to easily and efficiently prepare homoveratric acid (3,4-dimethoxyphenylacetic acid)-imprinted polymers from eight basic monomers: 2-vinylpyridine, 4-vinylpyridine, 1-vinylimidazole, N-allylaniline, N-allylpiperazine, allylurea, allylthiourea, and allylamine, in the presence of homoveratric acid as a template in N,N-dimethylformamide as a porogen. The imprinted polymer prepared from allylamine had the highest affinity to the template, showing an imprinting factor of 3.43, and allylamine polymers MIP8/NIP8 were selected for further studies. Their binding properties were analyzed using the Scatchard method. The results showed that the imprinted polymers have two classes of heterogeneous binding sites characterized by two pairs of K(d), B(max) values: K(d)(1) = 0.060 μmol/mL, B(max)(1) = 0.093 μmol/mg for the higher affinity binding sites, and K(d)(2) = 0.455 μmol/mL, B(max)(2) = 0.248 μmol/mg for the lower affinity binding sites. Non-imprinted polymer has only one class of binding site, with K(d) = 0.417 μmol/mL and B(max) = 0.184 μmol/mg. A computational analysis of the energies of the prepolymerization complexes was in agreement with the experimental results. It showed that the selective binding interactions arose from cooperative three point interactions between the carboxylic acid and the two methoxy groups in the template and amino groups in the polymer cavities. Those results were confirmed by the recognition studies performed with the set of structurally related compounds. Allylamine polymer MIP8 had no affinity towards biogenic amines. The obtained imprinted polymer could be used for selective separation of homoveratric acid.
采用本体聚合法,以 N,N-二甲基甲酰胺为致孔剂,以香草基扁桃酸为模板,以 2-乙烯基吡啶、4-乙烯基吡啶、1-乙烯基咪唑、N-烯丙基苯胺、N-烯丙基哌嗪、烯丙脲、烯丙基硫脲和烯丙胺等 8 种碱性单体为功能单体,简便、高效地制备了香草基扁桃酸印迹聚合物。由烯丙胺制备的印迹聚合物对模板具有最高的亲和力,表现出 3.43 的印迹因子,并选择烯丙胺聚合物 MIP8/NIP8 进行进一步研究。用 Scatchard 法分析其结合性能。结果表明,印迹聚合物具有两类以两对 K(d)、B(max)值为特征的非均相结合位:高亲和力结合位的 K(d)(1) = 0.060 μmol/mL,B(max)(1) = 0.093 μmol/mg;低亲和力结合位的 K(d)(2) = 0.455 μmol/mL,B(max)(2) = 0.248 μmol/mg。非印迹聚合物只有一类结合位,K(d) = 0.417 μmol/mL,B(max) = 0.184 μmol/mg。预聚合络合物能量的计算分析与实验结果一致。结果表明,选择性结合相互作用源于模板中羧酸和两个甲氧基与聚合物腔中氨基之间的协同三点相互作用。通过对一组结构相关化合物的识别研究证实了这一结果。烯丙胺聚合物 MIP8 对生物胺没有亲和力。所得印迹聚合物可用于香草基扁桃酸的选择性分离。
