catena-Poly[[aqua-(3-methyl-benzoato-κO,O')lead(II)]-μ-3-methyl-benzoato-κO:O,O':O'].

作者信息

Dai Jun, Yang Juan, An Xiaobing

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2009 Jun 6;65(Pt 7):m709-10. doi: 10.1107/S1600536809019771.

Abstract

The reaction of lead(II) acetate and 3-methyl-benzoic acid (MBA) in aqueous solution yielded the title polymer, Pb(C(8)H(7)O(2))(2)(H(2)O). The asymmetric unit contains two Pb(II) atoms, four MBA ligands and two water mol-ecules. Each Pb(II) cation is hepta-coordinated and chelated by four carboxyl-ate O atoms from two MBA ligands. The Pb atoms are bridged through the carboxyl-ate O atoms from another two MBA ligands, leading to a central Pb(2)O(2) core. The Pb-O bond lengths are in the range 2.325 (3)-2.757 (4) Å. The intra- and inter-dimer Pb⋯Pb distances are 4.2942 (3) and 4.2283 (3) Å, respectively, indicating little direct metal-metal inter-action. The coordinating water mol-ecules and carboxyl-ate O atoms are involved in extensive O-H⋯O hydrogen-bonding inter-actions. The complex has an extended ladder-like chain structure and the chains are assembled by hydrogen bonds and π-π inter-actions [centroid-centroid distance = 3.6246 (3) Å] into a three-dimensional supra-molecular structure.

摘要

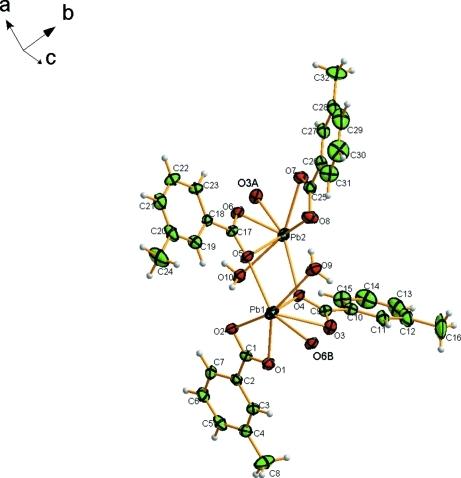

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/a587/2969469/db516ad137a3/e-65-0m709-fig1.jpg
