4-Cyclo-butyl-amino-3-nitro-benzoic acid.

作者信息

Narendra Babu Shivanagere Nagojappa, Abdul Rahim Aisyah Saad, Osman Hasnah, Quah Ching Kheng, Fun Hoong-Kun

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2009 Jun 13;65(Pt 7):o1566-7. doi: 10.1107/S1600536809021412.

DOI:10.1107/S1600536809021412
PMID:21582847
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC2969240/
Abstract

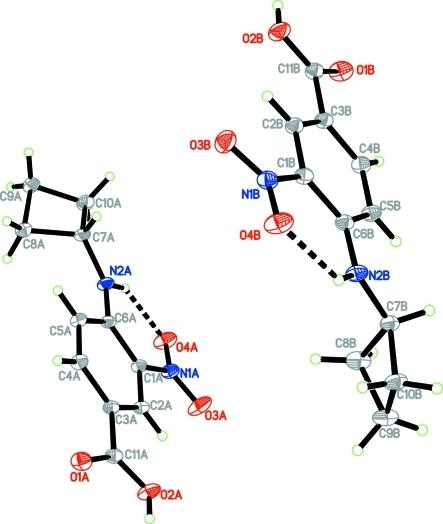

The asymmetric unit of the title compound, C(11)H(12)N(2)O(4), contains two crystallographically independent mol-ecules with similar geometries. Both mol-ecules contain an intra-molecular N-H⋯O hydrogen bond. The dihedral angles between the benzene ring and the mean plane of the cyclo-butane ring are 38.29 (7) and 57.04 (8)° in the two mol-ecules, and the nitro group is twisted slightly away from the plane of the benzene ring [dihedral angles = 9.15 (12) and 9.55 (12)° in the two mol-ecules]. In the crystal, the independent mol-ecules are linked into dimers by O-H⋯O hydrogen bonds between their carboxyl groups, and C-H⋯O and C-H⋯π inter-actions are formed between dimers.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/654c/2969240/7b484e90963f/e-65-o1566-fig2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/654c/2969240/3cf88260d1a8/e-65-o1566-fig1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/654c/2969240/7b484e90963f/e-65-o1566-fig2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/654c/2969240/3cf88260d1a8/e-65-o1566-fig1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/654c/2969240/7b484e90963f/e-65-o1566-fig2.jpg
