5-甲酰基-3,4-二甲基-1H-吡咯-2-羧酸乙酯
Ethyl 5-formyl-3,4-dimethyl-1H-pyrrole-2-carboxyl-ate.
作者信息
Wu Wei-Na, Wang Yuan, Wang Qiu-Fen
机构信息
Department of Physics and Chemistry, Henan Polytechnic University, Jiaozuo 454000, People's Republic of China.
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2009 Jun 20;65(Pt 7):o1661. doi: 10.1107/S160053680902323X.
Abstract

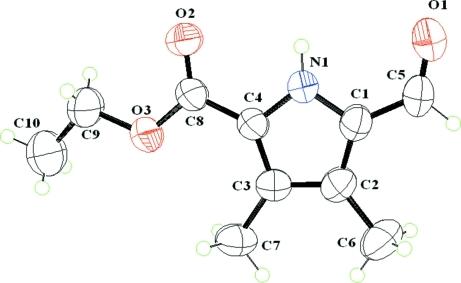

The mol-ecule of the title compound, C(10)H(13)NO(3), is approximately planar (maximum deviation 0.1424 Å). In the crystal, mol-ecules are linked into inversion dimers by pairs of N-H⋯O hydrogen bonds, and the dimeric units are linked by non-classical C-H⋯O hydrogen bonds, forming a layered structure.
摘要
标题化合物C(10)H(13)NO(3)的分子近似呈平面状（最大偏差为0.1424 Å）。在晶体中，分子通过N—H⋯O氢键对连接成反演二聚体，且二聚体单元通过非经典的C—H⋯O氢键连接，形成层状结构。
