catena-Poly[[diaquazinc(II)]-μ-trans-4,4'-diazenediyldibenzoato-κO,O':O'',O'''].

作者信息

Liu Bo, Xu Qiang

机构信息

National Institute of Advanced Industrial Science and Technology (AIST), Ikeda, Osaka 563-8577, Japan, and Graduate School of Science and Technology, Kobe University, Nada Ku, Kobe, Hyogo 657-8501, Japan.

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2009 Apr 10;65(Pt 5):m509. doi: 10.1107/S1600536809012604.

Abstract

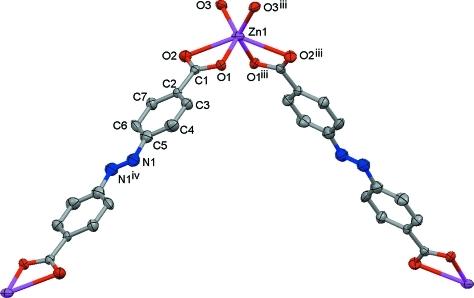

The title compound, Zn(C(14)H(8)N(2)O(4))(H(2)O)(2), consists of zigzag chains of Zn atoms bridged by azobenzene-4,4'-dicarboxyl-ate ligands. The Zn(II) atom, lying on a twofold rotation axis, is coordinated by four O atoms from the carboxyl-ate groups and two water mol-ecules, giving rise to a considerably distorted octa-hedral coordination envionment. The ligand lies on an inversion center. In the crystal structure, π-π inter-actions between the ligands [inter-planar distance = 3.527 (3) Å] assemble the chains into a sheet-like structure. O-H⋯O hydrogen bonds between the coordinated water mol-ecules and carboxyl-ate O atoms connect the sheets into a three-dimensional network.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/d6c8/2977570/3f2a6e63424b/e-65-0m509-fig1.jpg
