Pervez Humayun, Yaqub Muhammad, Ramzan Muhammad, Tahir M Nawaz, Iqbal Mohammad S
Acta Crystallogr Sect E Struct Rep Online. 2010 Jun 9;66(Pt 7):o1609. doi: 10.1107/S1600536810021264.

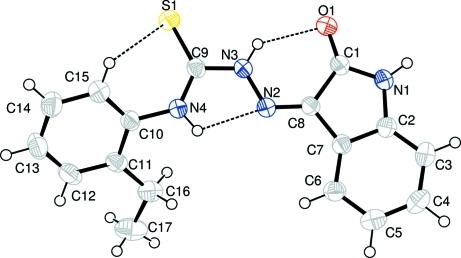

The title compound, C(17)H(16)N(4)OS, is stabilized in the form of a two-dimensional polymeric network due to inter-molecular N-H⋯S and N-H⋯O hydrogen bonds. An intra-molecular N-H⋯N hydrogen bond forms an S(5) ring, whereas inter-actions of the N-H⋯O and C-H⋯S types complete S(6) ring motifs. π-π inter-actions with a centroid-centroid distance of 3.6514 (10) Å are found between the ethyl-substituted benzene ring and the heterocyclic ring of the isatin derivative.
标题化合物C(17)H(16)N(4)OS由于分子间的N-H⋯S和N-H⋯O氢键而以二维聚合物网络的形式稳定存在。分子内的N-H⋯N氢键形成一个S(5)环,而N-H⋯O和C-H⋯S类型的相互作用则完成了S(6)环的结构单元。在乙基取代的苯环与异吲哚酮衍生物的杂环之间发现了质心间距为3.6514 (10) Å的π-π相互作用。
