Institut de Pharmacologie et de Biologie Structurale, Unité Mixte de Recherche 5089, Centre National de la Recherche Scientifique, Toulouse, France.
PLoS One. 2011;6(10):e25510. doi: 10.1371/journal.pone.0025510. Epub 2011 Oct 3.

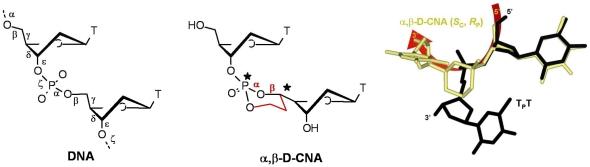

(S(C5'), R(P)) α,β-D- Constrained Nucleic Acids (CNA) are dinucleotide building blocks that can feature either B-type torsional angle values or non-canonical values, depending on their 5'C and P absolute stereochemistry. These CNA are modified neither on the nucleobase nor on the sugar structure and therefore represent a new class of nucleotide with specific chemical and structural characteristics. They promote marked bending in a single stranded DNA so as to preorganize it into a loop-like structure, and they have been shown to induce rigidity within oligonucleotides. Following their synthesis, studies performed on CNA have only focused on the constraints that this family of nucleotides introduced into DNA. On the assumption that bending in a DNA template may produce a terminator structure, we investigated whether CNA could be used as a new strong terminator of polymerization in PCR. We therefore assessed the efficiency of CNA as a terminator in PCR, using triethylene glycol phosphate units as a control. Analyses were performed by denaturing gel electrophoresis and several PCR products were further analysed by sequencing. The results showed that the incorporation of only one CNA was always skipped by the polymerases tested. On the other hand, two CNA units always stopped proofreading polymerases, such as Pfu DNA polymerase, as expected for a strong replication terminator. Non-proofreading enzymes, e.g. Taq DNA polymerase, did not recognize this modification as a strong terminator although it was predominantly stopped by this structure. In conclusion, this first functional use of CNA units shows that these modified nucleotides can be used as novel polymerization terminators of proofreading polymerases. Furthermore, our results lead us to propose that CNA and their derivatives could be useful tools for investigating the behaviour of different classes of polymerases.
(S(C5'), R(P)) α,β-D-约束核酸(CNA)是二核苷酸构建模块,其 5'C 和 P 绝对立体化学取决于其 B 型扭转角值或非规范值。这些 CNA 既不在核碱基上也不在糖结构上修饰,因此代表了一类具有特定化学和结构特征的新核苷酸。它们在单链 DNA 中促进明显的弯曲,从而将其预组织成环状结构,并且已显示出在寡核苷酸内诱导刚性。在合成之后,对 CNA 的研究仅集中在该家族核苷酸引入 DNA 中的约束上。假设 DNA 模板中的弯曲可能产生终止子结构,我们研究了 CNA 是否可以用作 PCR 中聚合的新强终止子。因此,我们使用三乙二醇磷酸酯单元作为对照来评估 CNA 作为 PCR 终止子的效率。通过变性凝胶电泳进行分析,并进一步通过测序分析了几个 PCR 产物。结果表明,测试的聚合酶总是跳过仅掺入一个 CNA。另一方面,两个 CNA 单元总是阻止校对聚合酶,如 Pfu DNA 聚合酶,这与强复制终止子一致。非校对酶,例如 Taq DNA 聚合酶,虽然主要被该结构阻止,但并未将这种修饰识别为强终止子。总之,CNA 单元的这种首次功能用途表明,这些修饰的核苷酸可以用作校对聚合酶的新型聚合终止子。此外,我们的结果使我们提出 CNA 及其衍生物可以成为研究不同类聚合酶行为的有用工具。
