应变不敏感光纤布拉格光栅传感器的超声灵敏度及超声致应变的评估。

Ultrasonic sensitivity of strain-insensitive fiber Bragg grating sensors and evaluation of ultrasound-induced strain.

机构信息

National Institute of Advanced Industrial Science & Technology/AIST Tsukuba Central 2, Tsukuba, 305-8568, Japan.

出版信息

Sensors (Basel). 2010;10(12):11248-58. doi: 10.3390/s101211248. Epub 2010 Dec 8.

Abstract

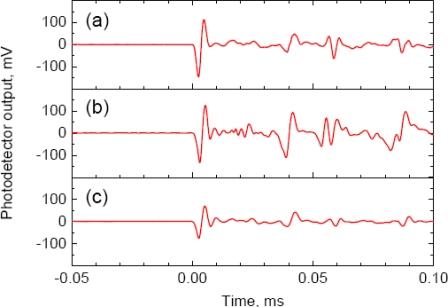

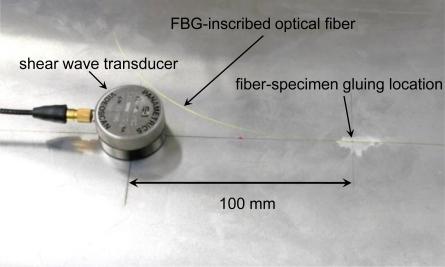

In conventional ultrasound detection in structures, a fiber Bragg grating (FBG) is glued on or embedded in the structure. However, application of strain to the structure can influence the sensitivity of the FBG toward ultrasound and can prevent its effective detection. An FBG can work as a strain-insensitive ultrasound sensor when it is not directly glued to the monitored structure, but is instead applied to a small thin plate to form a mobile sensor. Another possible configuration is to affix an FBG-inscribed optical fiber without the grating section attached to the monitored structure. In the present study, sensitivity to ultrasound propagated through an aluminum plate was compared for a strain-insensitive FBG sensor and an FBG sensor installed in a conventional manner. Strains induced by ultrasound from a piezoelectric transducer and by quasi-acoustic emission of a pencil lead break were also quantitatively evaluated from the response amplitude of the FBG sensor. Experimental results showed that the reduction in the signal-to-noise ratio for ultrasound detection with strain-insensitive FBG sensors, relative to traditionally-installed FBG sensors, was only 6 dB, and the ultrasound-induced strain varied within a range of sub-micron strains.

摘要

在传统的结构超声检测中,光纤布拉格光栅(FBG)被粘贴或嵌入结构中。然而,结构中的应变会影响 FBG 对超声的灵敏度,并可能阻止其有效检测。当 FBG 未直接粘贴到被监测结构上,而是应用于小薄板以形成移动传感器时,它可以作为应变不敏感的超声传感器工作。另一种可能的配置是将没有光栅部分的光纤布拉格光栅光纤粘贴到被监测结构上。在本研究中,通过比较通过铝板传播的超声的灵敏度,评估了应变不敏感 FBG 传感器和以传统方式安装的 FBG 传感器。还从 FBG 传感器的响应幅度定量评估了来自压电换能器的超声和铅笔芯折断的准声发射引起的应变。实验结果表明,相对于传统安装的 FBG 传感器,应变不敏感 FBG 传感器的超声检测信号噪声比降低仅为 6dB,并且超声引起的应变在亚微米应变范围内变化。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4a7c/3231070/1da44f9a41a9/sensors-10-11248f1.jpg
