catena-Poly[{μ(3)-4,4',6,6'-tetra-bromo-2,2'-[butane-1,4-diylbis(nitrilo-methan-ylyl-idene)]diphenolato}{μ(2)-4,4',6,6'-tetra-bromo-2,2'-[butane-1,4-diylbis(nitrilo-methanylyl-idene)]dipheno-lato}dicopper(II)].

作者信息

Kargar Hadi, Kia Reza, Adabi Ardakani Amir, Tahir Muhammad Nawaz

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2012 Jul 1;68(Pt 7):m1018-9. doi: 10.1107/S1600536812029285. Epub 2012 Jun 30.

Abstract

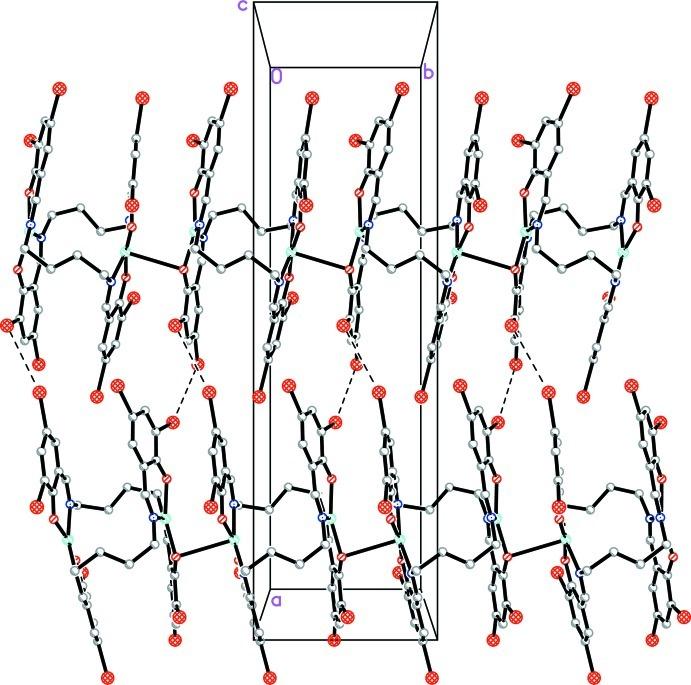

The asymmetric unit of the title coordination polymer consists of a dinuclear neutral complex mol-ecule of formula Cu(2)(C(18)H(14)Br(4)N(2)O(2))(2). One of the Cu(II) ions is coordinated in a distorted square-planar geometry, whereas the other is coordinated in a distorted square-pyramidal geometry, the long apical Cu-O bond [2.885 (4) Å] of the square-pyramidal coordination being provided by a symmetry-related O atom creating a one-dimensional polymer along [010]. π-π stacking inter-actions [centroid-centroid distance = 3.783 (4) Å] and short inter-chain Br⋯Br inter-actions [3.6142 (12)-3.6797 (12) Å] are observed.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8943/3393252/79c4f9b1f6b2/e-68-m1018-fig1.jpg
