Institute of Biomedical Technology, University of Tampere, Tampere, Finland.
PLoS One. 2012;7(9):e44660. doi: 10.1371/journal.pone.0044660. Epub 2012 Sep 4.
Induced pluripotent stem cells (iPSC) provide means to study the pathophysiology of genetic disorders. Catecholaminergic polymorphic ventricular tachycardia (CPVT) is a malignant inherited ion channel disorder predominantly caused by mutations in the cardiac ryanodine receptor (RyR2). In this study the cellular characteristics of CPVT are investigated and whether the electrophysiological features of this mutation can be mimicked using iPSC -derived cardiomyocytes (CM).

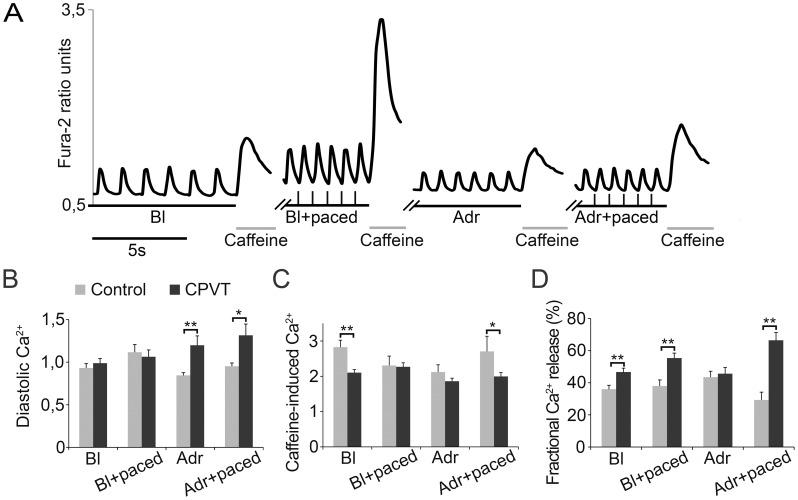

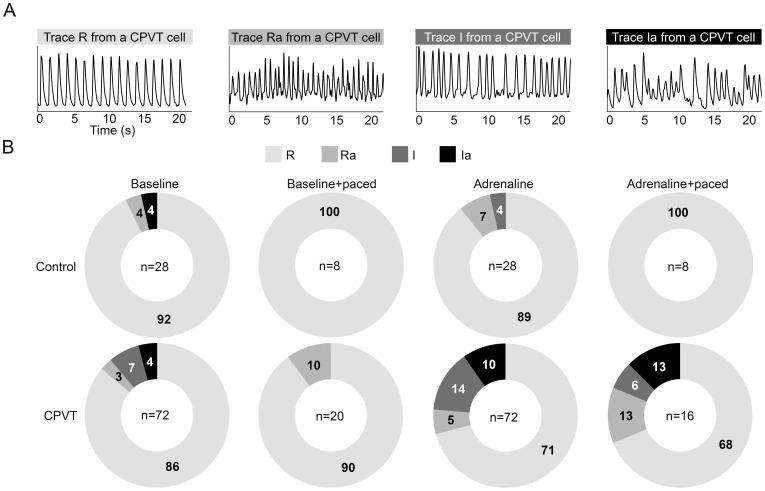

METHODOLOGY/PRINCIPAL FINDINGS: Spontaneously beating CMs were differentiated from iPSCs derived from a CPVT patient carrying a P2328S mutation in RyR2 and from two healthy controls. Calcium (Ca(2+)) cycling and electrophysiological properties were studied by Ca(2+) imaging and patch-clamp techniques. Monophasic action potential (MAP) recordings and 24h-ECGs of CPVT-P2328S patients were analyzed for the presence of afterdepolarizations. We found defects in Ca(2+) cycling and electrophysiology in CPVT CMs, reflecting the cardiac phenotype observed in the patients. Catecholaminergic stress led to abnormal Ca(2+) signaling and induced arrhythmias in CPVT CMs. CPVT CMs also displayed reduced sarcoplasmic reticulum (SR) Ca(2+) content, indicating leakage of Ca(2+) from the SR. Patch-clamp recordings of CPVT CMs revealed both delayed afterdepolarizations (DADs) during spontaneous beating and in response to adrenaline and also early afterdepolarizations (EADs) during spontaneous beating, recapitulating the changes seen in MAP and 24h-ECG recordings of patients carrying the same mutation.
CONCLUSIONS/SIGNIFICANCE: This cell model shows aberrant Ca(2+) cycling characteristic of CPVT and in addition to DADs it displays EADs. This cell model for CPVT provides a platform to study basic pathology, to screen drugs, and to optimize drug therapy.
诱导多能干细胞(iPSC)为研究遗传疾病的病理生理学提供了手段。儿茶酚胺多形性室性心动过速(CPVT)是一种主要由心脏兰尼碱受体(RyR2)突变引起的恶性遗传性离子通道疾病。在这项研究中,研究了 CPVT 的细胞特征,以及是否可以使用源自 iPSC 的心肌细胞(CM)模拟这种突变的电生理特征。
方法/主要发现:从携带 RyR2 中的 P2328S 突变的 CPVT 患者和两名健康对照者的 iPSC 中分化出自发搏动的 CM。通过钙(Ca(2+))成像和膜片钳技术研究 Ca(2+)循环和电生理特性。分析 CPVT-P2328S 患者的单相动作电位(MAP)记录和 24 小时心电图以检测迟后除极的存在。我们发现 CPVT CM 中 Ca(2+)循环和电生理学存在缺陷,反映了患者中观察到的心脏表型。儿茶酚胺应激导致 CPVT CM 中异常的 Ca(2+)信号传导并引发心律失常。CPVT CM 还显示出肌浆网(SR)Ca(2+)含量减少,表明 Ca(2+)从 SR 漏出。CPVT CM 的膜片钳记录显示,在自发性搏动期间和肾上腺素反应期间都出现延迟后除极(DAD),并且在自发性搏动期间还出现早期后除极(EAD),再现了携带相同突变的患者的 MAP 和 24 小时心电图记录中观察到的变化。
结论/意义:这种细胞模型显示出 CPVT 特征性的异常 Ca(2+)循环,除 DAD 外,还显示 EAD。这种 CPVT 细胞模型为研究基础病理学、筛选药物和优化药物治疗提供了平台。
