School of Mechanical and Chemical Engineering, University of Western Australia, 35 Stirling Hwy, Crawley, Western Australia, 6009, Australia.
Nanoscale Res Lett. 2012 Nov 24;7(1):645. doi: 10.1186/1556-276X-7-645.

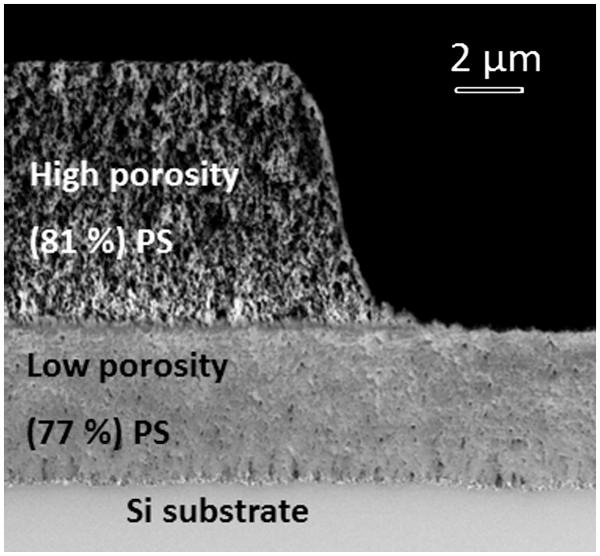

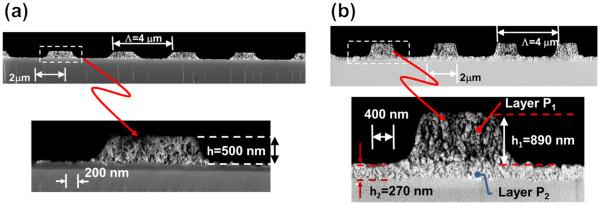

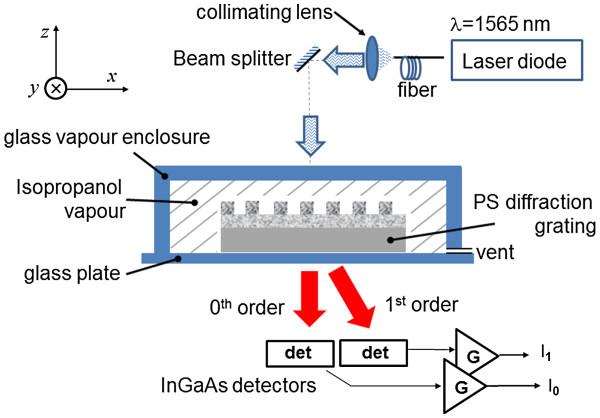

Transmission diffraction gratings operating at 1,565 nm based on multilayer porous silicon films are modeled, fabricated, and tested. Features down to 2 μm have been patterned into submicron-thick mesoporous films using standard photolithographic and dry etching techniques. After patterning of the top porous film, a second anodization can be performed, allowing an under-layer of highly uniform porosity and thickness to be achieved. High transmission greater than 40% is measured, and modeling results suggest that a change in diffraction efficiency of 1 dB for a 1% change in normalized refractive index can be achieved. Preliminary measurement of solvent vapor shows a large signal change from the grating sensor in agreement with models.
基于多层多孔硅膜的 1565nm 传输衍射光栅进行了建模、制作和测试。使用标准光刻和干法刻蚀技术,将特征尺寸缩小到 2μm 以下,在亚微米厚的介孔薄膜上进行图案化。在顶部多孔膜进行图案化后,可以进行第二次阳极氧化,从而实现高度均匀的多孔层和厚度。测量得到的透过率大于 40%,并且建模结果表明,归一化折射率变化 1%时,衍射效率可以变化 1dB。对溶剂蒸气的初步测量显示,光栅传感器的信号变化很大,与模型一致。
