Puica I, Lang W, Durrell J H
University of Vienna, Faculty of Physics, Boltzmanngasse 5, A-1090 Wien, Austria.
Physica C Supercond. 2012 Sep;479(17):88-91. doi: 10.1016/j.physc.2011.12.036.

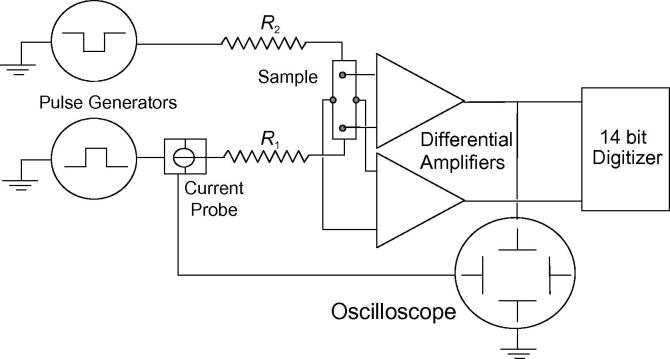

We report on electrical transport measurements at high current densities on optimally doped YBaCuO thin films grown on vicinal SrTiO substrates. Data were collected by using a pulsed-current technique in a four-probe arrangement, allowing to extend the current-voltage characteristics to high supercritical current densities (up to 24 MA cm) and high electric fields (more than 20 V/cm), in the superconducting state at temperatures between 30 and 80 K. The electric measurements were performed on tracks perpendicular to the vicinal step direction, such that the current crossed between planes, under magnetic field rotated in the plane defined by the crystallographic axis and the current density. At magnetic field orientation parallel to the cuprate layers, evidence for the sliding motion along the planes (vortex channeling) was found. The signature of vortex channeling appeared to get enhanced with increasing electric field, due to the peculiar depinning features in the kinked vortex range. They give rise to a current-voltage characteristics steeper than in the more off-plane rectilinear vortex orientations, in the electric field range below approximately 1 V/cm. Roughly above this value, the high vortex channeling velocities (up to 8.6 km/s) could be ascribed to the flux flow, although the signature of ohmic transport appeared to be altered by unavoidable macroscopic self-heating and hot-electron-like effects.
我们报告了在近邻 SrTiO 衬底上生长的最佳掺杂 YBaCuO 薄膜在高电流密度下的电输运测量结果。数据是通过在四探针配置中使用脉冲电流技术收集的,这使得在 30 至 80 K 的温度下,在超导状态下能够将电流 - 电压特性扩展到高超临界电流密度(高达 24 MA/cm²)和高电场(超过 20 V/cm)。电学测量是在垂直于近邻台阶方向的轨道上进行的,这样电流就在 ab 平面之间通过,磁场在由晶体学 c 轴和电流密度定义的平面内旋转。在磁场方向平行于铜酸盐层时,发现了沿 ab 平面的滑动运动(涡旋通道化)的证据。由于扭结涡旋范围内特殊的脱钉特性,涡旋通道化的特征似乎随着电场增加而增强。在低于约 1 V/cm 的电场范围内,它们导致的电流 - 电压特性比在更多面外直线涡旋取向中更陡峭。大致高于这个值时,尽管由于不可避免的宏观自热和类似热电子的效应,欧姆输运的特征似乎发生了改变,但高涡旋通道化速度(高达 8.6 km/s)可归因于磁通流。
