Rapid assessment of homogeneity and stability of amorphous solid dispersions by atomic force microscopy--from bench to batch.

PURPOSE

To verify the robustness and fundamental value of Atomic Force Microscopy (AFM) and AFM-based assays to rapidly examine the molecular homogeneity and physical stability of amorphous solid dispersions on Hot-Melt-Extrudates.

METHODS

Amorphous solid dispersions were prepared with a Hot-Melt Extruder (HME) and profiled by Raman Microscopy and AFM following a sequential analytical routine (Multi-Scale-Imaging-of-Miscibiliy (MIMix)). Extrudates were analyzed before and after incubation at elevated temperature and humidity. The data were compared with published results as collected on miniaturized melt models. The value of molecular phase separation rates for long term stability prediction was assessed.

RESULTS

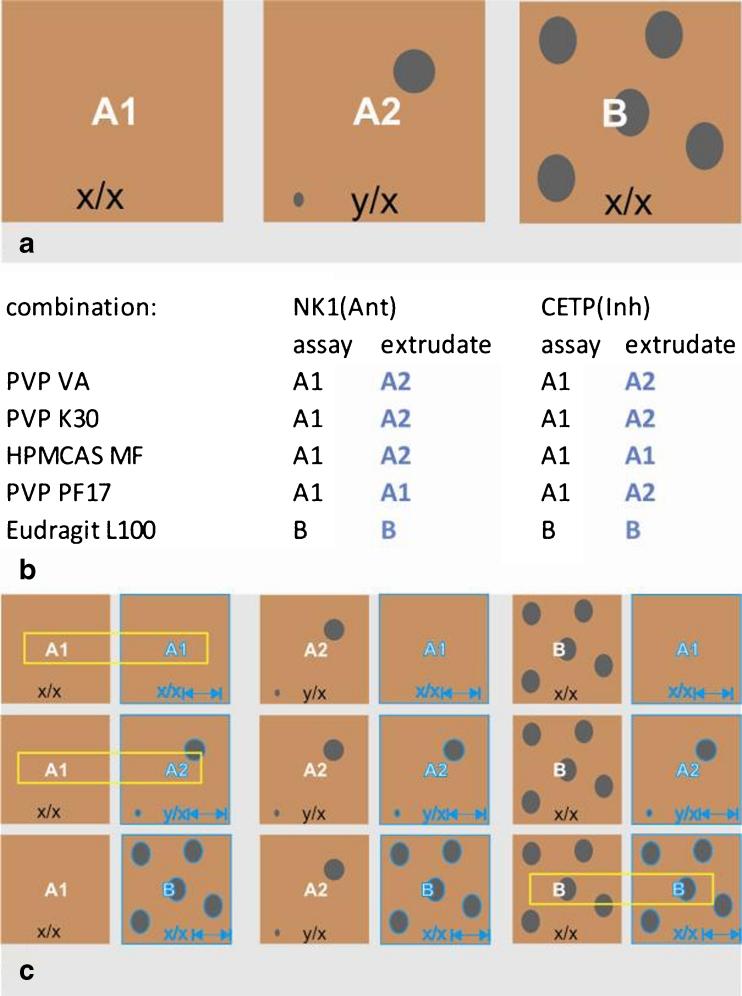

Data recorded on the extrudates are consistent with those published, and they can be compared side by side. Such direct data comparisons allow the identification of possible sources of extrudate heterogeneities. The surface roughness analysis of fracture-exposed interfaces is a novel quantitative way to trace on the nanometer scale the efficiencies of differently conducted HME-processes. Molecular phase separation rates are shown to be relevant for long term stability predictions.

CONCLUSIONS

The AFM-based assessment of API:excipient combinations is a robust method to rapidly identify miscible and stable solid dispersions in a routine manner. It provides a novel analytical tool for the optimization of HME processes.
