Poly[bis-{μ-N'-[(pyridin-4-yl)methyl-idene]benzohydrazidato}copper(II)].

作者信息

Wu Qiong, Chen Da-Chi, Wu Chu-Yi, Yan Chang-Xiu, Liao Jian-Zhen

机构信息

Department of Chemistry, Fuzhou University, Fuzhou, Fujian 350108, People's Republic of China.

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2013 Jun 15;69(Pt 7):m383. doi: 10.1107/S1600536813015882. eCollection 2013.

Abstract

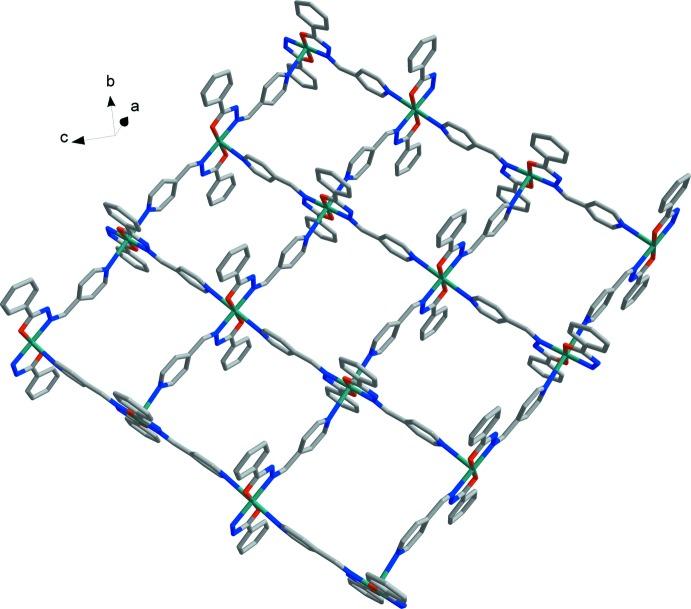

In the title complex, [Cu(C13H10N3O)2] n , the copper(II) cation is located on a crystallographic inversion centre and adopts an elongated octa-hedral coordination geometry with the equatorial plane provided by trans-arranged bis-N,O-chelating acyl-hydrazine groups from two ligands and the apices by the N atoms of two pyridine rings belonging to symmetry-related ligands. The ligand adopts a Z conformation about the C=N double bond. The dihedral angle between the pyridine and phenyl rings is 2.99 (13)°. An intra-ligand C-H⋯N hydrogen bond is observed. In the crystal, each ligand bridges two adjacent metal ions, forming a (4,4) grid layered structure. π-π stacking inter-actions [centroid-centroid distances in the range 3.569 (4)-3.584 (9) Å] involving rings of adjacent layers result in the formation of a three-dimensional supra-molecular network.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/3c08/3772419/5542f47b358c/e-69-0m383-fig1.jpg
