King Allison, Chakrabarty Souvik, Zhang Wei, Zeng Xiaomei, Ohman Dennis E, Wood Lynn F, Abraham Sheena, Rao Raj, Wynne Kenneth J
Department of Chemical and Life Science Engineering, ‡Department of Microbiology and Immunology, and ∥Integrated Life Sciences Program, Virginia Commonwealth University Richmond, Virginia 23284, United States.
Biomacromolecules. 2014 Feb 10;15(2):456-67. doi: 10.1021/bm401794p. Epub 2014 Jan 22.

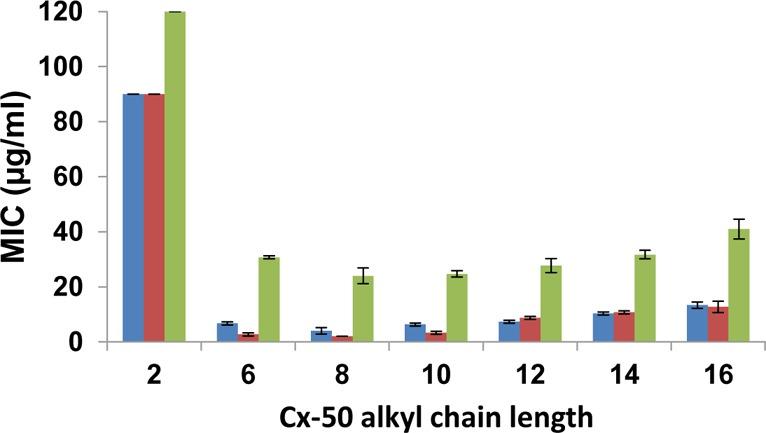

The alkyl chain length of quaternary ammonium/PEG copolyoxetanes has been varied to discern effects on solution antimicrobial efficacy, hemolytic activity and cytotoxicity. Monomers 3-((4-bromobutoxy)methyl)-3-methyloxetane (BBOx) and 3-((2-(2-methoxyethoxy)ethoxy)methyl)-3-methyloxetane (ME2Ox) were used to prepare precursor P[(BBOx)(ME2Ox)-50:50-4 kDa] copolyoxetane via cationic ring opening polymerization. The 1:1 copolymer composition and Mn (4 kDa) were confirmed by (1)H NMR spectroscopy. After C-Br substitution by a series of tertiary amines, ionic liquid Cx-50 copolyoxetanes were obtained, where 50 is the mole percent of quaternary repeat units and "x" is quaternary alkyl chain length (2, 6, 8, 10, 12, 14, or 16 carbons). Modulated differential scanning calorimetry (MDSC) studies showed Tgs between -40 and -60 °C and melting endotherms for C14-50 and C16-50. Minimum inhibitory concentrations (MIC) were determined for Escherichia coli , Staphylococcus aureus , and Pseudomonas aeruginosa . A systematic dependence of MIC on alkyl chain length was found. The most effective antimicrobials were in the C6-50 to C12-50 range. C8-50 had better overall performance with MICs of 4 μg/mL, E. coli ; 2 μg/mL, S. aureus ; and 24 μg/mL, P. aeruginosa . At 5 × MIC, C8-50 effected >99% kill in 1 h against S. aureus , E. coli , and P. aeruginosa challenges of 10(8) cfu/mL; log reductions (1 h) were 7, 3, and 5, respectively. To provide additional insight into polycation interactions with bacterial membranes, a geometric model based on the dimensions of E. coli is described that provides an estimate of the maximum number of polycations that can chemisorb. Chain dimensions were estimated for polycation C8-50 with a molecular weight of 5 kDa. Considering the approximations for polycation chemisorption (PCC), it is surprising that a calculation based on geometric considerations gives a C8-50 concentration within a factor of 2 of the MIC, 4.0 (±1.2) μg/mL for E. coli . Cx-50 copolyoxetane cytotoxicity was low for human red blood cells, human dermal fibroblasts (HDF), and human foreskin fibroblasts (HFF). Selectivities for bacterial kill over cell lysis were among the highest ever reported for polycations indicating good prospects for biocompatibility.
已改变季铵盐/聚乙二醇共聚氧杂环丁烷的烷基链长度,以探究其对溶液抗菌效果、溶血活性和细胞毒性的影响。单体3-((4-溴丁氧基)甲基)-3-甲基氧杂环丁烷(BBOx)和3-((2-(2-甲氧基乙氧基)乙氧基)甲基)-3-甲基氧杂环丁烷(ME2Ox)用于通过阳离子开环聚合制备前体P[(BBOx)(ME2Ox)-50:50-4 kDa]共聚氧杂环丁烷。通过(1)H NMR光谱确认了1:1的共聚物组成和Mn(4 kDa)。在通过一系列叔胺进行C-Br取代后,获得了离子液体Cx-50共聚氧杂环丁烷,其中50是季铵重复单元的摩尔百分比,“x”是季铵烷基链长度(2、6、8、10、12、14或16个碳)。调制差示扫描量热法(MDSC)研究表明,C14-50和C16-50的玻璃化转变温度在-40至-60°C之间,且有熔融吸热峰。测定了大肠杆菌、金黄色葡萄球菌和铜绿假单胞菌的最低抑菌浓度(MIC)。发现MIC对烷基链长度存在系统性依赖性。最有效的抗菌剂在C6-50至C12-50范围内。C8-50具有更好的综合性能,对大肠杆菌的MIC为4 μg/mL,对金黄色葡萄球菌为2 μg/mL,对铜绿假单胞菌为24 μg/mL。在5倍MIC浓度下,C8-50在1小时内对10(8) cfu/mL的金黄色葡萄球菌、大肠杆菌和铜绿假单胞菌挑战实现了>99%的杀灭;对数减少量(1小时)分别为7、3和5。为了进一步深入了解聚阳离子与细菌膜的相互作用,描述了一种基于大肠杆菌尺寸的几何模型,该模型可估算能够化学吸附的聚阳离子的最大数量。估算了分子量为5 kDa的聚阳离子C8-50的链尺寸。考虑到聚阳离子化学吸附(PCC)中的近似值,令人惊讶的是,基于几何考虑的计算得出的C8-50浓度与大肠杆菌的MIC(4.0(±1.2)μg/mL)相差不超过2倍。Cx-50共聚氧杂环丁烷对人红细胞、人皮肤成纤维细胞(HDF)和人包皮成纤维细胞(HFF)的细胞毒性较低。对细菌杀灭相对于细胞裂解的选择性是聚阳离子报道中最高的之一,表明其具有良好的生物相容性前景。
