Gültekin Zeynep, Frey Wolfgang, Hökelek Tuncer
Department of Chemistry, Çankırı Karatekin University, TR-18100 Çankırı, Turkey.
Universität Stuttgart, Pfaffenwaldring 55, D-70569 Stuttgart, Germany.
Acta Crystallogr Sect E Struct Rep Online. 2013 Aug 31;69(Pt 9):o1476. doi: 10.1107/S1600536813023544. eCollection 2013.

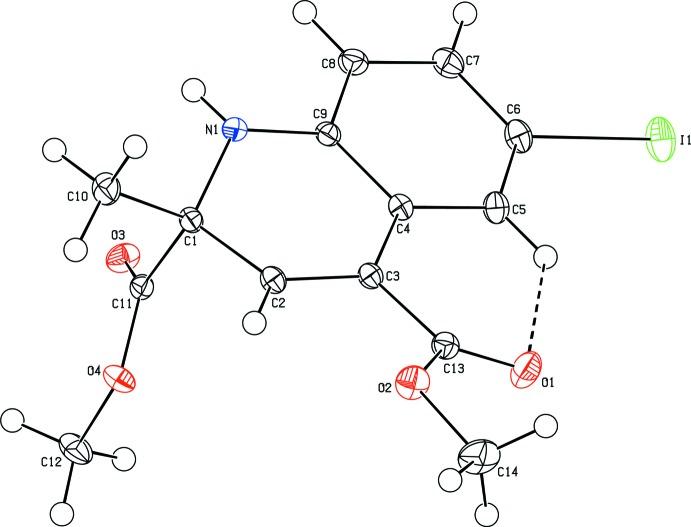

In the title compound, C14H14INO4, the di-hydro-pyridine ring adopts a twist conformation. In the crystal, pairs of N-H⋯O and C-H⋯O hydrogen bonds link the mol-ecules into inversion R 2 (2)(10) and R 2 (2)(18) dimers, forming infinite double chains running along the c axis.
在标题化合物C₁₄H₁₄INO₄中，二氢吡啶环呈扭曲构象。在晶体中，N-H⋯O和C-H⋯O氢键对将分子连接成R₂²(10)和R₂²(18)反演二聚体，形成沿c轴延伸的无限双链。
