Reichelt Martin, Reuter Hans
Institut für Chemie neuer Materialien, Universität Osnabrück, Barbarastrasse 7, D-49069 Osnabrück, Germany.
Acta Crystallogr Sect E Struct Rep Online. 2014 Mar 15;70(Pt 4):m133. doi: 10.1107/S160053681400539X. eCollection 2014 Apr 1.

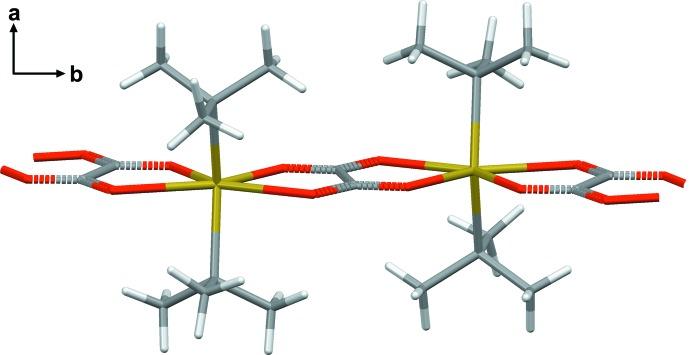

The title compound, [Sn(C4H9)2(C2O4)] n , an unexpected side product in the reaction of di-tert-butyl-tin(IV) oxide with nitric acid, represents the first diorganotin(IV) oxalate to be structurally characterized. The Sn(IV) atom of the one-dimensional coordination polymer is located on a mirror plane and is coordinated by two chelating oxalate ions with two rather different Sn-O bond lengths of 2.150 (1) and 2.425 (1) Å, and two t-butyl groups with Sn-C bond lengths of 2.186 (2) and 2.190 (2) Å. The coordination polyhedron around the Sn(IV) atom is a distorted tetra-gonal disphenoid. The centrosymmetric oxalate ion also has an asymmetric coordination geometry, as reflected by the two slightly different C-O bond lengths of 1.242 (2) and 1.269 (2) Å. The chains of the polymer propagate along the b-axis direction. Only van der Waals inter-actions are observed between the chains.
标题化合物[Sn(C₄H₉)₂(C₂O₄)]ₙ是二叔丁基锡(IV)氧化物与硝酸反应中意外得到的副产物,它是首个经结构表征的二有机锡(IV)草酸盐。一维配位聚合物中的Sn(IV)原子位于一个镜面上,由两个螯合的草酸根离子配位,两个Sn - O键长差异较大,分别为2.150 (1) Å和2.425 (1) Å,还有两个叔丁基,Sn - C键长分别为2.186 (2) Å和2.190 (2) Å。Sn(IV)原子周围的配位多面体是一个扭曲的四方双楔体。中心对称的草酸根离子也具有不对称的配位几何结构,这体现在两个C - O键长略有不同,分别为1.242 (2) Å和1.269 (2) Å。聚合物链沿b轴方向延伸。链与链之间仅观察到范德华相互作用。
