Kim Jae Hyun, Choi Seung Hong, Ryoo Inseon, Yun Tae Jin, Kim Tae Min, Lee Se-Hoon, Park Chul-Kee, Kim Ji-Hoon, Sohn Chul-Ho, Park Sung-Hye, Kim Il Han
Department of Radiology, Seoul National University College of Medicine, Seoul, Korea.
Department of Radiology, Seoul National University College of Medicine, Seoul, Korea; Center for Nanoparticle Research, Institute for Basic Science, and School of Chemical and Biological Engineering, Seoul National University, Seoul, Korea.
PLoS One. 2014 Nov 24;9(11):e113587. doi: 10.1371/journal.pone.0113587. eCollection 2014.
To assess the prognosis predictability of a measurable enhancing lesion using histogram parameters produced by the normalized cerebral blood volume (nCBV) and normalized apparent diffusion coefficient (nADC) after completion of standard concomitant chemoradiotherapy (CCRT) and adjuvant temozolomide (TMZ) medication in glioblastoma multiforme (GBM) patients.

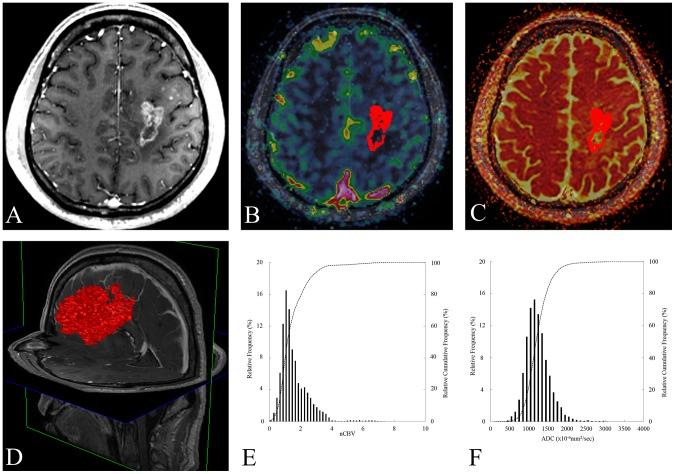

This study was approved by the institutional review board (IRB), and the requirement for informed consent was waived. A total of 59 patients with newly diagnosed GBM who received standard CCRT with TMZ and adjuvant TMZ for six cycles underwent perfusion-weighted and diffusion-weighted imaging. Twenty-seven patients had a measurable enhancing lesion and 32 patients lacked a measurable enhancing lesion based on the Response Assessment in Neuro-Oncology (RANO) criteria in the follow-up MRI, which was performed within 3 months after adjuvant TMZ therapy was completed. We measured the nCBV and nADC histogram parameters based on the measurable enhancing lesion. The progression free survival (PFS) was analyzed by the Kaplan-Meier method with the use of the log-rank test.

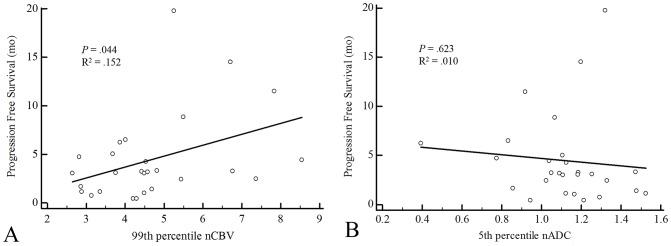

The median PFS of patients lacking measurable enhancing lesion was longer than for those with measurable enhancing lesions (17.6 vs 3.3 months, P<.0001). There was a significant, positive correlation between the 99th percentile nCBV value of a measurable enhancing lesion and the PFS (P= .044, R(2)= .152). In addition, the median PFS was longer in patients with a 99th percentile nCBV value ≧ 4.5 than it was in those with a value <4.5 (4.4 vs 3.1 months, P = .036).
We found that the nCBV value can be used for the prognosis prediction of a measurable enhancing lesion after the completion of standard treatment for GBM, wherein a high 99th percentile nCBV value (≧ 4.5) suggests a better PFS for GBM patients.
评估多形性胶质母细胞瘤(GBM)患者在完成标准同步放化疗(CCRT)及辅助替莫唑胺(TMZ)治疗后,利用归一化脑血容量(nCBV)和归一化表观扩散系数(nADC)产生的直方图参数对可测量强化病灶进行预后预测的能力。
本研究经机构审查委员会(IRB)批准,豁免了知情同意的要求。共有59例新诊断的GBM患者接受了标准CCRT联合TMZ及六个周期的辅助TMZ治疗,并进行了灌注加权成像和扩散加权成像。根据神经肿瘤疗效评估(RANO)标准,在辅助TMZ治疗完成后3个月内进行的随访磁共振成像(MRI)中,27例患者有可测量的强化病灶,32例患者没有可测量的强化病灶。我们基于可测量的强化病灶测量了nCBV和nADC直方图参数。采用Kaplan-Meier法和对数秩检验分析无进展生存期(PFS)。
无可测量强化病灶患者的中位PFS长于有可测量强化病灶的患者(17.6个月对3.3个月,P<0.0001)。可测量强化病灶的第99百分位数nCBV值与PFS之间存在显著的正相关(P = 0.044,R² = 0.152)。此外,第99百分位数nCBV值≥4.5的患者中位PFS长于nCBV值<4.5的患者(4.4个月对3.1个月,P = 0.036)。
我们发现,nCBV值可用于GBM标准治疗完成后可测量强化病灶的预后预测,其中第99百分位数nCBV值高(≥4.5)提示GBM患者的PFS较好。
