Collaborative Innovation Center of Chemistry for Energy Materials (iChEM), Department of Chemistry, Fudan University, 220 Handan Road, Shanghai 200433, China.
Laboratory of Synthetic and Self-Assembly Chemistry for Organic Functional Molecules, Shanghai Institute of Organic Chemistry, Chinese Academy of Sciences, 345 Lingling Lu, Shanghai 200032, China.
Nat Commun. 2014 Dec 3;5:5574. doi: 10.1038/ncomms6574.

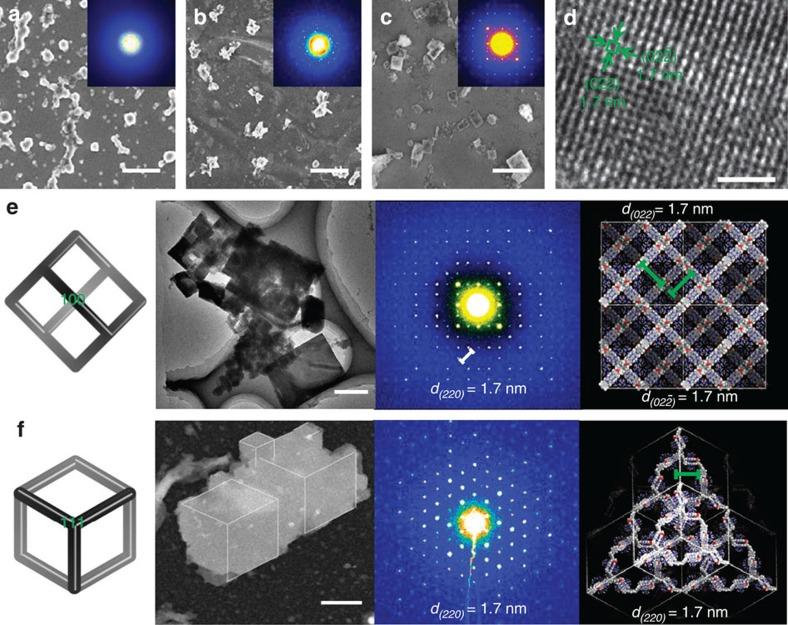

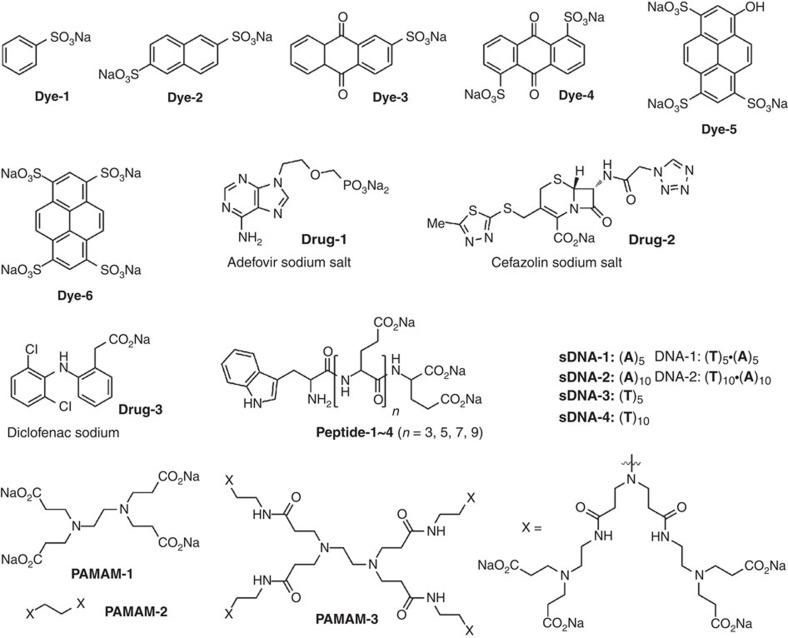

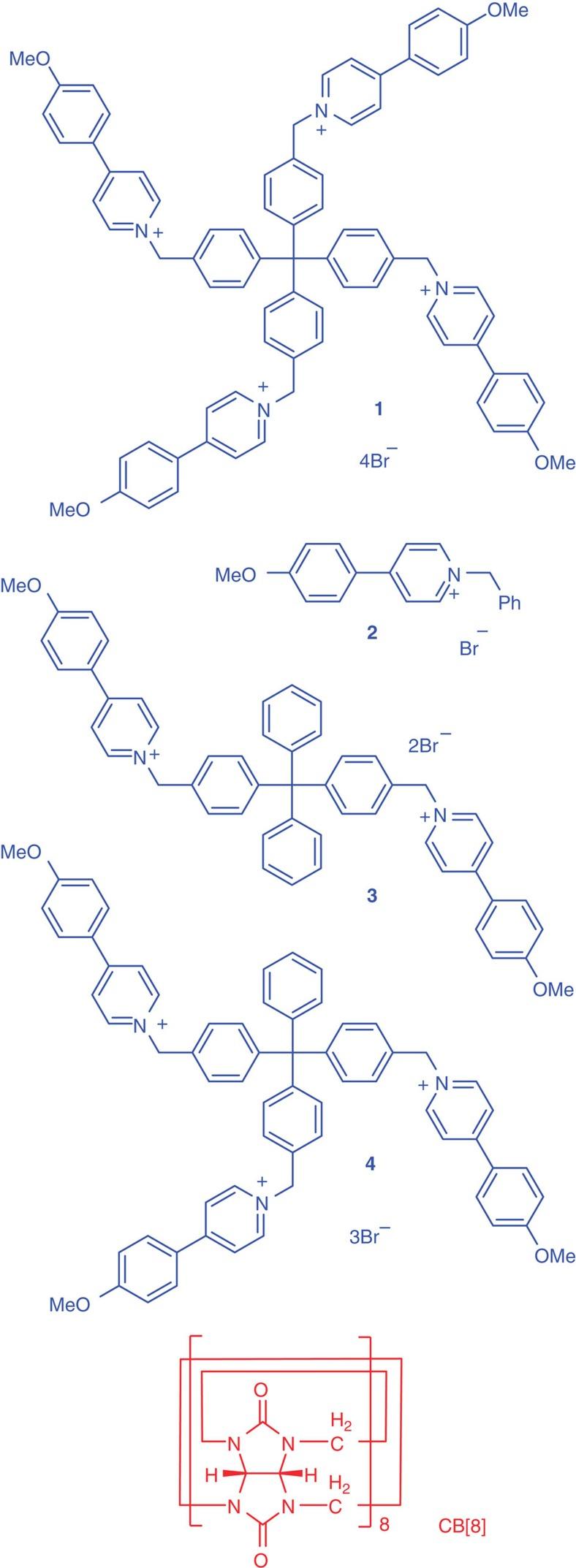

Self-assembly has emerged as a powerful approach to generating complex supramolecular architectures. Despite there being many crystalline frameworks reported in the solid state, the construction of highly soluble periodic supramolecular networks in a three-dimensional space is still a challenge. Here we demonstrate that the encapsulation motif, which involves the dimerization of two aromatic units within cucurbit[8]uril, can be used to direct the co-assembly of a tetratopic molecular block and cucurbit[8]uril into a periodic three-dimensional supramolecular organic framework in water. The periodicity of the supramolecular organic framework is supported by solution-phase small-angle X-ray-scattering and diffraction experiments. Upon evaporating the solvent, the periodicity of the framework is maintained in porous microcrystals. As a supramolecular 'ion sponge', the framework can absorb different kinds of anionic guests, including drugs, in both water and microcrystals, and drugs absorbed in microcrystals can be released to water with selectivity.
自组装已成为一种生成复杂超分子结构的有力方法。尽管在固态中已经报道了许多晶体骨架,但在三维空间中构建高度可溶的周期性超分子网络仍然是一个挑战。在这里,我们证明了包含葫芦[8]脲内两个芳基单元二聚化的封装基序可用于指导四齿分子砌块和葫芦[8]脲在水中共组装成周期性的三维超分子有机骨架。该超分子有机骨架的周期性由溶液相小角 X 射线散射和衍射实验得到支持。在蒸发溶剂后,骨架的周期性在多孔微晶体中得以保持。作为一个超分子“离子海绵”,该骨架可以在水和微晶体中吸收不同种类的阴离子客体,包括药物,并且微晶体中吸收的药物可以选择性地释放到水中。
