Schwiesau Jens, Fritz Bernhard, Kutzner Ines, Bergmann Georg, Grupp Thomas M
Aesculap AG, Research & Development, Am Aesculap Platz, 78532 Tuttlingen, Germany.
Julius Wolff Institut, Charité-Universitätsmedizin Berlin, Augustenburger Platz 1, 13353 Berlin, Germany.
Biomed Res Int. 2014;2014:567374. doi: 10.1155/2014/567374. Epub 2014 Nov 20.

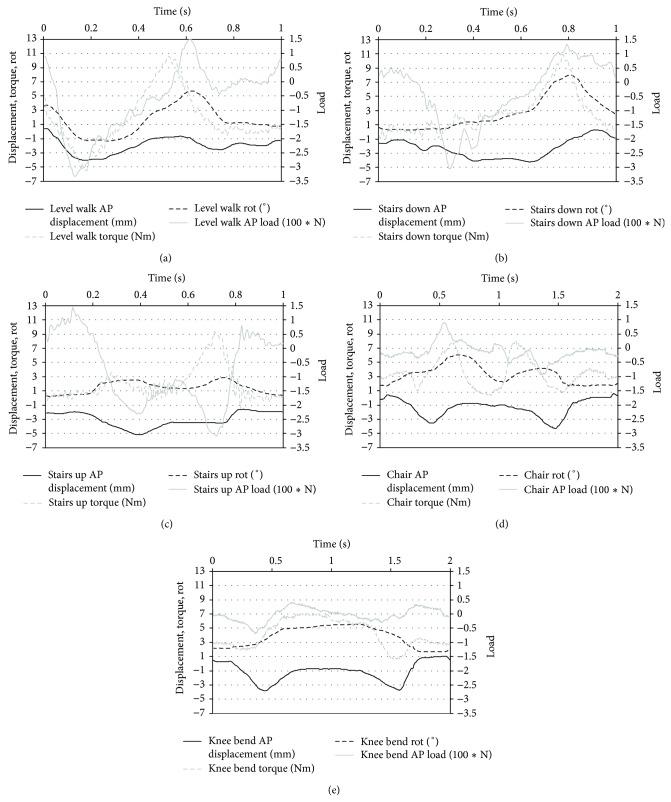

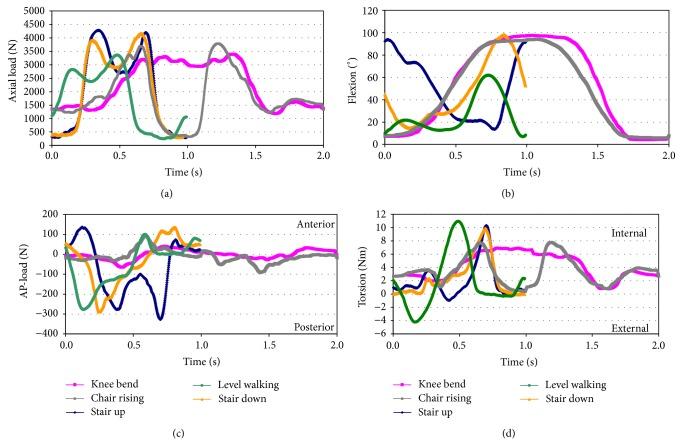

The wear behaviour of total knee arthroplasty (TKA) is dominated by two wear mechanisms: the abrasive wear and the delamination of the gliding components, where the second is strongly linked to aging processes and stress concentration in the material. The addition of vitamin E to the bulk material is a potential way to reduce the aging processes. This study evaluates the wear behaviour and delamination susceptibility of the gliding components of a vitamin E blended, ultra-high molecular weight polyethylene (UHMWPE) cruciate retaining (CR) total knee arthroplasty. Daily activities such as level walking, ascending and descending stairs, bending of the knee, and sitting and rising from a chair were simulated with a data set received from an instrumented knee prosthesis. After 5 million test cycles no structural failure of the gliding components was observed. The wear rate was with 5.62 ± 0.53 mg/million cycles falling within the limit of previous reports for established wear test methods.
全膝关节置换术(TKA)的磨损行为主要由两种磨损机制主导:磨料磨损和滑动部件的分层,其中第二种机制与材料的老化过程和应力集中密切相关。在块状材料中添加维生素E是减少老化过程的一种潜在方法。本研究评估了一种添加维生素E的超高分子量聚乙烯(UHMWPE)保留十字韧带(CR)全膝关节置换术滑动部件的磨损行为和分层敏感性。利用从仪器化膝关节假体获得的数据集模拟了诸如平地行走、上下楼梯、膝关节弯曲以及从椅子上坐起和站起等日常活动。在500万次测试循环后,未观察到滑动部件的结构失效。磨损率为5.62±0.53毫克/百万次循环,处于以往既定磨损测试方法报告的范围内。
