用于光学/磁共振双模成像的靶向胶质瘤胶束

Glioma-targeting micelles for optical/magnetic resonance dual-mode imaging.

作者信息

Zhou Qing, Mu Ketao, Jiang Lingyu, Xie Hui, Liu Wei, Li Zhengzheng, Qi Hui, Liang Shuyan, Xu Huibi, Zhu Yanhong, Zhu Wenzhen, Yang Xiangliang

机构信息

National Engineering Research Center for Nanomedicine, College of Life Science and Technology, Huazhong University of Science and Technology, Wuhan, People's Republic of China.

Radiology Department, Tongji Hospital, Tongji Medical College, Huazhong University of Science and Technology, Wuhan, People's Republic of China.

出版信息

Int J Nanomedicine. 2015 Mar 5;10:1805-18. doi: 10.2147/IJN.S72910. eCollection 2015.


DOI:10.2147/IJN.S72910
PMID:25784806
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC4356700/
Abstract

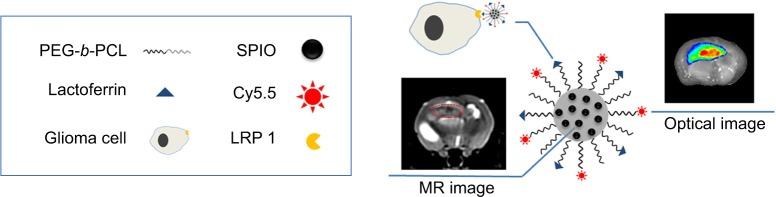

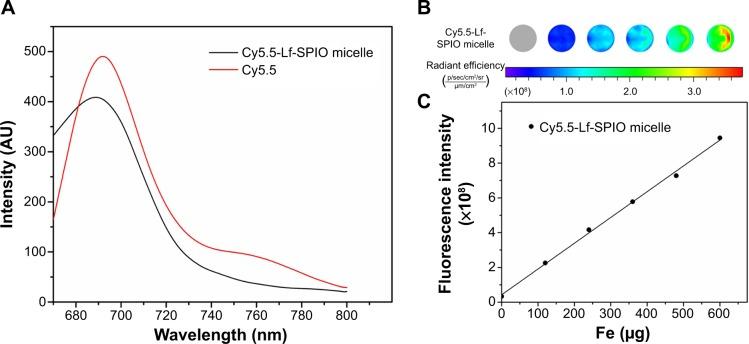

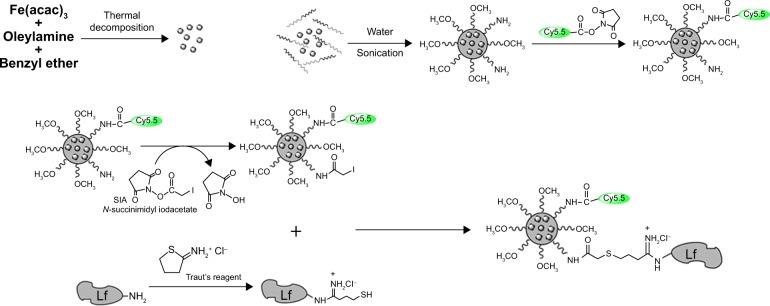

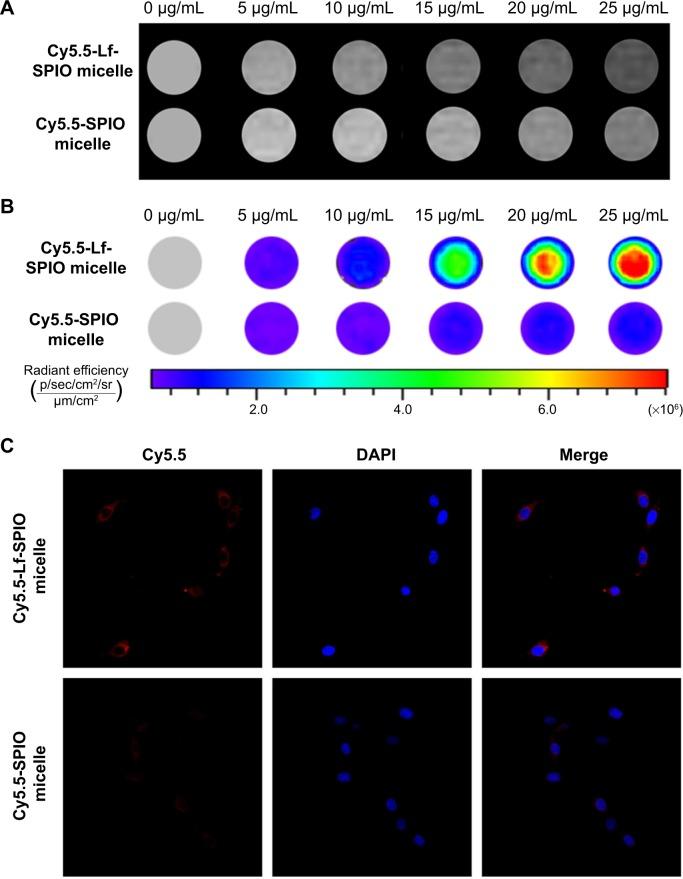

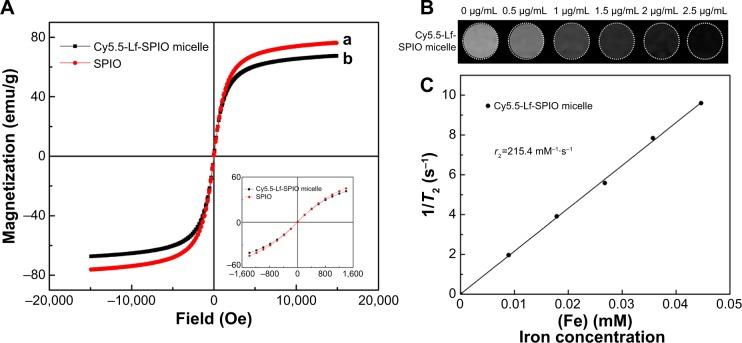

Surgical resection is the primary mode for glioma treatment, while gross total resection is difficult to achieve, due to the invasiveness of the gliomas. Meanwhile, the tumor-resection region is closely related to survival rate and life quality. Therefore, we developed optical/magnetic resonance imaging (MRI) bifunctional targeted micelles for glioma so as to delineate the glioma location before and during operation. The micelles were constructed through encapsulation of hydrophobic superparamagnetic iron oxide nanoparticles (SPIONs) with polyethylene glycol-block-polycaprolactone (PEG-b-PCL) by using a solvent-evaporation method, and modified with a near-infrared fluorescent probe, Cy5.5, in addition to the glioma-targeting ligand lactoferrin (Lf). Being encapsulated by PEG-b-PCL, the hydrophobic SPIONs dispersed well in phosphate-buffered saline over 4 weeks, and the relaxivity (r 2) of micelles was 215.4 mM(-1)·s(-1), with sustained satisfactory fluorescent imaging ability, which might have been due to the interval formed by PEG-b-PCL for avoiding the fluorescence quenching caused by SPIONs. The in vivo results indicated that the nanoparticles with Lf accumulated efficiently in glioma cells and prolonged the duration of hypointensity at the tumor site over 48 hours in the MR image compared to the nontarget group. Corresponding with the MRI results, the margin of the glioma was clearly demarcated in the fluorescence image, wherein the average fluorescence intensity of the tumor was about fourfold higher than that of normal brain tissue. Furthermore, 3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl-2-H-tetrazolium bromide assay results showed that the micelles were biocompatible at Fe concentrations of 0-100 μg/mL. In general, these optical/MRI bifunctional micelles can specifically target the glioma and provide guidance for surgical resection of the glioma before and during operation.

摘要

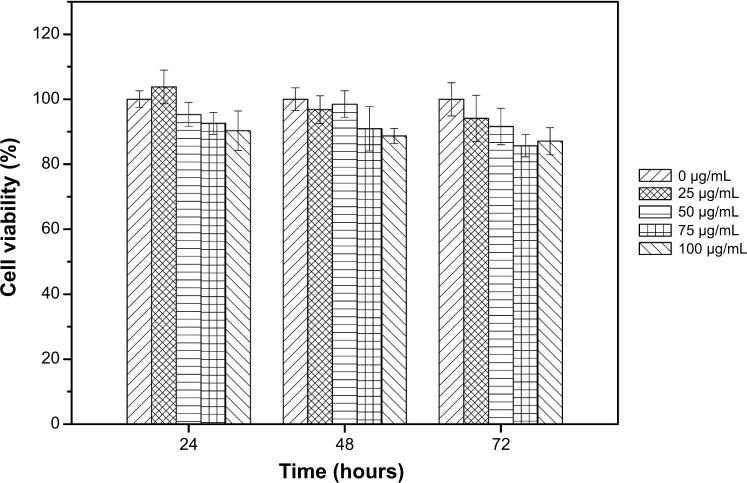

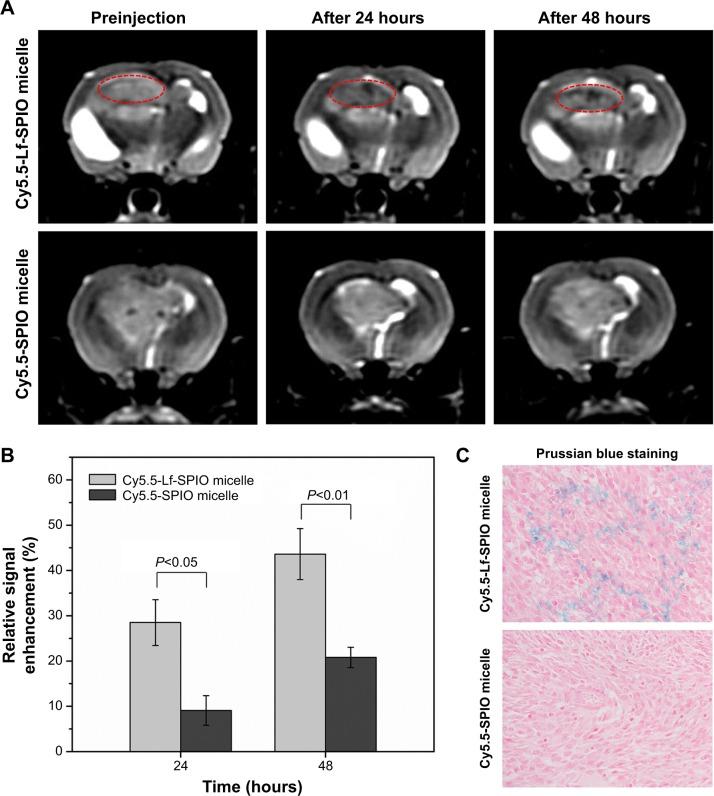

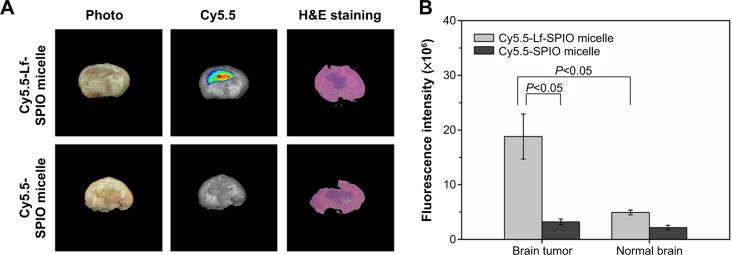

手术切除是胶质瘤治疗的主要方式,但由于胶质瘤具有侵袭性,难以实现全切。同时,肿瘤切除范围与生存率和生活质量密切相关。因此,我们开发了用于胶质瘤的光学/磁共振成像(MRI)双功能靶向胶束,以便在手术前和手术过程中描绘胶质瘤的位置。通过溶剂蒸发法,用聚乙二醇-嵌段-聚己内酯(PEG-b-PCL)包裹疏水性超顺磁性氧化铁纳米颗粒(SPIONs)构建胶束,并除了用胶质瘤靶向配体乳铁蛋白(Lf)修饰外,还用近红外荧光探针Cy5.5进行修饰。被PEG-b-PCL包裹后,疏水性SPIONs在4周内可很好地分散于磷酸盐缓冲盐水中,胶束的弛豫率(r2)为215.4 mM(-1)·s(-1),具有持续良好的荧光成像能力,这可能是由于PEG-b-PCL形成的间隔避免了SPIONs引起的荧光猝灭。体内结果表明,与非靶向组相比,带有Lf的纳米颗粒在胶质瘤细胞中有效蓄积,并使肿瘤部位在磁共振图像中的低信号持续时间延长超过48小时。与MRI结果相对应,在荧光图像中胶质瘤边界清晰可辨,其中肿瘤的平均荧光强度约为正常脑组织的四倍。此外,3-(4,5-二甲基-2-噻唑基)-2,5-二苯基-2-H-四唑溴盐检测结果表明,在铁浓度为0-100μg/mL时,胶束具有生物相容性。总体而言,这些光学/MRI双功能胶束可特异性靶向胶质瘤,并为手术前和手术过程中胶质瘤的手术切除提供指导。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/91e1e36196ff/ijn-10-1805Fig10.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/0a027241cf22/ijn-10-1805Fig1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/0bcfc72cfd46/ijn-10-1805Fig2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/1c4aa960e7d2/ijn-10-1805Fig3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/5b8cbd06632b/ijn-10-1805Fig4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/426abbaeeb4c/ijn-10-1805Fig5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/7a3e07463b14/ijn-10-1805Fig6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/bb5877c32ce4/ijn-10-1805Fig7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/7ba7342620a7/ijn-10-1805Fig8.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/2be55fc8b948/ijn-10-1805Fig9.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/91e1e36196ff/ijn-10-1805Fig10.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/0a027241cf22/ijn-10-1805Fig1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/0bcfc72cfd46/ijn-10-1805Fig2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/1c4aa960e7d2/ijn-10-1805Fig3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/5b8cbd06632b/ijn-10-1805Fig4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/426abbaeeb4c/ijn-10-1805Fig5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/7a3e07463b14/ijn-10-1805Fig6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/bb5877c32ce4/ijn-10-1805Fig7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/7ba7342620a7/ijn-10-1805Fig8.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/2be55fc8b948/ijn-10-1805Fig9.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6263/4356700/91e1e36196ff/ijn-10-1805Fig10.jpg
