2,3-双-(4-氯苯基)-1,3-噻唑烷-4-酮及反式-2,3-双-(4-氯苯基)-1,3-噻唑烷-4-酮1-氧化物的晶体结构

Crystal structures of 2,3-bis-(4-chloro-phen-yl)-1,3-thia-zolidin-4-one and trans-2,3-bis-(4-chloro-phen-yl)-1,3-thia-zolidin-4-one 1-oxide.

作者信息

Yennawar Hemant P, Tierney John, Hullihen Patrick D, Silverberg Lee J

机构信息

Department of Chemistry, Pennsylvania State University, University Park, PA 16802, USA.

Pennsylvania State University, Brandywine Campus, 312 M Main Building, 25, Yearsley Mill Rd, Media, PA 19063, USA.

出版信息

Acta Crystallogr E Crystallogr Commun. 2015 Feb 11;71(Pt 3):264-7. doi: 10.1107/S2056989015001954. eCollection 2015 Mar 1.

Abstract

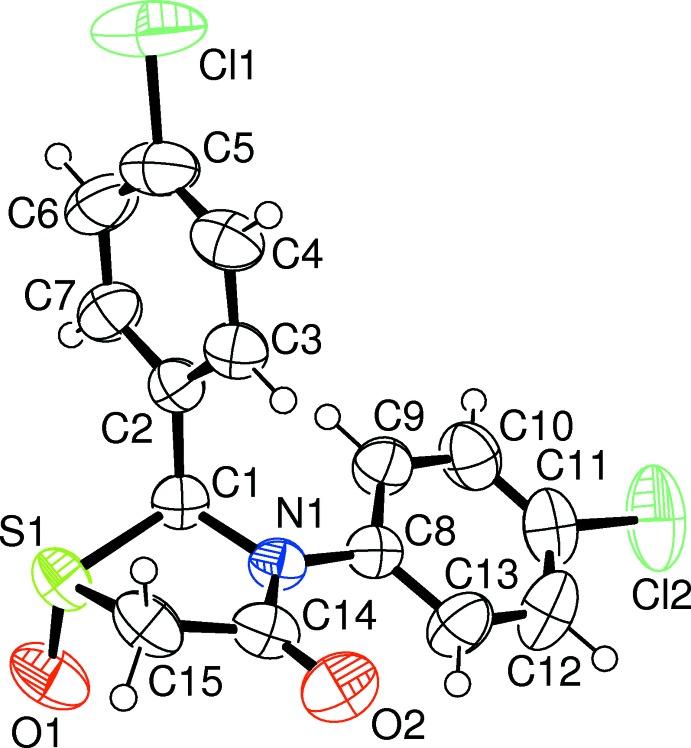

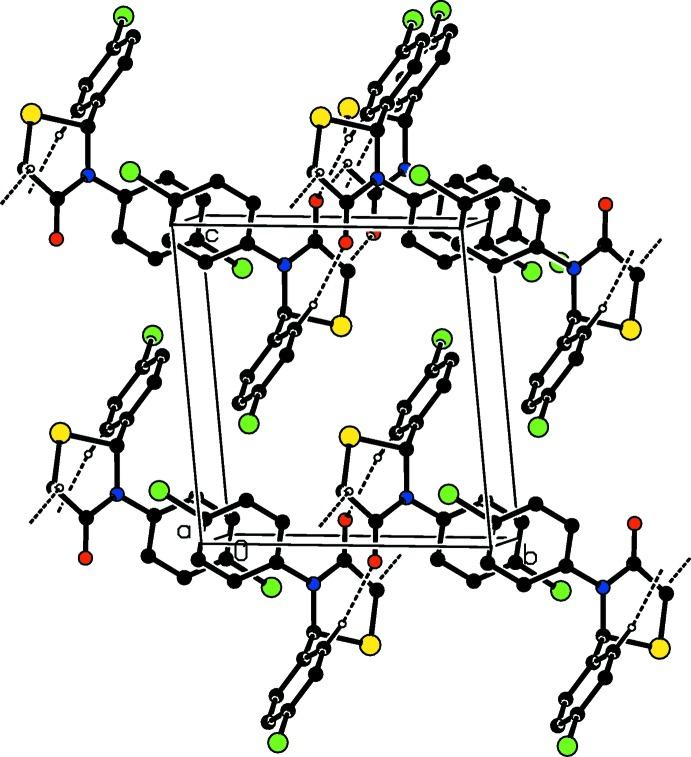

In the crystal structures of the title compounds, C15H11Cl2NOS, (1), and C15H11Cl2NO2S, (2), wherein (2) is the oxidized form of (1), the thia-zolidine ring is attached to two chloro-phenyl rings. The chloro-phenyl ring on the 2-carbon atom position points in the same direction as that of the S atom in (1), while in (2), the S atom points in the opposite direction. The O atom on the chiral S atom in (2) is trans to the chloro-phenyl ring on the 2-carbon. The chloro-phenyl ring planes in each structure are close to orthogonal, making dihedral angles of 78.61 (6) and 87.46 (8)° in (1) and (2), respectively. The thia-zolidine ring has a twisted conformation on the S-Cmethine bond in (1), and an envelope conformation with the S atom 0.715 (3) Å out of the plane of other four atoms in (2). In the crystal of (1), mol-ecules are linked by C-H⋯O hydrogen bonds, as well as by slipped parallel π-π inter-actions [inter-centroid distance = 3.840 (3) Å] between inversion-related phenyl rings, forming sheets parallel to (001). In the crystal of (2), mol-ecules are linked via C-H⋯O and C-H⋯Cl hydrogen bonds, forming slabs parallel to (001).

摘要

在标题化合物C15H11Cl2NOS(1)和C15H11Cl2NO2S(2)的晶体结构中,其中(2)是(1)的氧化形式,噻唑烷环连接到两个氯苯环上。2-碳原子位置上的氯苯环与(1)中S原子的方向相同,而在(2)中,S原子指向相反方向。(2)中手性S原子上的O原子与2-碳上的氯苯环呈反式。每个结构中的氯苯环平面接近正交,在(1)和(2)中的二面角分别为78.61(6)°和87.46(8)°。(1)中噻唑烷环在S-C次甲基键上具有扭曲构象,(2)中噻唑烷环具有信封式构象,S原子偏离其他四个原子平面0.715(3)Å。在(1)的晶体中,分子通过C-H⋯O氢键以及通过反演相关苯环之间的滑移平行π-π相互作用[质心间距 = 3.840(3)Å]相连,形成平行于(001)的片层。在(2)的晶体中,分子通过C-H⋯O和C-H⋯Cl氢键相连,形成平行于(001)的平板。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/45f0/4350739/eacdef57f639/e-71-00264-fig1.jpg
