用于基于质谱的肿瘤组织成像的多价适配体/金纳米颗粒修饰的氧化石墨烯
Multivalent aptamer/gold nanoparticle-modified graphene oxide for mass spectrometry-based tumor tissue imaging.
作者信息
Huang Rong-Cing, Chiu Wei-Jane, Po-Jung Lai Irving, Huang Chih-Ching
机构信息
Department of Bioscience and Biotechnology, National Taiwan Ocean University, Keelung, 20224, Taiwan.
1] Department of Bioscience and Biotechnology, National Taiwan Ocean University, Keelung, 20224, Taiwan [2] Center of Excellence for the Oceans, National Taiwan Ocean University, Keelung, 20224, Taiwan [3] School of Pharmacy, College of Pharmacy, Kaohsiung Medical University, Kaohsiung, 80708, Taiwan.
出版信息
Sci Rep. 2015 May 14;5:10292. doi: 10.1038/srep10292.

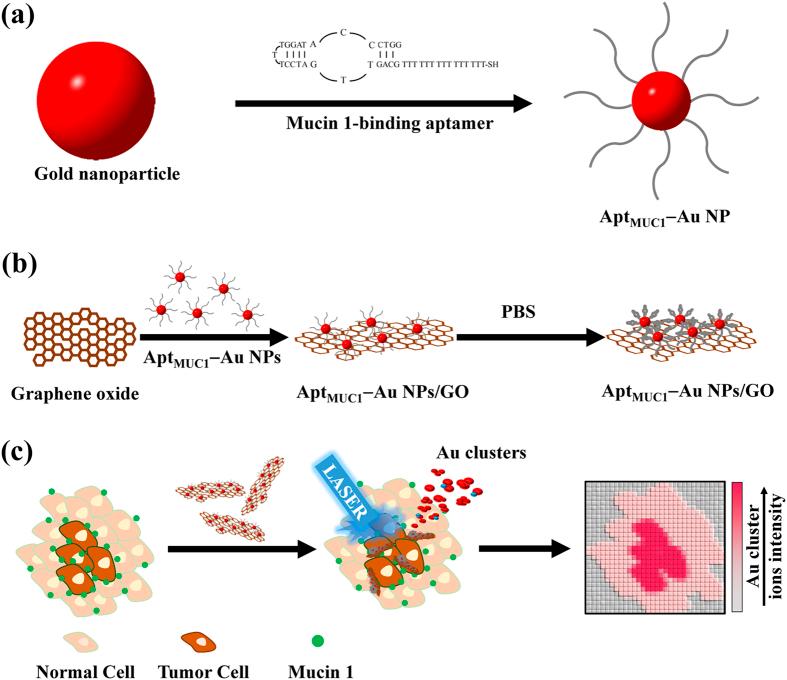

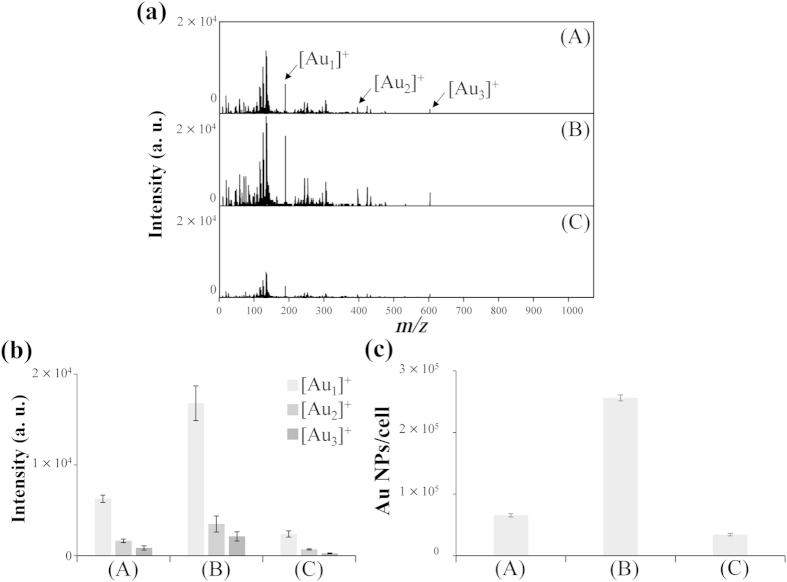

The protein mucin1 (MUC1) is an attractive target for cancer biomarkers because it is overexpressed in most adenocarcinomas. In this study, we exploited a MUC1-binding aptamer (AptMUC1) as a targeting agent for nanoparticle-based imaging systems coupled with laser desorption/ionization mass spectrometry (LDI-MS). We found that AptMUC1-conjugated gold nanoparticles immobilized, through hydrophobic and π-π interactions, on graphene oxide (AptMUC1-Au NPs/GO) bound effectively to MUC1 units on tumor cell membranes. The ultrahigh density and high flexibility of AptMUC1 on the GO surface enhanced the platform's cooperative and multivalent binding affinity for MUC1 on cell membranes. After we had labeled MUC1-overexpressing MCF-7 cells (human breast adenocarcinoma cell line) with AptMUC1-Au NPs/GO, we used LDI-MS to monitor Au cluster ions (Aun; n = 1-3), resulting in the detection of as few as 100 MCF-7 cells. We also employed this AptMUC1-Au NPs/GO-LDI-MS system to analyze four different MUC1 expression cell lines. In addition, the AptMUC1-Au NPs/GO platform could be used further as a labeling agent for tumor tissue imaging when coupled with LDI-MS. Thus, Apt-Au NPs/GO can function as a highly amplified signal transducer through the formation of large Au clusters ions during LDI-MS analysis.
蛋白质黏蛋白1(MUC1)是一种颇具吸引力的癌症生物标志物靶点,因为它在大多数腺癌中均有过表达。在本研究中,我们利用一种MUC1结合适体(AptMUC1)作为基于纳米颗粒的成像系统的靶向剂,并结合激光解吸/电离质谱(LDI-MS)。我们发现,通过疏水作用和π-π相互作用固定在氧化石墨烯上的AptMUC1偶联金纳米颗粒(AptMUC1-Au NPs/GO)能有效结合肿瘤细胞膜上的MUC1单元。AptMUC1在GO表面的超高密度和高灵活性增强了该平台对细胞膜上MUC1的协同和多价结合亲和力。在用AptMUC1-Au NPs/GO标记过表达MUC1的MCF-7细胞(人乳腺腺癌细胞系)后,我们使用LDI-MS监测金簇离子(Aun;n = 1 - 3),从而能够检测低至100个MCF-7细胞。我们还采用这种AptMUC1-Au NPs/GO-LDI-MS系统分析了四种不同MUC1表达的细胞系。此外,当与LDI-MS结合时,AptMUC-1-Au NPs/GO平台还可进一步用作肿瘤组织成像的标记剂。因此,Apt-Au NPs/GO可通过在LDI-MS分析过程中形成大的金簇离子而作为一种高放大信号转导器发挥作用。
