Steventon Jessica J, Trueman Rebecca C, Rosser Anne E, Jones Derek K
Cardiff University Brain Research Imaging Centre, School of Psychology, Cardiff University, Park Place, Cardiff CF10 3AT, UK; Brain Repair Group, Life Science Building, 3rd Floor, School of Biosciences, Cardiff University, Museum Avenue, Cardiff CF10 3AX, UK; Neuroscience and Mental Health Research Institute, Cardiff University, Hadyn Ellis Building, Cathays, Cardiff CF24 4HQ, UK.
Brain Repair Group, Life Science Building, 3rd Floor, School of Biosciences, Cardiff University, Museum Avenue, Cardiff CF10 3AX, UK; School of Biomedical Sciences, Queen's Medical Centre, Nottingham University, Nottingham NG7 2UH, UK.
J Neurosci Methods. 2016 May 30;265:2-12. doi: 10.1016/j.jneumeth.2015.08.027. Epub 2015 Aug 31.
Huge advances have been made in understanding and addressing confounds in diffusion MRI data to quantify white matter microstructure. However, there has been a lag in applying these advances in clinical research. Some confounds are more pronounced in HD which impedes data quality and interpretability of patient-control differences. This study presents an optimised analysis pipeline and addresses specific confounds in a HD patient cohort.

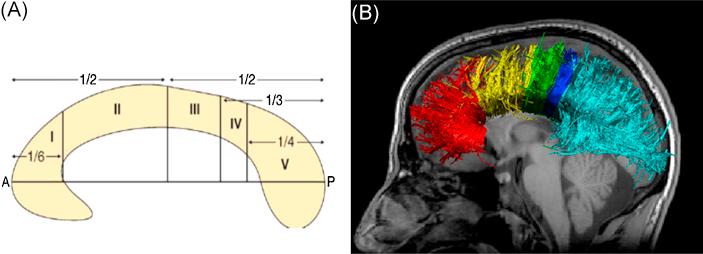

15 HD gene-positive and 13 matched control participants were scanned on a 3T MRI system with two diffusion MRI sequences. An optimised post processing pipeline included motion, eddy current and EPI correction, rotation of the B matrix, free water elimination (FWE) and tractography analysis using an algorithm capable of reconstructing crossing fibres. The corpus callosum was examined using both a region-of-interest and a deterministic tractography approach, using both conventional diffusion tensor imaging (DTI)-based and spherical deconvolution analyses.

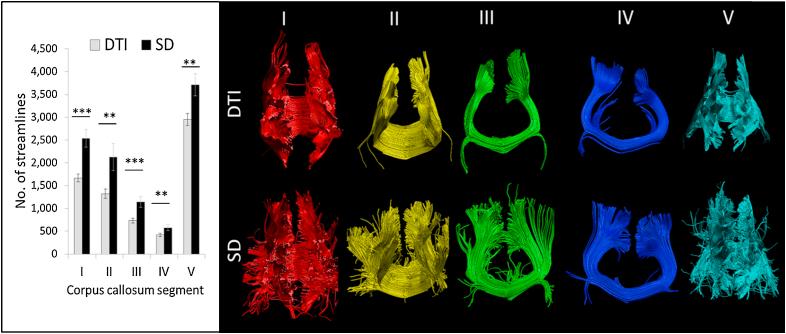

Correcting for CSF contamination significantly altered microstructural metrics and the detection of group differences. Reconstructing the corpus callosum using spherical deconvolution produced a more complete reconstruction with greater sensitivity to group differences, compared to DTI-based tractography. Tissue volume fraction (TVF) was reduced in HD participants and was more sensitive to disease burden compared to DTI metrics.
Addressing confounds in diffusion MR data results in more valid, anatomically faithful white matter tract reconstructions with reduced within-group variance. TVF is recommended as a complementary metric, providing insight into the relationship with clinical symptoms in HD not fully captured by conventional DTI metrics.
在理解和处理扩散磁共振成像(MRI)数据中的混杂因素以量化白质微观结构方面已经取得了巨大进展。然而,在临床研究中应用这些进展存在滞后。一些混杂因素在亨廷顿舞蹈病(HD)中更为明显,这会影响数据质量以及患者与对照组差异的可解释性。本研究提出了一种优化的分析流程,并解决了HD患者队列中的特定混杂因素。
15名HD基因阳性患者和13名匹配的对照参与者在3T MRI系统上进行扫描,采用两种扩散MRI序列。优化的后处理流程包括运动、涡流和回波平面成像(EPI)校正、B矩阵旋转、自由水消除(FWE)以及使用能够重建交叉纤维的算法进行纤维束成像分析。使用基于感兴趣区域和确定性纤维束成像方法,同时采用基于传统扩散张量成像(DTI)和球面反卷积分析来检查胼胝体。
校正脑脊液污染显著改变了微观结构指标以及组间差异的检测。与基于DTI的纤维束成像相比,使用球面反卷积重建胼胝体能够得到更完整的重建,对组间差异更敏感。HD参与者的组织体积分数(TVF)降低,并且与DTI指标相比,对疾病负担更敏感。
处理扩散MR数据中的混杂因素可得到更有效、解剖学上更准确的白质纤维束重建,且组内方差减小。建议将TVF作为一种补充指标,以深入了解HD中与临床症状的关系,而这是传统DTI指标无法完全捕捉到的。
