Lu Lu, Zeng Cuiping, Wang Luda, Yin Xiaobo, Jin Song, Lu Anhuai, Jason Ren Zhiyong
Department of Civil, Environmental, and Architectural Engineering, University of Colorado Boulder, Boulder, CO 80309, USA.
The Key Laboratory of Orogenic Belts and Crustal Evolution, School of Earth and Space Sciences, Peking University, Beijing 100871, P.R. China.
Sci Rep. 2015 Nov 17;5:16242. doi: 10.1038/srep16242.

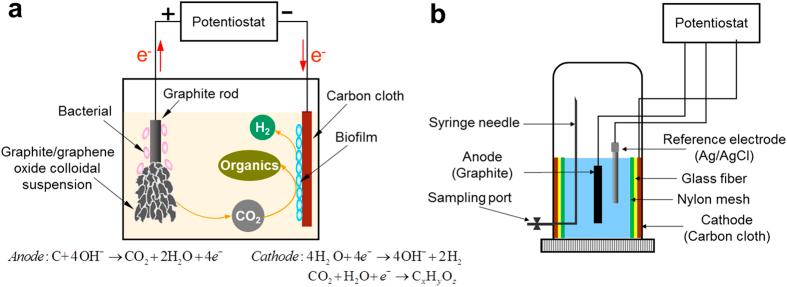

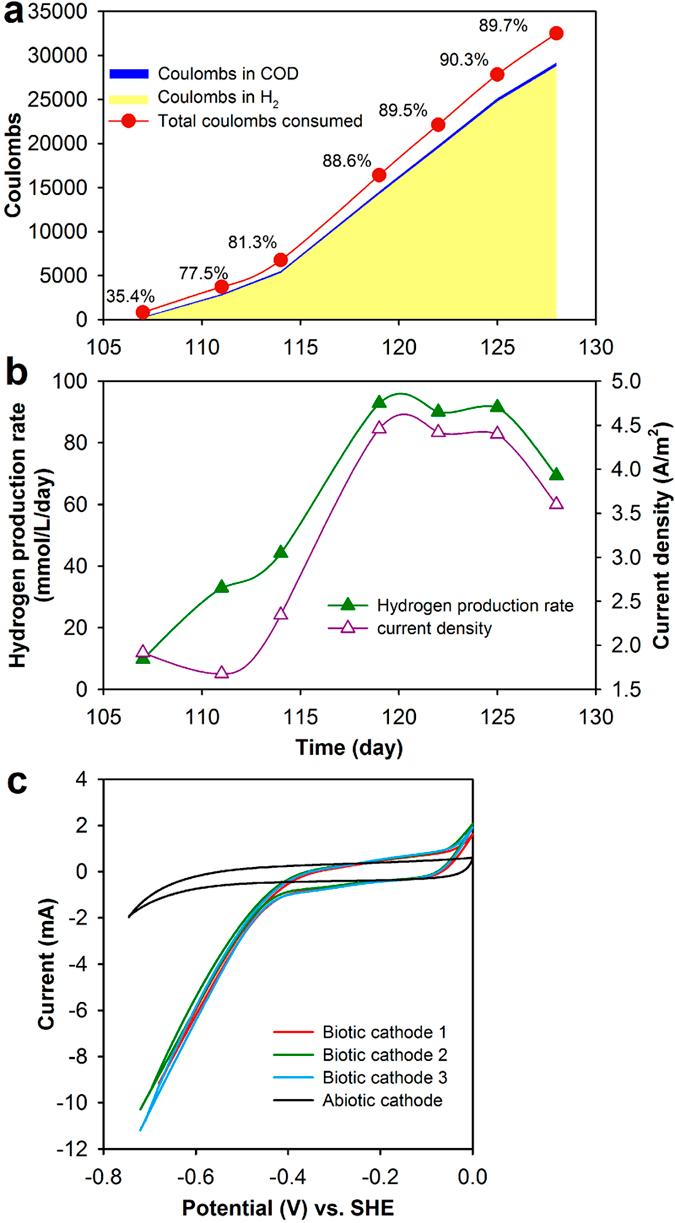

Graphene oxide (GO) is an emerging material for energy and environmental applications, but it has been primarily produced using chemical processes involving high energy consumption and hazardous chemicals. In this study, we reported a new bioelectrochemical method to produce GO from graphite under ambient conditions without chemical amendments, value-added organic compounds and high rate H2 were also produced. Compared with abiotic electrochemical electrolysis control, the microbial assisted graphite oxidation produced high rate of graphite oxide and graphene oxide (BEGO) sheets, CO2, and current at lower applied voltage. The resultant electrons are transferred to a biocathode, where H2 and organic compounds are produced by microbial reduction of protons and CO2, respectively, a process known as microbial electrosynthesis (MES). Pseudomonas is the dominant population on the anode, while abundant anaerobic solvent-producing bacteria Clostridium carboxidivorans is likely responsible for electrosynthesis on the cathode. Oxygen production through water electrolysis was not detected on the anode due to the presence of facultative and aerobic bacteria as O2 sinkers. This new method provides a sustainable route for producing graphene materials and renewable H2 at low cost, and it may stimulate a new area of research in MES.
氧化石墨烯(GO)是一种用于能源和环境应用的新兴材料,但它主要是通过涉及高能耗和危险化学品的化学过程生产的。在本研究中,我们报道了一种新的生物电化学方法,可在环境条件下从石墨生产GO,无需化学改性,还产生了增值有机化合物和高产量的H2。与非生物电化学电解对照相比,微生物辅助石墨氧化在较低施加电压下产生了高产量的氧化石墨和氧化石墨烯(BEGO)片、CO2和电流。产生的电子转移到生物阴极,在那里通过微生物分别将质子和CO2还原产生H2和有机化合物,这一过程称为微生物电合成(MES)。假单胞菌是阳极上的优势菌群,而丰富的厌氧产溶剂细菌羧基还原梭菌可能负责阴极上的电合成。由于存在兼性和好氧细菌作为O2吸收剂,在阳极未检测到通过水电解产生的氧气。这种新方法为低成本生产石墨烯材料和可再生H2提供了一条可持续途径,并且可能会激发MES领域的新研究方向。
