2-(2,4-二苯基-3-氮杂双环-[3.3.1]壬烷-9-亚基)乙腈的晶体结构
Crystal structure of 2-(2,4-diphenyl-3-aza-bicyclo-[3.3.1]nonan-9-yl-idene)aceto-nitrile.
作者信息
Priya K, Saravanan K, Kabilan S, Selvanayagam S
机构信息
Department of Chemistry, Annamalai University, Annamalainagar 608 002, India.
PG & Research Department of Physics, Government Arts College, Melur 625 106, India.
出版信息
Acta Crystallogr E Crystallogr Commun. 2015 Sep 26;71(Pt 10):o792-3. doi: 10.1107/S2056989015017740. eCollection 2015 Oct 1.

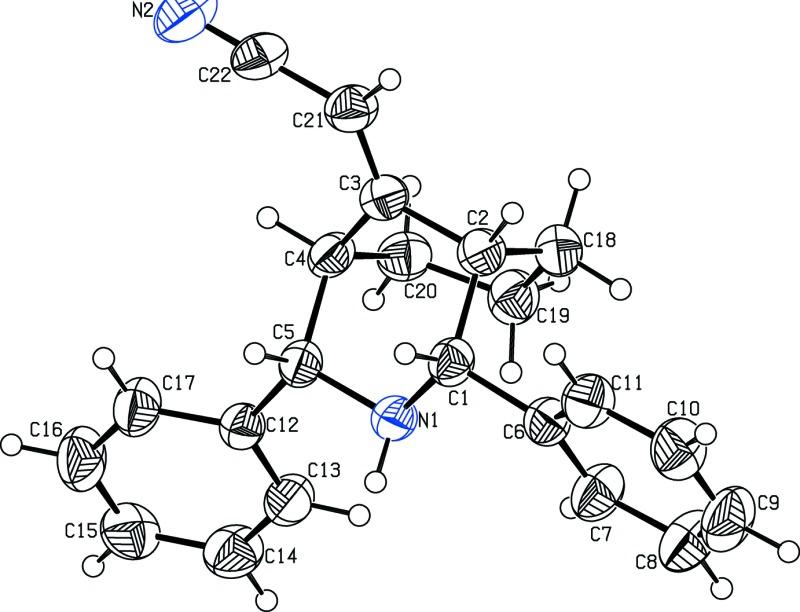

In the title 3-aza-bicyclo-nonane derivative, C22H22N2, both the fused piperidine and cyclo-hexane rings adopt a chair conformation. The phenyl rings attached to the central aza-bicylononane fragment in an equatorial orientation are inclined to each other at 23.7 (1)°. The amino group is not involved in any hydrogen bonding, so the crystal packing is stabilized only by van der Waals forces.
在标题化合物3-氮杂双环壬烷衍生物C₂₂H₂₂N₂中，稠合的哌啶环和环己烷环均呈椅式构象。以赤道取向连接到中心氮杂双环壬烷片段上的苯环彼此间倾斜23.7 (1)°。氨基不参与任何氢键作用，因此晶体堆积仅通过范德华力得以稳定。
