Usefulness of a New Three-Dimensional Simulator System for Radiofrequency Ablation.

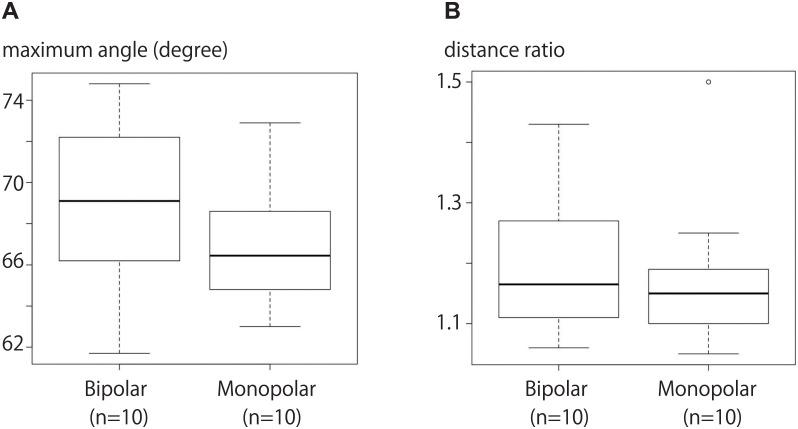

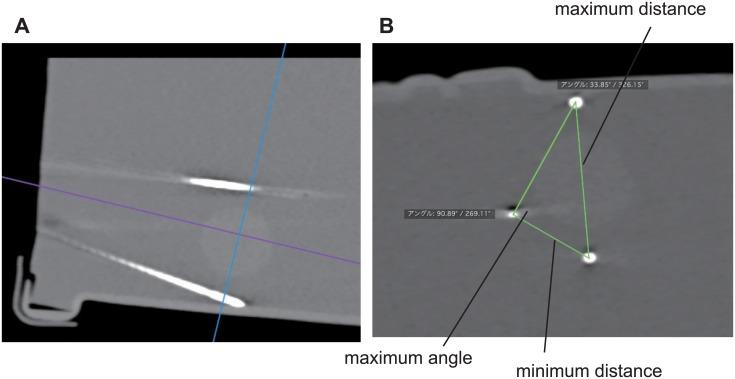

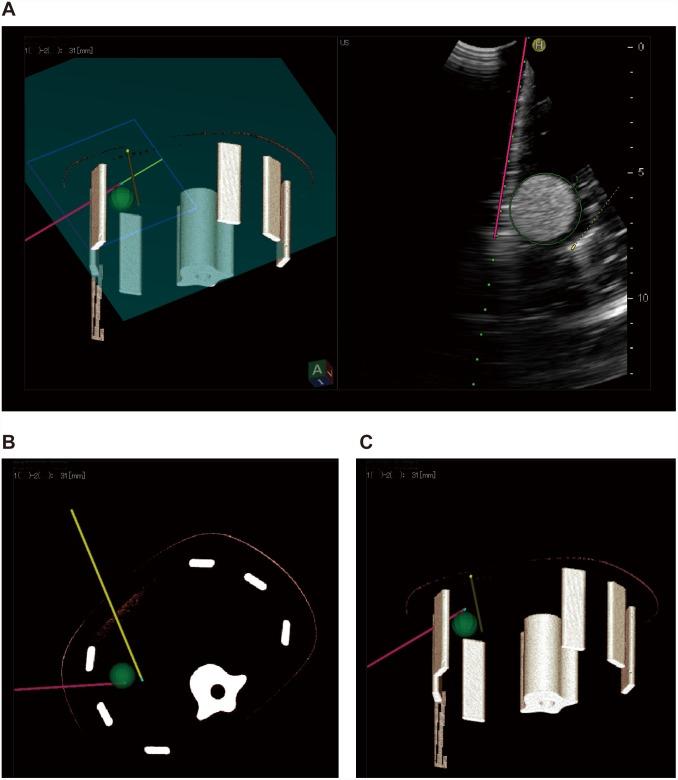

Multipuncture radiofrequency ablation is expected to produce a large ablated area and reduce intrahepatic recurrence of hepatocellular carcinoma; however, it requires considerable skill. This study evaluated the utility of a new simulator system for multipuncture radiofrequency ablation. To understand positioning of multipuncture electrodes on three-dimensional images, we developed a new technology by expanding real-time virtual ultrasonography. We performed 21 experimental punctures in phantoms. Electrode insertion directions and positions were confirmed on computed tomography, and accuracy and utility of the simulator system were evaluated by measuring angles and intersections for each electrode. Moreover, to appropriately assess placement of the three electrodes, puncture procedures with or without the simulator were performed by experts and non-experts. Technical success was defined as maximum angle and distance ratio, as calculated by maximum and minimum distances between electrodes. In punctures using 2 electrodes, correlations between angles on each imaging modality were strong (ultrasound vs. simulator: r = 0.991, p<0.001, simulator vs. computed tomography: r = 0.991, p<0.001, ultrasound vs. computed tomography: r = 0.999, p<0.001). Correlations between distances in each imaging modality were also strong (ultrasound vs. simulator: r = 0.993, p<0.001; simulator vs. computed tomography: r = 0.994, p<0.001; ultrasound vs. computed tomography: r = 0.994, p<0.001). In cases with 3 electrodes, distances between each electrode correlated strongly (yellow-labeled vs. red-labeled: r = 0.980, p<0.001; red-labeled vs. blue-labeled: r = 0.953, p<0.001; yellow-labeled vs. blue-labeled: r = 0.953, p<0.001). Both angle and distance ratio (expert with simulator vs. without simulator; p = 0.03, p = 0.02) were significantly smaller in procedures performed by experts using the simulator system. The new simulator system appears to accurately guide electrode positioning. This simulator system could allow multipuncture radiofrequency ablation to be performed more effectively and comfortably.
