Blanco Víctor M, Chu Zhengtao, LaSance Kathleen, Gray Brian D, Pak Koon Yan, Rider Therese, Greis Kenneth D, Qi Xiaoyang
Division of Hematology-Oncology, Department of Internal Medicine, University of Cincinnati College of Medicine, Cincinnati, Ohio 45267, USA.
Division of Human Genetics, Department of Pediatrics, Cincinnati Children's Hospital Medical Center, Cincinnati, Ohio 45229, USA.
Oncotarget. 2016 May 31;7(22):32866-75. doi: 10.18632/oncotarget.8763.

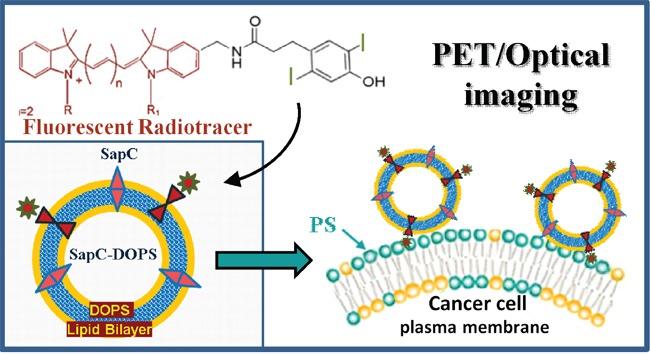

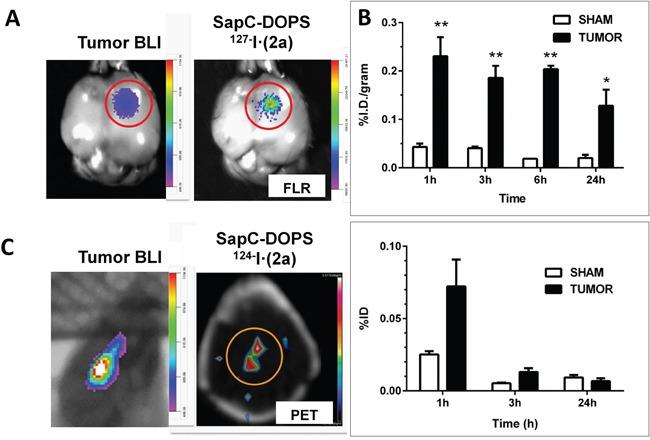

Multimodal tumor imaging with targeted nanoparticles potentially offers both enhanced specificity and sensitivity, leading to more precise cancer diagnosis and monitoring. We describe the synthesis and characterization of phenol-substituted, lipophilic orange and far-red fluorescent dyes and a simple radioiodination procedure to generate a dual (optical and nuclear) imaging probe. MALDI-ToF analyses revealed high iodination efficiency of the lipophilic reporters, achieved by electrophilic aromatic substitution using the chloramide 1,3,4,6-tetrachloro-3α,6α-diphenyl glycoluril (Iodogen) as the oxidizing agent in an organic/aqueous co-solvent mixture. Upon conjugation of iodine-127 or iodine-124-labeled reporters to tumor-targeting SapC-DOPS nanovesicles, optical (fluorescent) and PET imaging was performed in mice bearing intracranial glioblastomas. In addition, tumor vs non-tumor (normal brain) uptake was compared using iodine-125. These data provide proof-of-principle for the potential value of SapC-DOPS for multimodal imaging of glioblastoma, the most aggressive primary brain tumor.
使用靶向纳米颗粒的多模态肿瘤成像可能会提高特异性和灵敏度,从而实现更精确的癌症诊断和监测。我们描述了苯酚取代的亲脂性橙色和远红色荧光染料的合成与表征,以及一种简单的放射性碘化程序,以生成双模态(光学和核)成像探针。基质辅助激光解吸电离飞行时间(MALDI-ToF)分析显示,通过在有机/水混合共溶剂中使用氯酰胺1,3,4,6-四氯-3α,6α-二苯基甘脲(碘代甘脲,Iodogen)作为氧化剂进行亲电芳香取代,亲脂性报告分子具有较高的碘化效率。将碘-127或碘-124标记的报告分子与靶向肿瘤的SapC-DOPS纳米囊泡偶联后,对患有颅内胶质母细胞瘤的小鼠进行了光学(荧光)和正电子发射断层扫描(PET)成像。此外,使用碘-125比较了肿瘤与非肿瘤(正常脑)的摄取情况。这些数据为SapC-DOPS在胶质母细胞瘤(最具侵袭性的原发性脑肿瘤)多模态成像中的潜在价值提供了原理验证。
