Tridimensional finite element analysis of teeth movement induced by different headgear forces.

BACKGROUND

This study aimed to simulate the actions of low-pull (LP), high-pull (HP), and combined pull (CP) headgears (HGs) and to analyze tooth movement tendencies through finite element analysis.

METHODS

Tomographic slices of a human maxilla with complete permanent dentition were processed by reconstruction software, and the triangular surface mesh was converted into non-uniform rational B-spline (NURBS) curves. An HG facial bow was also modulated in 3D. The teeth and bone were considered to have isotropic and linear behavior, whereas the periodontal ligament was considered to have non-linear and hyperelastic behavior. Data regarding the application points, directions and magnitudes of forces were obtained from the literature and from a dolichofacial patient with class II, division 1 malocclusion, who was treated with a CP HG.

RESULTS

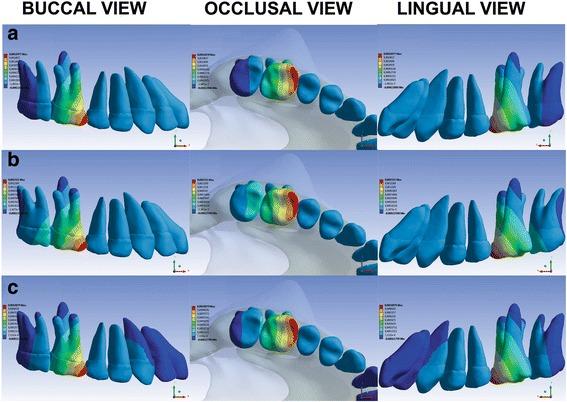

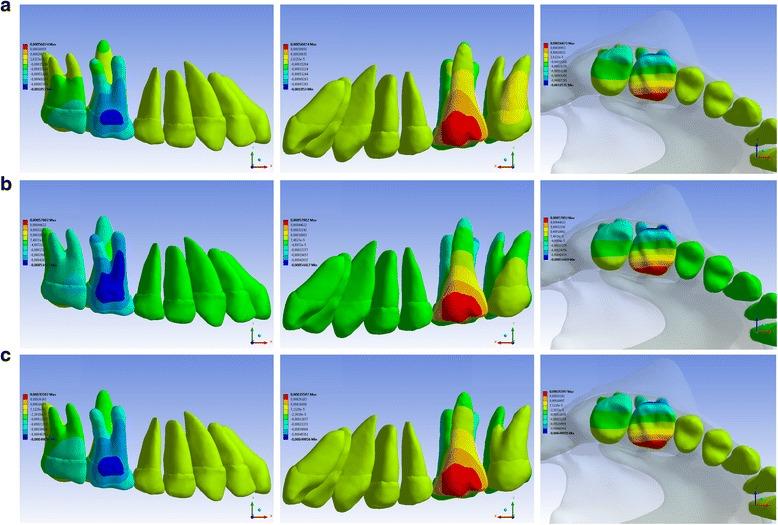

The CP HG promoted 37.1 to 41.1 %, and the HP HG promoted 19.1 to 31.9 % of LP distalization. The HP HG presented the highest intrusion, and the LP HG presented the highest extrusion of the first molar. The LP HG contracted the distal side, and the HP and CP HGs contracted the lingual and distobuccal roots of the second molar to a lesser degree.

CONCLUSIONS

The LP HG promotes the greatest distalization, followed by the CP and HP HGs; the LP HG causes greater extrusion of the first molar, and the HP HG causes greater intrusion of the first molar. The LP HG causes greater contraction of the second molar than the HP HG.
