Total ankle replacement design and positioning affect implant-bone micromotion and bone strains.

作者信息

Sopher Ran S, Amis Andrew A, Calder James D, Jeffers Jonathan R T

机构信息

Department of Mechanical Engineering, Imperial College London, 715 City & Guilds Building, South Kensington, London SW7 2AZ, UK.

Department of Mechanical Engineering, Imperial College London, 715 City & Guilds Building, South Kensington, London SW7 2AZ, UK ; Department of Surgery & Cancer, Imperial College London, Charing Cross Hospital, London, W6 8RP, UK.

出版信息

Med Eng Phys. 2017 Apr;42:80-90. doi: 10.1016/j.medengphy.2017.01.022. Epub 2017 Feb 21.


DOI:10.1016/j.medengphy.2017.01.022
PMID:28233732
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC5360194/
Abstract

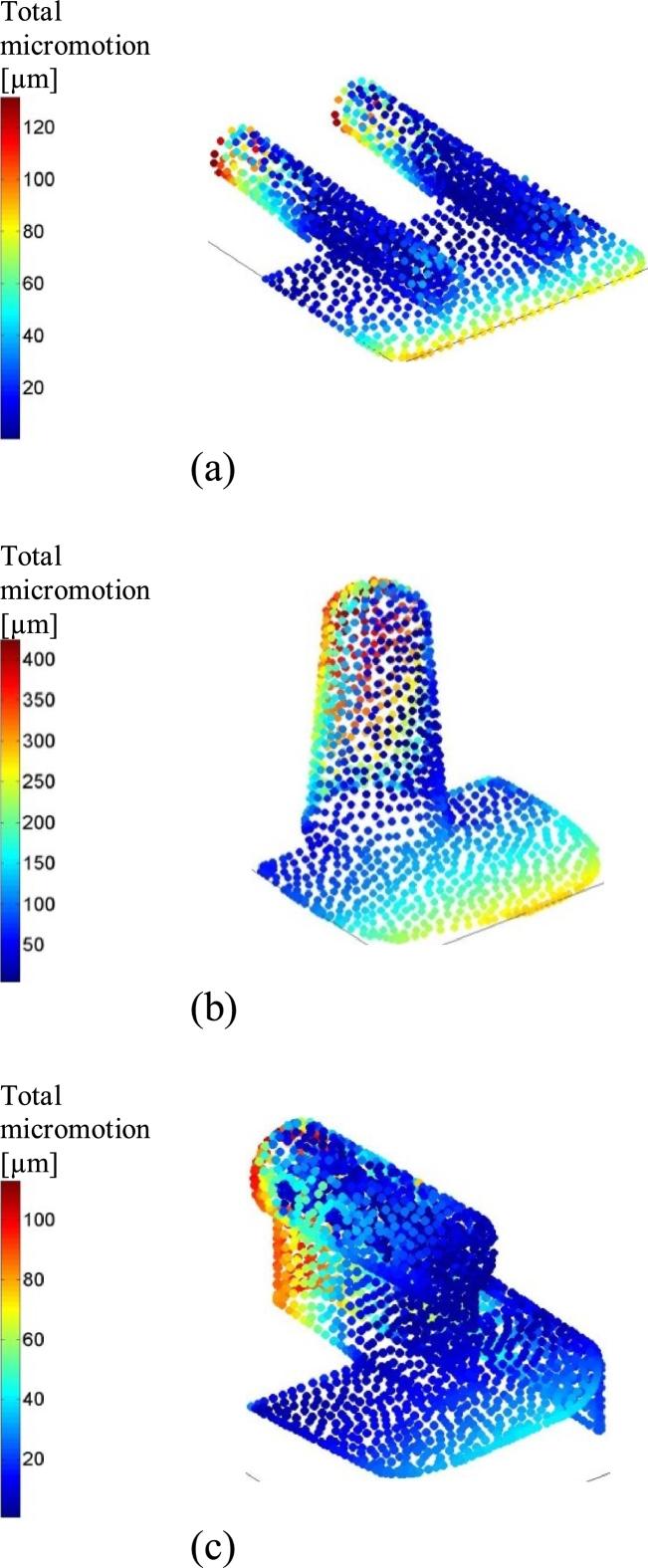

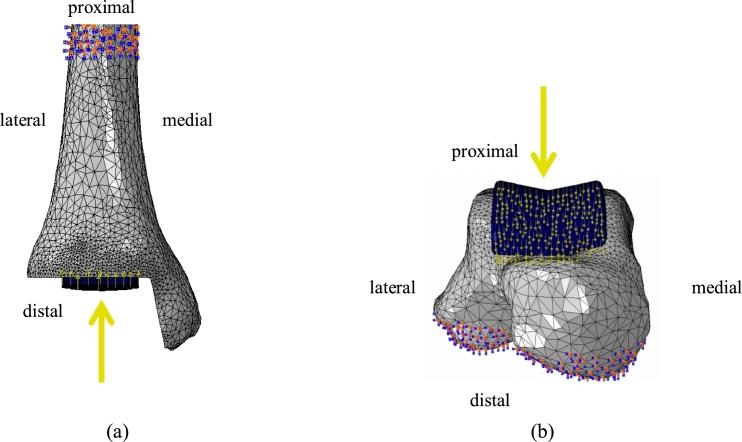

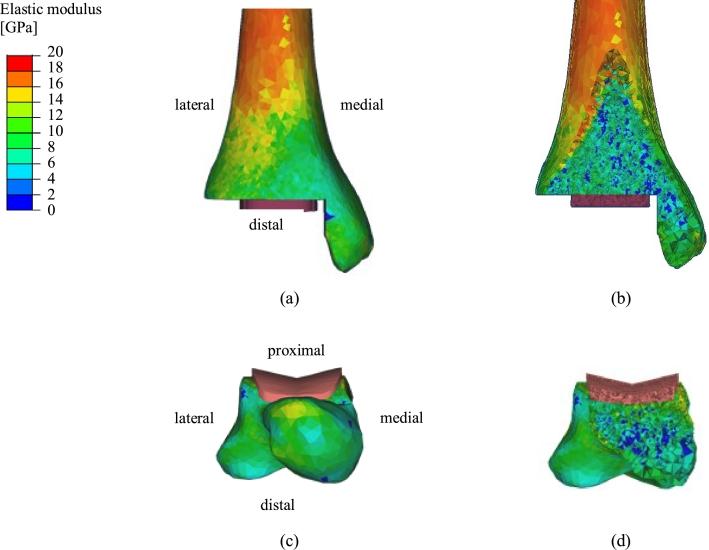

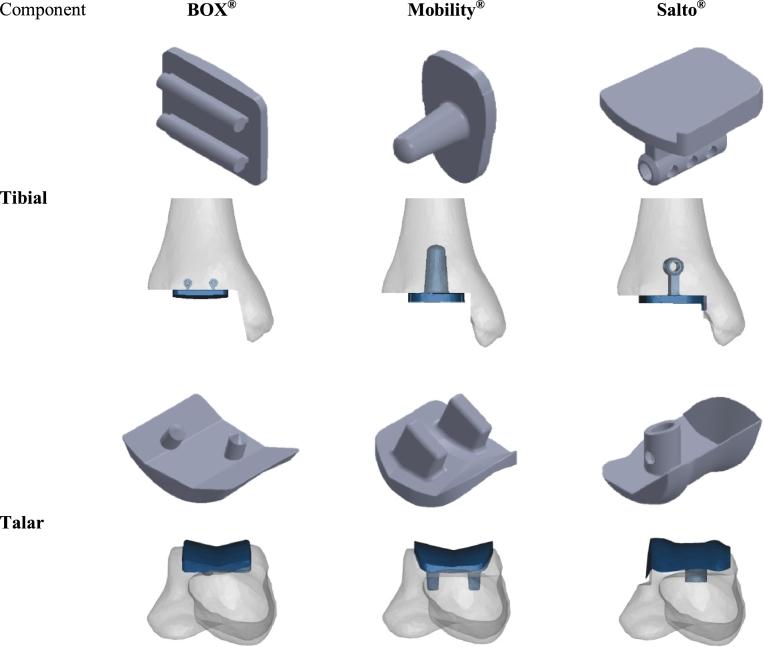

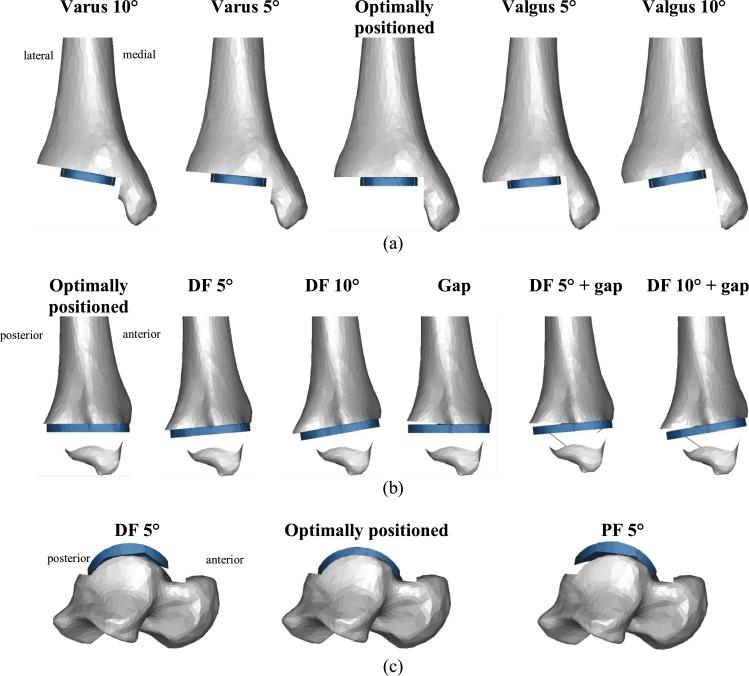

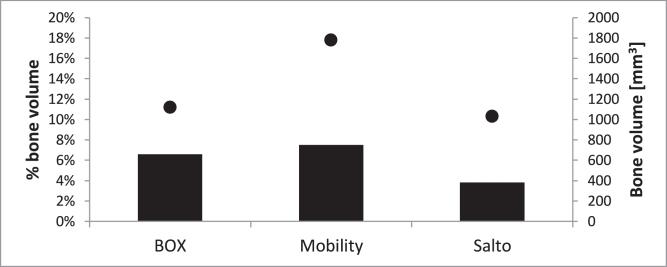

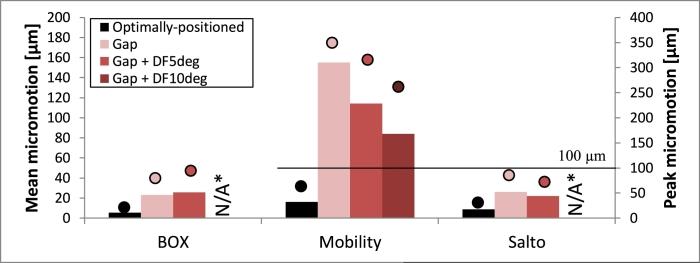

Implant loosening - commonly linked with elevated initial micromotion - is the primary indication for total ankle replacement (TAR) revision. Finite element modelling has not been used to assess micromotion of TAR implants; additionally, the biomechanical consequences of TAR malpositioning - previously linked with higher failure rates - remain unexplored. The aim of this study was to estimate implant-bone micromotion and peri-implant bone strains for optimally positioned and malpositioned TAR prostheses, and thereby identify fixation features and malpositioning scenarios increasing the risk of loosening. Finite element models simulating three of the most commonly used TAR devices (BOX, Mobility and Salto) implanted into the tibia/talus and subjected to physiological loads were developed. Mobility and Salto demonstrated the largest micromotion of all tibial and talar components, respectively. Any malpositioning of the implant creating a gap between it and the bone resulted in a considerable increase in micromotion and bone strains. It was concluded that better primary stability can be achieved through fixation nearer to the joint line and/or while relying on more than a single peg. Incomplete seating on the bone may result in considerably elevated implant-bone micromotion and bone strains, thereby increasing the risk for TAR failure.
