Purification, characterization and thermostability improvement of xylanase from Bacillus amyloliquefaciens and its application in pre-bleaching of kraft pulp.

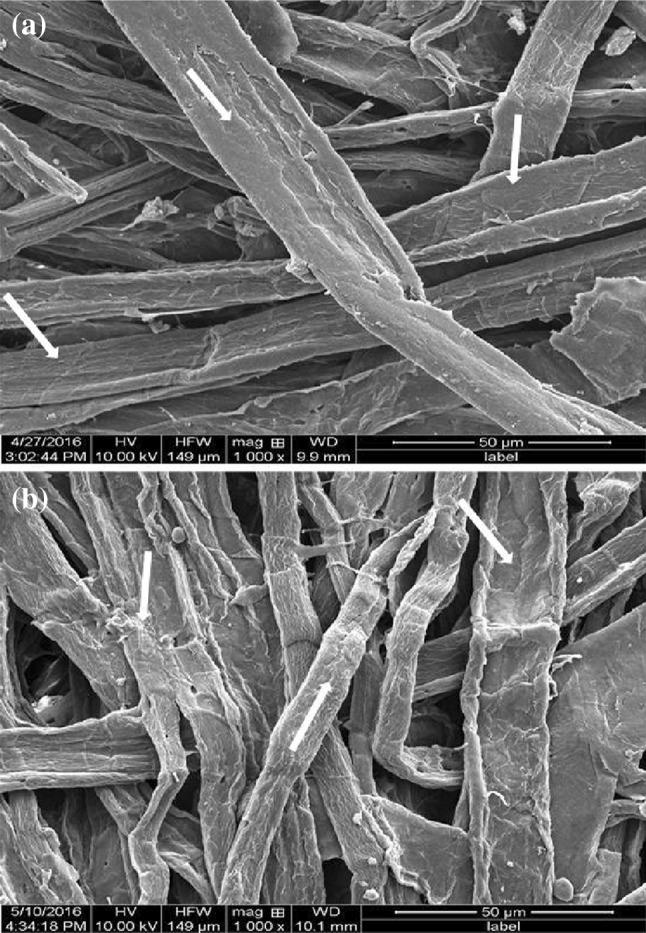

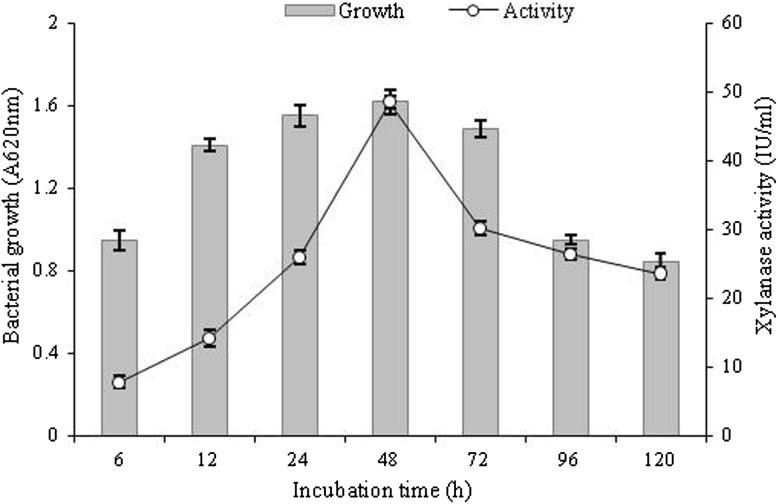

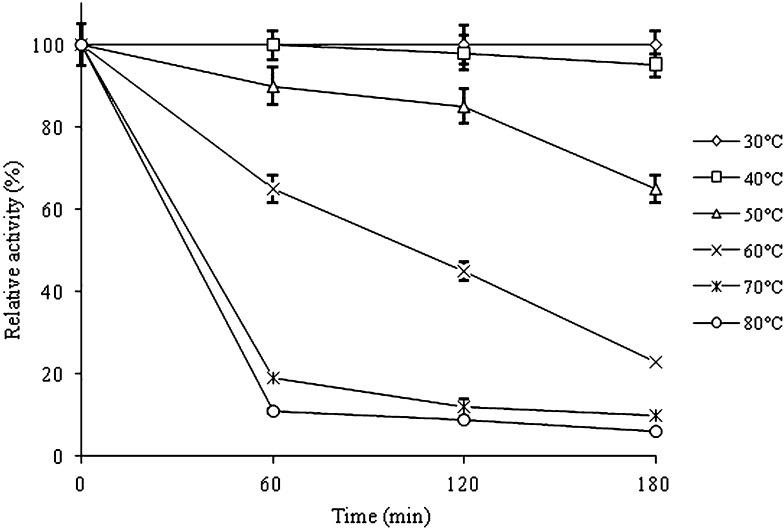

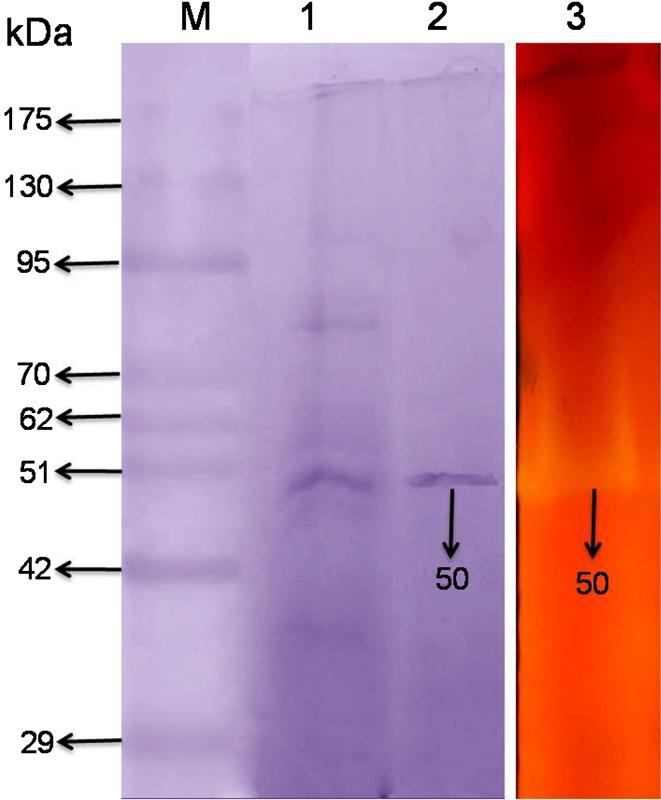

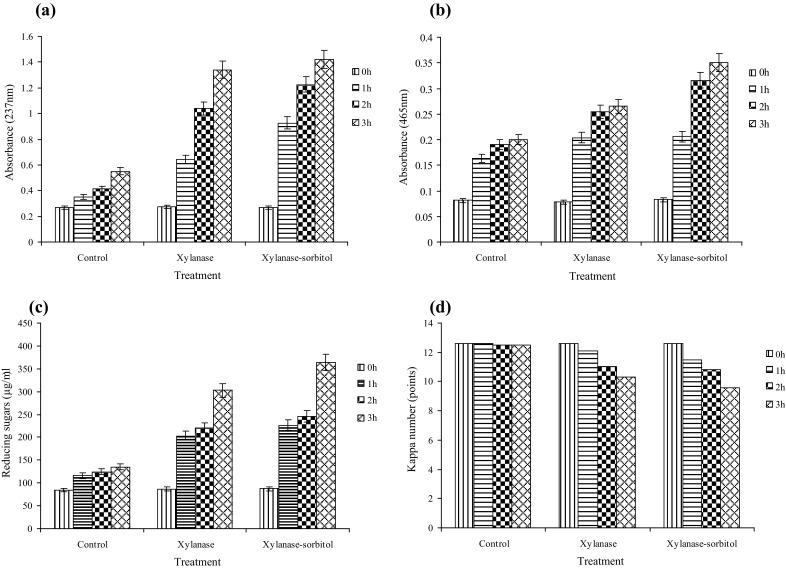

Xylanases have important industrial applications but are most extensively utilized in the pulp and paper industry as a pre-bleaching agent. We characterized a xylanase from Bacillus amyloliquefaciens strain SK-3 and studied it for kraft pulp bleaching. The purified enzyme had a molecular weight of ~50 kDa with optimal activity at pH 9.0 and 50 °C. The enzyme showed good activity retention (85%) after 2 h incubation at 50 °C and pH 9.0. This enzyme obeyed Michaelis-Menten kinetics with regard to beechwood xylan with K and V values of 5.6 mg/ml, 433 μM/min/mg proteins, respectively. The enzyme activity was stimulated by Mn, Ca and Fe metal ions. Further, it also showed good tolerance to phenolics (2 mM) in the presence of syringic acid (no loss), cinnamic acid (97%), benzoic acid (94%) and phenol (97%) activity retention. The thermostability of xylanase was increased by 6.5-fold in presence of sorbitol (0.75 M). Further, pulp treated with 20U/g of xylanase (20IU/g) alone and with sorbitol (0.75M) reduced kappa number by 18.3 and 23.8%, respectively after 3 h reaction. In summary, presence of xylanase shows good pulp-bleaching activity, good tolerance to phenolics, lignin and metal ions and is amenable to thermostability improvement by addition of polyols. The SEM image showed significant changes on the surface of xylanase-treated pulp fiber as a result of xylan hydrolysis.
