具有透明质酸屏蔽层的肿瘤微环境双响应核壳纳米颗粒用于阿霉素和质粒DNA的高效共递送
Tumor microenvironment dual-responsive core-shell nanoparticles with hyaluronic acid-shield for efficient co-delivery of doxorubicin and plasmid DNA.
作者信息
Wang Tianqi, Yu Xiaoyue, Han Leiqiang, Liu Tingxian, Liu Yongjun, Zhang Na
机构信息
Department of Pharmaceutics, School of Pharmaceutical Sciences, Shandong University, Jinan, Shandong Province, People's Republic of China.
出版信息
Int J Nanomedicine. 2017 Jul 4;12:4773-4788. doi: 10.2147/IJN.S134378. eCollection 2017.

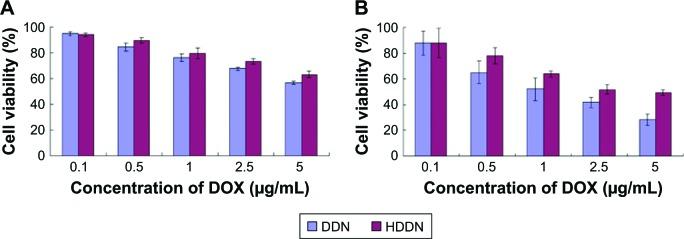

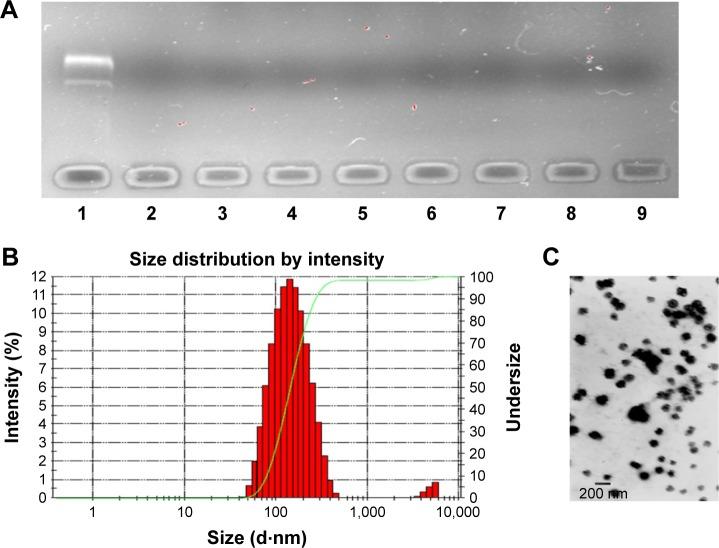

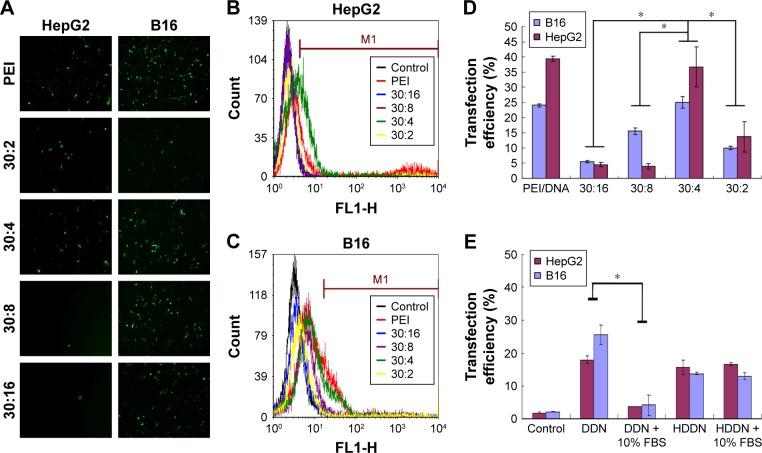

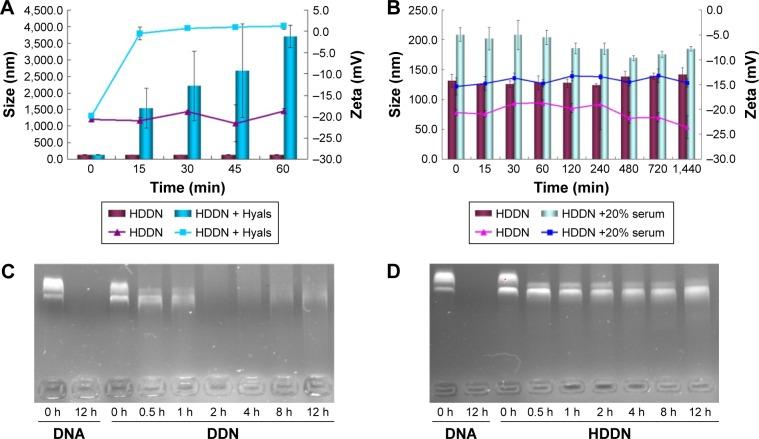

As the tumor microenvironment (TME) develops, it is critical to take the alterations of pH value, reduction and various enzymes of the TME into consideration when constructing the desirable co-delivery systems. Herein, TME pH and enzyme dual-responsive core-shell nanoparticles were prepared for the efficient co-delivery of chemotherapy drug and plasmid DNA (pDNA). A novel pH-responsive, positively charged drug loading material, doxorubicin (DOX)-4-hydrazinobenzoic acid (HBA)-polyethyleneimine (PEI) conjugate (DOX-HBA-PEI, DHP), was synthesized to fabricate positively charged polyion complex inner core DHP/DNA nanoparticles (DDN). Hyaluronic acid (HA) was an enzyme-responsive shell which could protect the core and enhance the co-delivery efficiency through CD44-mediated endocytosis. The HA-shielded pH and enzyme dual-responsive nanoparticles (HDDN) were spherical with narrow distribution. The particle size of HDDN was 148.3±3.88 nm and the zeta potential was changed to negative (-18.1±2.03 mV), which led to decreased cytotoxicity. The cumulative release of DOX from DHP at pH 5.0 (66.4%) was higher than that at pH 7.4 (30.1%), which indicated the pH sensitivity of DHP. The transfection efficiency of HDDN in 10% serum was equal to that in the absence of serum, while the transfection of DDN was significantly decreased in the presence of 10% serum. Furthermore, cellular uptake studies and co-localization assay showed that HDDN were internalized effectively through CD44-mediated endocytosis in the tumor cells. The efficient co-delivery of DOX and pEGFP was confirmed by fluorescent image taken by laser confocal microscope. It can be concluded that TME dual-responsive HA-shielded core-shell nanoparticles could be considered as a promising platform for the co-delivery of chemotherapy drug and pDNA.
随着肿瘤微环境(TME)的发展,在构建理想的共递送系统时,考虑TME的pH值变化、还原作用及各种酶至关重要。在此,制备了TME pH和酶双响应核壳纳米颗粒,用于化疗药物和质粒DNA(pDNA)的高效共递送。合成了一种新型的pH响应性带正电荷的药物负载材料阿霉素(DOX)-4-肼基苯甲酸(HBA)-聚乙烯亚胺(PEI)共轭物(DOX-HBA-PEI,DHP),以制备带正电荷的聚离子复合内核DHP/DNA纳米颗粒(DDN)。透明质酸(HA)是一种酶响应性外壳,可保护内核并通过CD44介导的内吞作用提高共递送效率。HA屏蔽的pH和酶双响应纳米颗粒(HDDN)呈球形,分布狭窄。HDDN的粒径为148.3±3.88 nm,zeta电位变为负值(-18.1±2.03 mV),这导致细胞毒性降低。DHP在pH 5.0时DOX的累积释放率(66.4%)高于pH 7.4时(30.1%),这表明DHP具有pH敏感性。HDDN在10%血清中的转染效率与无血清时相当,而DDN在10%血清存在下的转染显著降低。此外,细胞摄取研究和共定位分析表明,HDDN通过肿瘤细胞中CD44介导的内吞作用有效内化。激光共聚焦显微镜拍摄的荧光图像证实了DOX和pEGFP的高效共递送。可以得出结论,TME双响应HA屏蔽核壳纳米颗粒可被视为化疗药物和pDNA共递送的有前景的平台。
