Mechanical Properties of Auxetic Cellular Material Consisting of Re-Entrant Hexagonal Honeycombs.

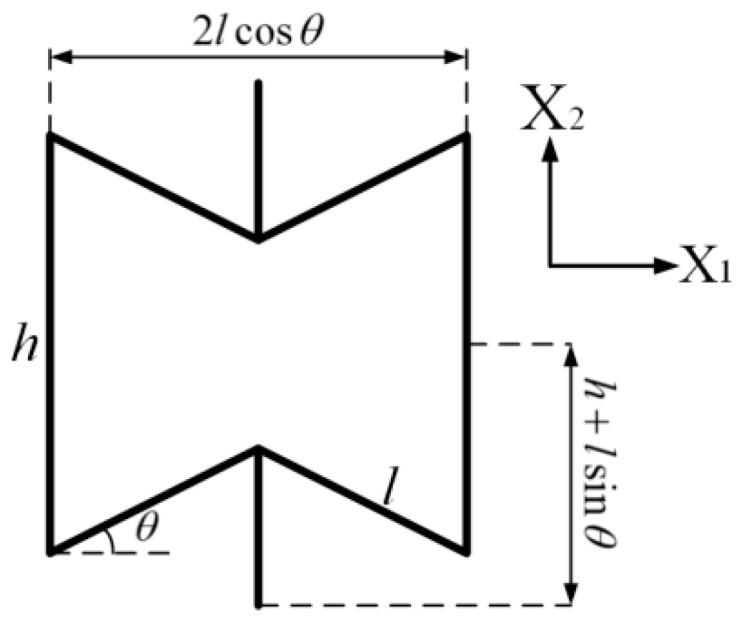

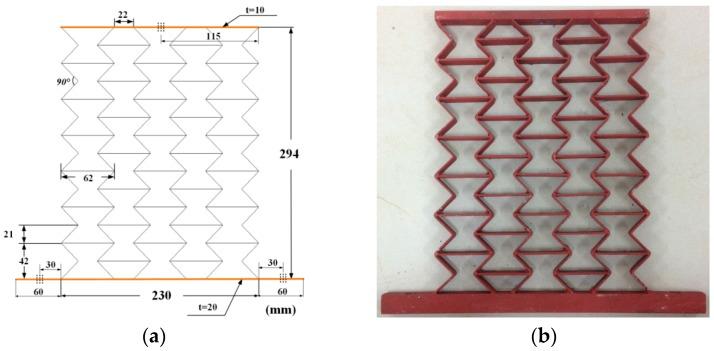

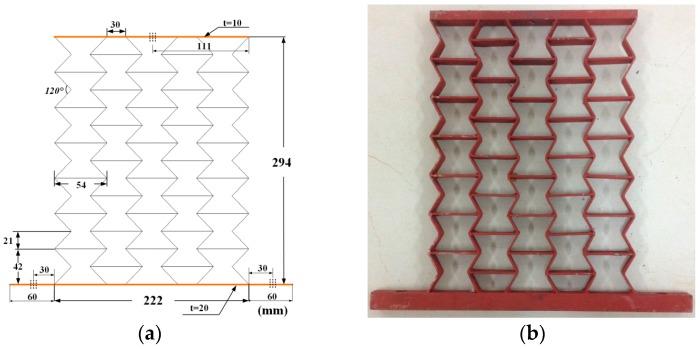

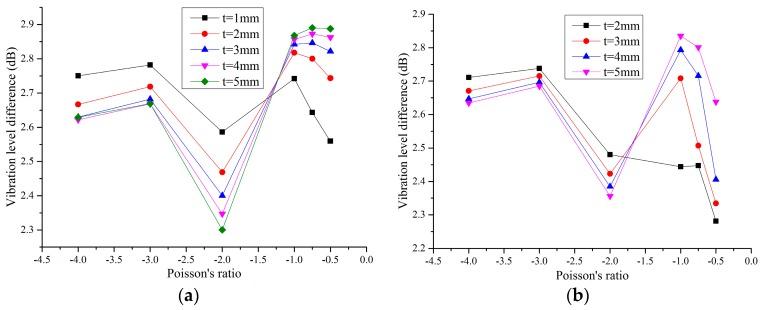

A preliminary study of the mechanical properties of auxetic cellular material consisting of re-entrant hexagonal honeycombs is presented. For different scales of the honeycombs, the finite element method (FEM) and experimental models are used to perform a parametric analysis on the effects of the Poisson's ratio (cell angle) and the relative density (cell thickness) of honeycombs on bearing capacity and dynamic performance of the auxetic material. The analysis demonstrates that the ultimate bearing capacity of the presented auxetic cellular material is scale-independent when the Poisson's ratio and the relative density are kept constant. The relationship between the geometric parameters and vibration level difference of the honeycombs is also revealed, which can be divided into two converse parts around the Poisson's ratio v = - 1.5 . When v is smaller than -1.5, increasing the cell thickness leads to an increase in the vibration level difference of the honeycombs. Moreover, the dynamic performance of thin-walled honeycombs is greatly influenced by the scale of the honeycombs, especially for the ones with small Poisson's ratio. These conclusions are verified by a frequency response test and a good agreement between the numerical results and experimental data is achieved.
