基于概率方法的碳纤维增强复合材料冲击损伤的线性和非线性导波成像

Linear and Nonlinear Guided Wave Imaging of Impact Damage in CFRP Using a Probabilistic Approach.

作者信息

Hettler Jan, Tabatabaeipour Morteza, Delrue Steven, Van Den Abeele Koen

机构信息

Group Wave Propagation and Signal Processing, KU Leuven Kulak, Etienne Sabbelaan 53, 8500 Kortrijk, Belgium.

出版信息

Materials (Basel). 2016 Nov 7;9(11):901. doi: 10.3390/ma9110901.

DOI:10.3390/ma9110901
PMID:28774022
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC5457249/
Abstract

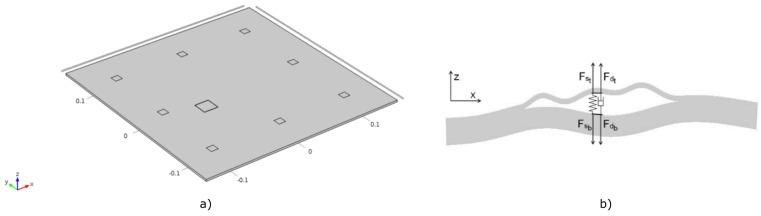

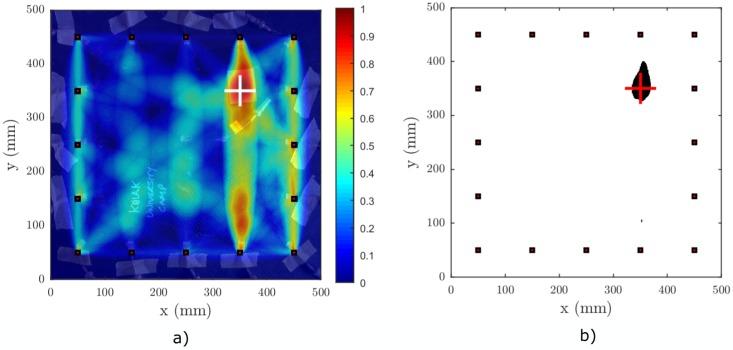

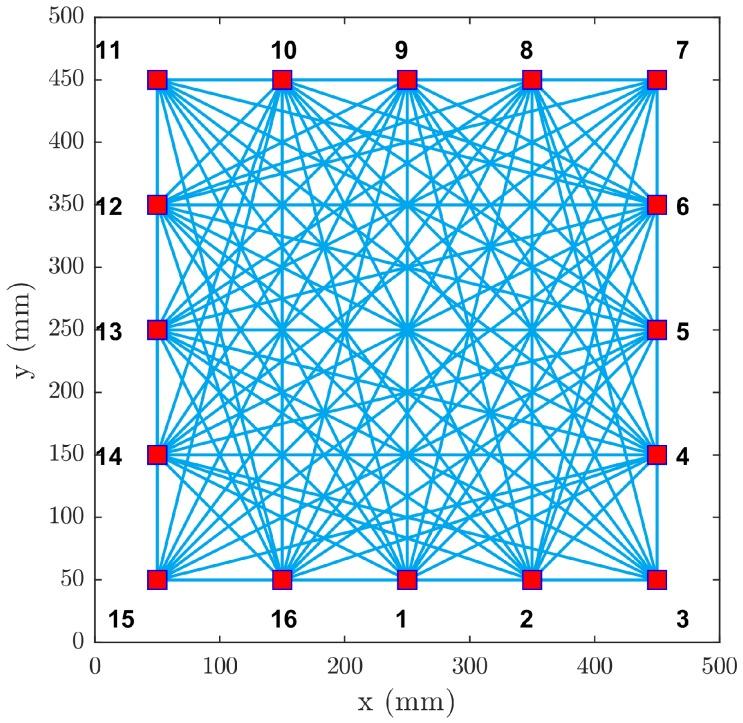

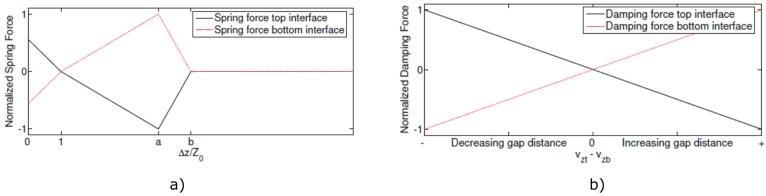

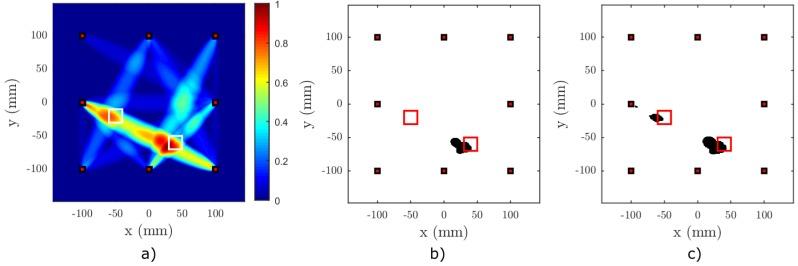

The amount and variety of composite structures that need to be inspected for the presence of impact damage has grown significantly in the last few decades. In this paper, an application of a probabilistic ultrasonic guided wave imaging technique for impact damage detection in carbon fiber-reinforced polymers (CFRP) is presented. On the one hand, a linear, baseline-dependent, technique utilizing the well-known correlation-based RAPID method and an array of piezoelectric transducers is applied to detect impact-induced damage in plate-like composite structures. Furthermore, a baseline-independent nonlinear extension of the standard RAPID method is proposed, and its performance is demonstrated both numerically and experimentally. Compared to the conventional RAPID, the baseline-free version suffers from a somewhat lower imaging quality. However, this drawback is compensated by the fact that no damage-free (intact) baseline is necessary for successful imaging of damage.

摘要

在过去几十年中，需要检查是否存在冲击损伤的复合材料结构的数量和种类显著增加。本文介绍了一种概率超声导波成像技术在碳纤维增强聚合物（CFRP）冲击损伤检测中的应用。一方面，采用一种基于线性、依赖基线的技术，利用著名的基于相关性的RAPID方法和一系列压电换能器来检测板状复合材料结构中的冲击损伤。此外，还提出了标准RAPID方法的一种与基线无关的非线性扩展，并通过数值和实验证明了其性能。与传统的RAPID相比，无基线版本的成像质量略低。然而，成功成像损伤不需要无损（完整）基线这一事实弥补了这一缺点。
