Cao Rensheng, Fan Mingyi, Hu Jiwei, Ruan Wenqian, Xiong Kangning, Wei Xionghui
Guizhou Provincial Key Laboratory for Information Systems of Mountainous Areas and Protection of Ecological Environment, Guizhou Normal University, Guiyang 550001, China.
Cultivation Base of Guizhou National Key Laboratory of Mountainous Karst Eco-Environment, Guizhou Normal University, Guiyang 550001, China.
Materials (Basel). 2017 Nov 7;10(11):1279. doi: 10.3390/ma10111279.

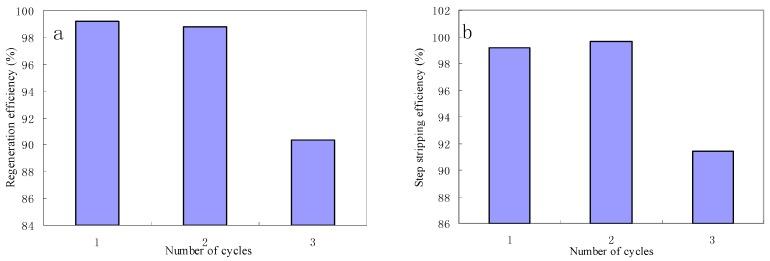

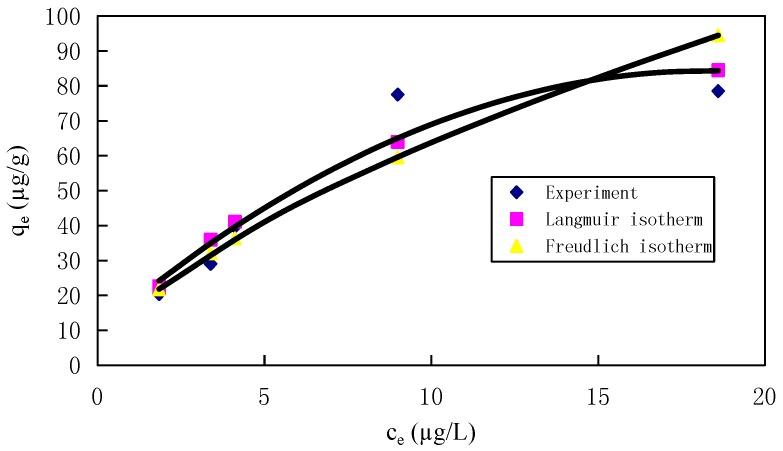

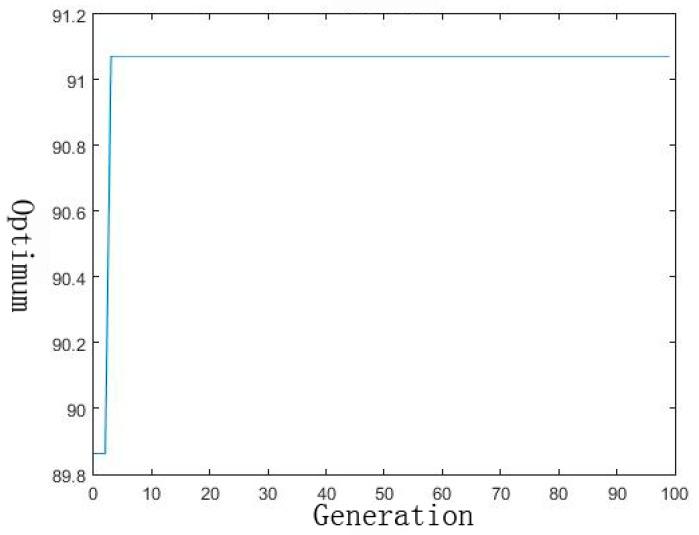

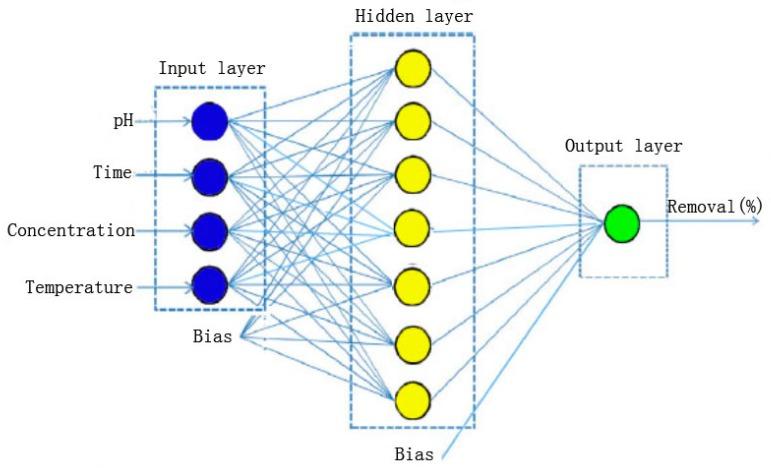

Reduced graphene oxide-supported Fe₃O₄ (Fe₃O₄/rGO) composites were applied in this study to remove low-concentration mercury from aqueous solutions with the aid of an artificial neural network (ANN) modeling and genetic algorithm (GA) optimization. The Fe₃O₄/rGO composites were prepared by the solvothermal method and characterized by X-ray diffraction (XRD), transmission electron microscopy (TEM), atomic force microscopy (AFM), N₂-sorption, X-ray photoelectron spectroscopy (XPS), Fourier transform infrared spectroscopy (FTIR) and superconduction quantum interference device (SQUID). Response surface methodology (RSM) and ANN were employed to model the effects of different operating conditions (temperature, initial pH, initial Hg ion concentration and contact time) on the removal of the low-concentration mercury from aqueous solutions by the Fe₃O₄/rGO composites. The ANN-GA model results (with a prediction error below 5%) show better agreement with the experimental data than the RSM model results (with a prediction error below 10%). The removal process of the low-concentration mercury obeyed the Freudlich isotherm and the pseudo-second-order kinetic model. In addition, a regeneration experiment of the Fe₃O₄/rGO composites demonstrated that these composites can be reused for the removal of low-concentration mercury from aqueous solutions.
本研究应用还原氧化石墨烯负载的Fe₃O₄(Fe₃O₄/rGO)复合材料,借助人工神经网络(ANN)建模和遗传算法(GA)优化从水溶液中去除低浓度汞。采用溶剂热法制备Fe₃O₄/rGO复合材料,并通过X射线衍射(XRD)、透射电子显微镜(TEM)、原子力显微镜(AFM)、N₂吸附、X射线光电子能谱(XPS)、傅里叶变换红外光谱(FTIR)和超导量子干涉装置(SQUID)对其进行表征。采用响应面法(RSM)和人工神经网络对不同操作条件(温度、初始pH值、初始汞离子浓度和接触时间)对Fe₃O₄/rGO复合材料从水溶液中去除低浓度汞的影响进行建模。人工神经网络-遗传算法模型结果(预测误差低于5%)与实验数据的吻合度优于响应面法模型结果(预测误差低于10%)。低浓度汞的去除过程符合Freundlich等温线和准二级动力学模型。此外,Fe₃O₄/rGO复合材料的再生实验表明,这些复合材料可重复用于从水溶液中去除低浓度汞。
