Cheng Gang, So Gary Kwok-Ming, To Wai-Pong, Chen Yong, Kwok Chi-Chung, Ma Chensheng, Guan Xiangguo, Chang Xiaoyong, Kwok Wai-Ming, Che Chi-Ming
State Key Laboratory of Synthetic Chemistry , HKU-CAS Joint Laboratory on New Materials, and Department of Chemistry , The University of Hong Kong , Pokfulam Road , Hong Kong SAR , China . Email:
HKU Shenzhen Institute of Research and Innovation , Shenzhen 518053 , China.
Chem Sci. 2015 Aug 1;6(8):4623-4635. doi: 10.1039/c4sc03161j. Epub 2015 Jun 2.

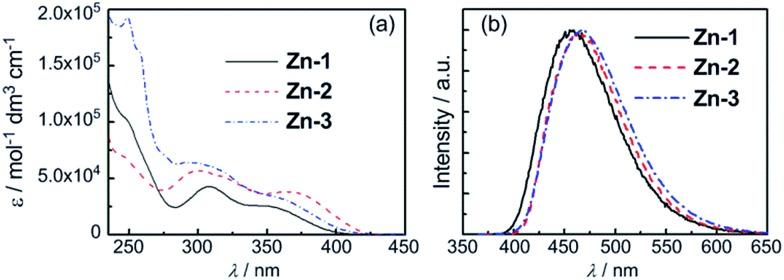

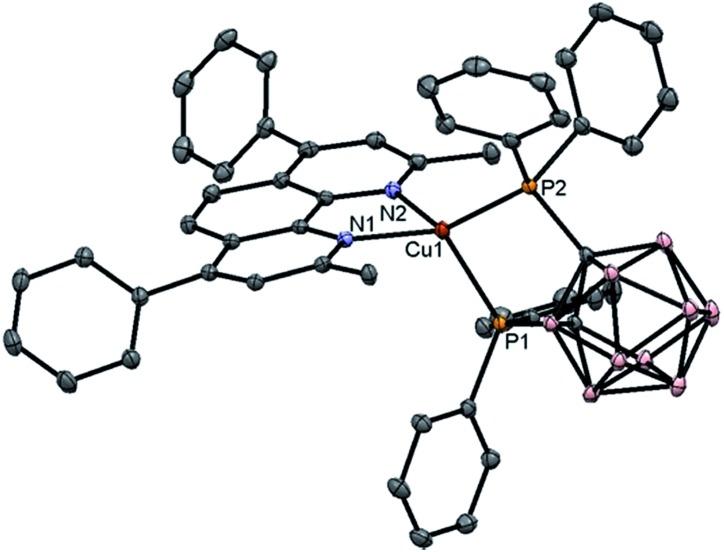

The synthesis and spectroscopic properties of luminescent tetranuclear zinc(ii) complexes of substituted 7-azaindoles and a series of luminescent copper(i) complexes containing 7,8-bis(diphenylphosphino)-7,8-dicarba--undecaborate ligand are described. These complexes are stable towards air and moisture. Thin film samples of the luminescent copper(i) complexes in 2,6-dicarbazolo-1,5-pyridine and zinc(ii) complexes in poly(methyl methacrylate) showed emission quantum yields of up to 0.60 (for ) and 0.96 (for ), respectively. Their photophysical properties were examined by ultrafast time-resolved emission spectroscopy, temperature dependent emission lifetime measurements and density functional theory calculations. Monochromic blue and orange solution-processed OLEDs with these Zn(ii) and Cu(i) complexes as light-emitting dopants have been fabricated, respectively. Maximum external quantum efficiency (EQE) of 5.55% and Commission Internationale de l'Eclairage (CIE) coordinates of (0.16, 0.19) were accomplished with the optimized -OLED while these values were, respectively 15.64% and (0.48, 0.51) for the optimized -OLED. Solution-processed white OLEDs having maximum EQE of 6.88%, CIE coordinates of (0.42, 0.44), and colour rendering index of 81 were fabricated by using these luminescent Zn(ii) and Cu(i) complexes as blue and orange light-emitting dopant materials, respectively.
描述了取代7-氮杂吲哚的发光四核锌(II)配合物以及一系列含有7,8-双(二苯基膦基)-7,8-二碳硼烷配体的发光铜(I)配合物的合成及光谱性质。这些配合物对空气和湿气稳定。2,6-二咔唑并-1,5-吡啶中发光铜(I)配合物和聚甲基丙烯酸甲酯中锌(II)配合物的薄膜样品的发射量子产率分别高达0.60(对于……)和0.96(对于……)。通过超快时间分辨发射光谱、温度依赖发射寿命测量和密度泛函理论计算研究了它们的光物理性质。分别制备了以这些Zn(II)和Cu(I)配合物作为发光掺杂剂的单色蓝色和橙色溶液处理有机发光二极管。优化后的……有机发光二极管实现了5.55%的最大外量子效率(EQE)和(0.16, 0.19)的国际照明委员会(CIE)坐标,而优化后的……有机发光二极管的这些值分别为15.64%和(0.48, 0.51)。通过分别使用这些发光Zn(II)和Cu(I)配合物作为蓝色和橙色发光掺杂剂材料,制备了最大EQE为6.88%、CIE坐标为(0.42, 0.44)且显色指数为81的溶液处理白色有机发光二极管。
